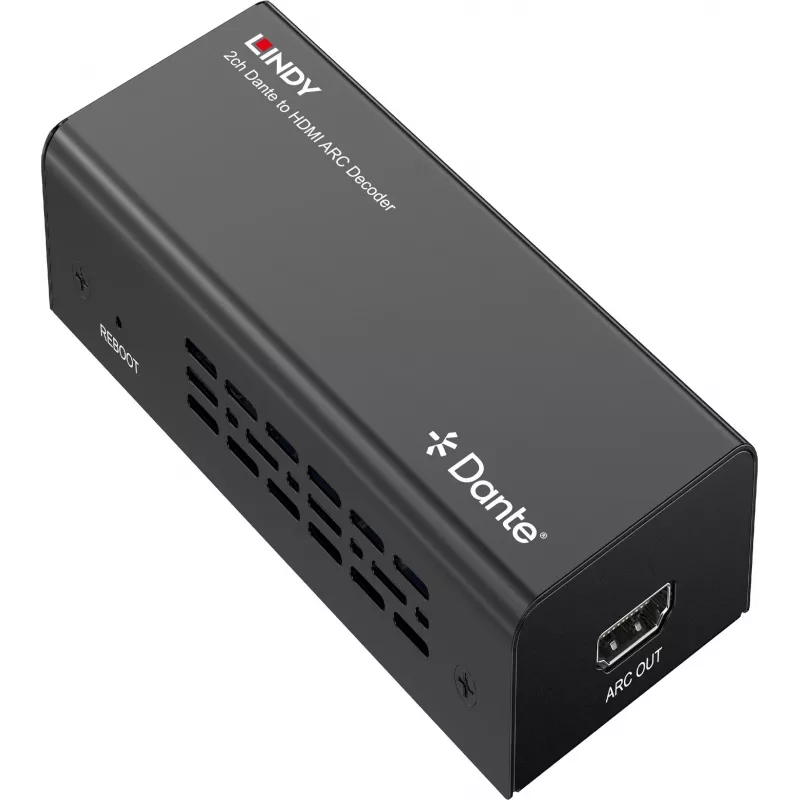

Lindy 2ch Dante naar HDMI ARC decoder

Integrating Dante network audio with HDMI ARC-equipped displays often requires complex workarounds. The Lindy 2ch Dante to HDMI ARC Decoder bridges this gap, enabling seamless bidirectional conversion between 2-channel Dante audio and HDMI ARC signals. This compact unit allows audio from a Dante network to be played through a TV's speakers or soundbar via HDMI ARC, and conversely extracts audio from an HDMI ARC source (like a smart TV) and injects it into a Dante network. Ideal for commercial AV installations, conference rooms, and home theaters where Dante and HDMI ecosystems coexist.

Who is it for

AV integrators, system designers, and tech-savvy users who need to connect Dante-enabled audio systems with HDMI ARC-capable displays or sources. It's perfect for distributed audio in bars, restaurants, corporate spaces, and residential setups where a TV's built-in apps or connected sources need to be heard over a Dante speaker system, or where Dante audio needs to be played through a TV's soundbar.

Main features

• Bidirectional conversion: Dante (2ch) to HDMI ARC and HDMI ARC to Dante (2ch)
• Supports Dante sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
• HDMI ARC passthrough for Dolby Digital and DTS; PCM up to 96kHz
• Dante Domain Manager (DDM) ready and AES67 compatible for flexible network integration
• PoE (Power over Ethernet) or 5V DC via Micro-B USB for flexible power options
• DIP switches for EDID/ARC control and LED indicators for status monitoring
• Robust metal housing suitable for professional installations

Specifications

• Audio Input (Dante): 2-channel Dante network audio

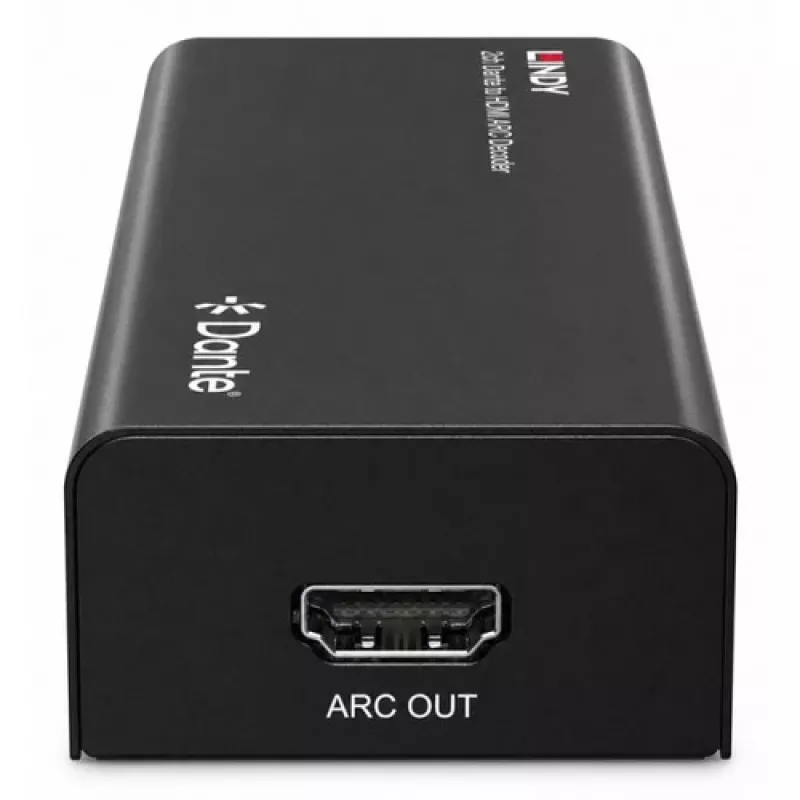

• Audio Output (HDMI): HDMI ARC (Audio Return Channel)
• Audio Input (HDMI): HDMI ARC (for extraction to Dante)
• Audio Output (Dante): 2-channel Dante network audio (from HDMI ARC)
• HDMI Version: HDMI 1.4 (for ARC functionality)

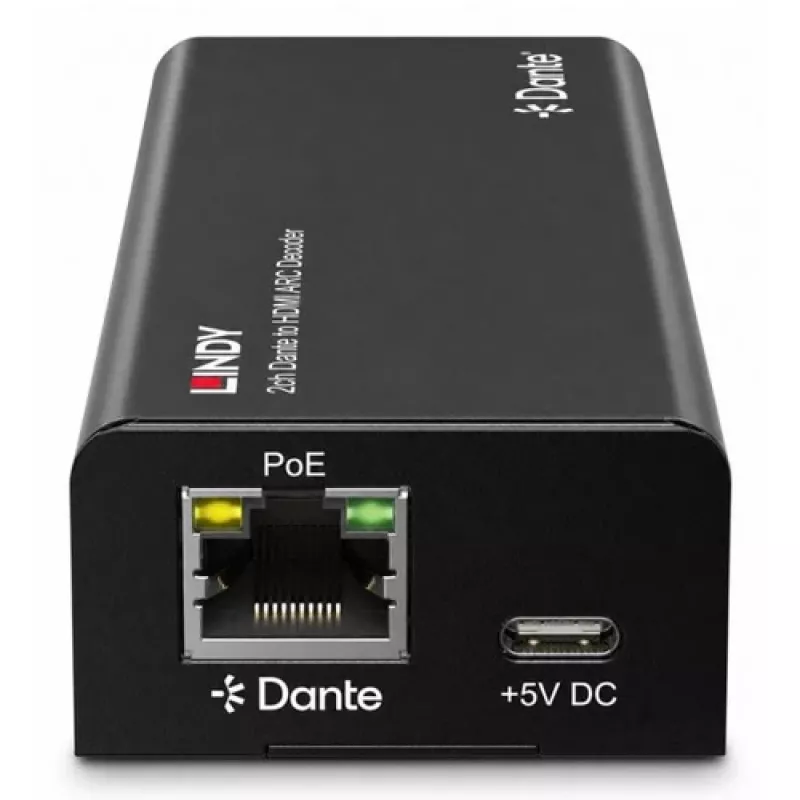

• Network Interface: 1x RJ45 Gigabit Ethernet (PoE)
• Power Supply: PoE or 5V DC / 1A (via Micro-B USB)
• Control Methods: DIP switches for EDID/ARC control, Dante Controller software
• Housing Material: Metal
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Max Ethernet Cable Length: 100m (Cat.5e/6)
• Max HDMI Cable Length: 15m (input to TV)
• Power Consumption: < 2.5W
• LED Indicators: Power, Link/Activity, ARC Status

Tips

For optimal performance, use shielded Cat.6 cables for Dante connections and high-quality HDMI cables no longer than 15 meters. Configure the DIP switches according to your ARC and EDID requirements before installation. The unit can be powered via PoE from a compatible network switch, reducing cable clutter. Use Dante Controller software to route audio and monitor device status. Ensure your HDMI display supports ARC and that ARC is enabled in its settings.
