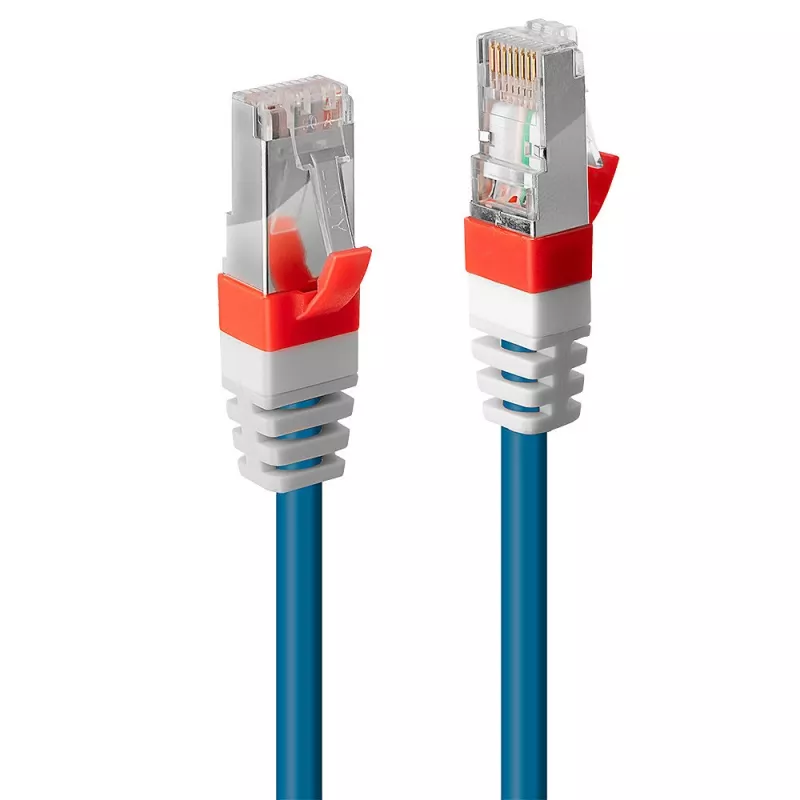

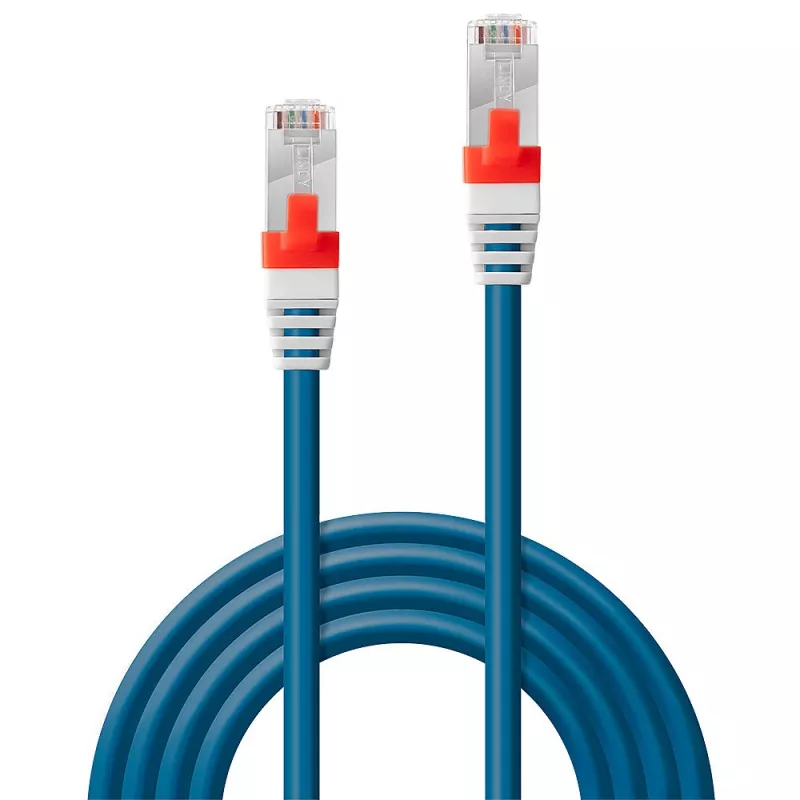

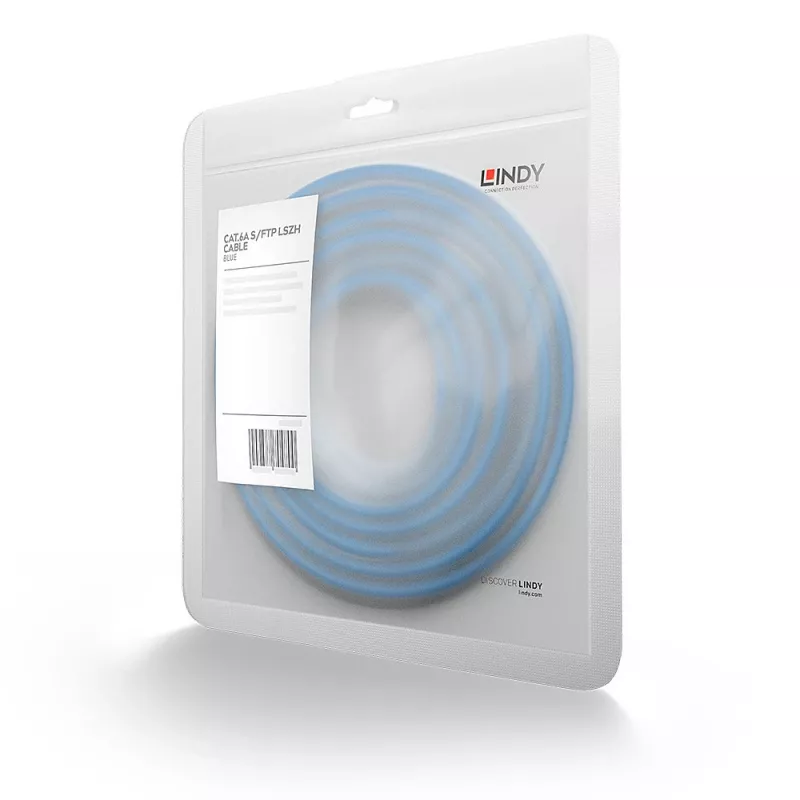

Lindy 45376 netwerkkabel blauw 3 m Cat6a S/FTP (S-STP)

Cat.6A S/FTP networking cable, 3 m length, equipped with RJ-45 connectors on both ends and a blue LSZH jacket. The cable is shielded with an overall braid and foil around each pair (S/FTP) and is manufactured and tested to ISO/IEC 11801. It supports Ethernet up to 10GBase-T with an operating frequency of up to 500 MHz and is packaged individually in a polybag.

Advantages

The Lindy Cat.6 (A) SSTP cable provides support for 10 Gigabit Ethernet and frequencies up to 500 MHz, while the S/FTP construction reduces electromagnetic interference. Gold-plated contacts offer corrosion resistance for long-term reliable connections, and the snagless strain relief protects the connector latch during installation and removal. The halogen-free LSZH sheath limits smoke and toxic halogen emissions, making the cable appropriate for use in public areas.

Suitable for

• High-speed LAN connections up to 10 GBase-T
• Server rooms, data cabinets and office network installations
• Environments requiring low electromagnetic interference and improved shielding
• Public spaces and installations where low smoke and halogen-free materials are required

Key specifications

• Cable category: Cat.6A (S/FTP)
• Length: 3 m
• Connectors: RJ-45 to RJ-45
• Bandwidth / Frequency: up to 500 MHz
• Ethernet standard: up to 10GBase-T
• Shielding: overall braid + foil on individual pairs (S/FTP)
• Contacts: gold-plated
• Sheath material: LSZH (halogen-free)
• Standards: manufactured and tested to ISO/IEC 11801
• Colour: Blue

How to use

Connect each RJ-45 connector to the corresponding Ethernet ports on your network devices (switch, router, PC or patch panel). Ensure connectors are fully inserted until the latch clicks and avoid sharp bends near the connectors to preserve signal integrity. For permanent installations, route the cable through cable management systems or trunking compatible with LSZH materials.

Recommendations

For optimal performance, keep cable runs within recommended maximum lengths for 10GBase-T deployments, avoid running parallel to high-voltage power lines, and terminate using compatible RJ-45 ports rated for Cat.6A performance.
