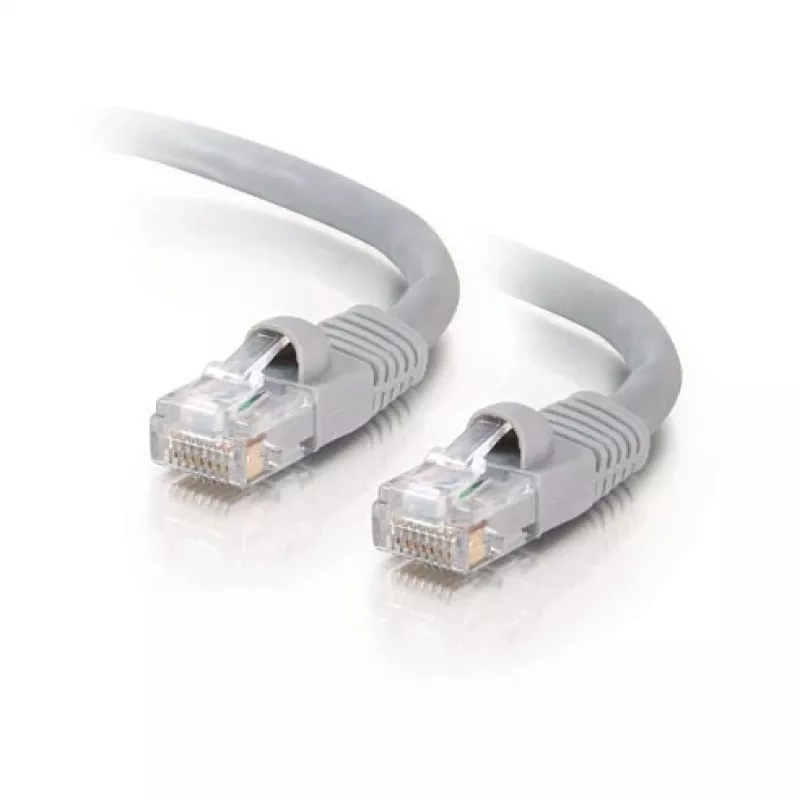

LogiLink Cat.5e S/FTP patchkabel, 1 m, grijs, LSZH, snagless, Gigabit Ethernet

Network reliability often comes down to the smallest component: the patch cable. The LogiLink Cat.5e S/FTP Patch Cable solves the problem of interference and signal loss in dense network environments. With its screened foiled twisted pair (S/FTP) construction and PiMF shielding, each pair is individually wrapped in metal foil, plus an overall braid, ensuring clean signal transmission even near power lines or other cables. This 1-meter grey cable is ideal for connecting computers, switches, routers, and patch panels in offices, server rooms, or home networks where gigabit speeds and stable connections are required.

Who is it for

IT professionals, network administrators, and home users who need a reliable, shielded patch cable for Gigabit Ethernet connections. It is perfect for structured cabling systems, data centers, and any environment with high electromagnetic interference. The LSZH jacket makes it safe for use in public buildings, schools, and hospitals where low smoke and zero halogen emissions are critical.

Main features

• Cat.5e performance with 100 MHz bandwidth, supporting up to 1 Gbps data transfer rates
• S/FTP shielding: overall braid plus individual foil on each twisted pair (PiMF) for superior noise immunity
• Gold-plated RJ45 connectors (50µm) ensure corrosion resistance and reliable contact
• Snagless molded boots protect the locking tab during installation and removal
• LSZH (Low Smoke Zero Halogen) jacket reduces toxic fumes and smoke in case of fire
• Stranded copper conductors

Specifications

• Cable Type: Patch Cable
• Category: Cat.5e (Class D)
• Shielding Type: S/FTP (Screened Foiled Twisted Pair)
• Shielding Detail: PiMF (Pairs in Metal Foil)
• Length: 1.0 m
• Color: Grey
• Connector 1: RJ45 (8P8C) Male
• Connector 2: RJ45 (8P8C) Male
• Conductor Material: Copper (Cu)
• Conductor Gauge: AWG 26/7 (Stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Max Data Transfer Rate: 1 Gbps (Gigabit Ethernet)
• Bandwidth: 100 MHz
• PoE Support: Yes (PoE, PoE+, UPoE compatible)
• Wiring Standard: TIA/EIA 568B
• Boot Type: Molded, Snagless
• Contact Plating: Gold-plated (50µm)
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Tips

For best performance, avoid sharp bends and keep the cable away from high-power electrical lines. Use the snagless boot to safely route through cable management without damaging the locking tab.
