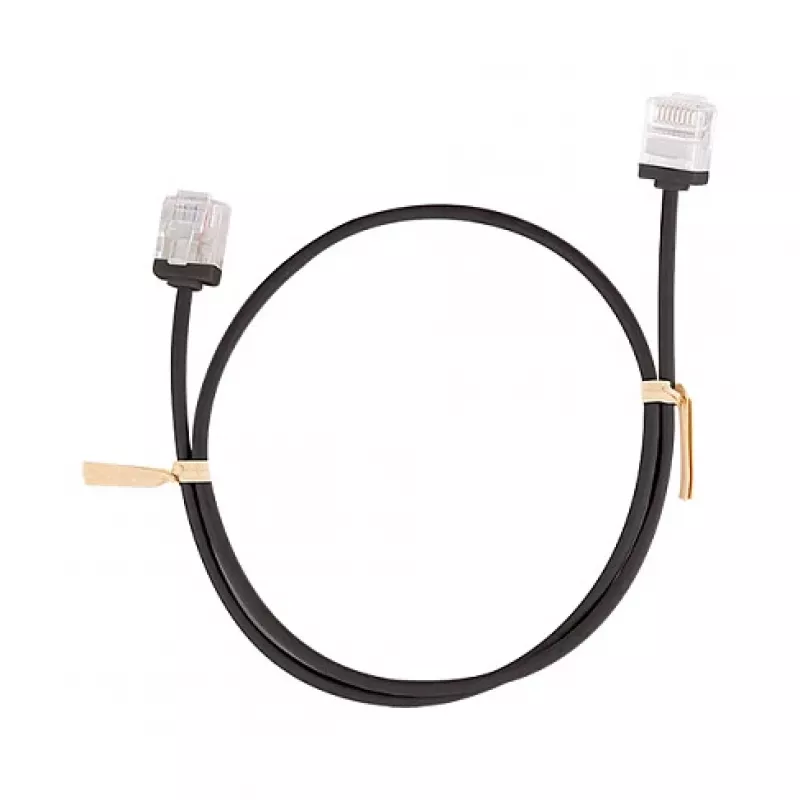

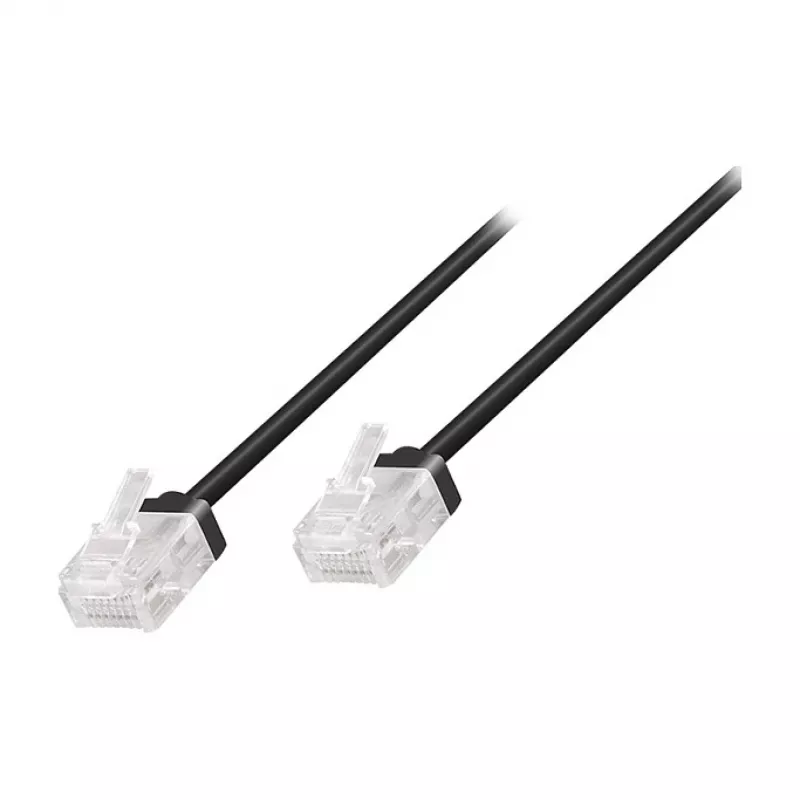

LogiLink Cat.6A U/UTP slim high-flex patchkabel, 3 m, zwart

High-performance Cat.6A patch cable engineered for 10 Gigabit Ethernet in a slim, flexible design. The LogiLink CQ3063U delivers reliable 500 MHz bandwidth with unshielded twisted pair construction, ideal for high-density network environments where space and bend radius matter.

Advantages

The slim 3.8 mm outer diameter and High-Flex jacket allow easy routing in tight spaces, patch panels, and cable management arms. Gold-plated contacts (50µm) ensure low contact resistance and long-term corrosion protection. LSZH jacket reduces toxic smoke and halogen emissions in case of fire, meeting IEC 60332-1. Snagless boots protect the locking tabs during installation and removal.

Suitable for

• Connecting network devices in data centers, server rooms, and office LANs
• 10GBASE-T Ethernet applications up to 30 meters (Cat.6A class EA)
• High-density patch fields where slim cables improve airflow and accessibility
• Environments requiring low smoke zero halogen materials (public buildings, transportation)

Key specifications

• Category: Cat.6A (Class EA), TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Shielding: U/UTP (unshielded twisted pair)
• Length: 3.0 meters
• Conductor: Stranded copper, AWG 28/7
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Wiring: TIA/EIA 568B
• Jacket: LSZH, black, outer diameter approx. 3.8 mm
• Operating temperature: -20°C to +60°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, avoid sharp bends below the minimum bend radius (typically 4x cable diameter). Pair with Cat.6A shielded or unshielded patch panels and equipment. Use in well-ventilated areas to maintain signal integrity at 10 Gbps.
