LogiLink fiber uniboot patchkabel OS2 LC duplex naar LC duplex 0,5m LSZH geel

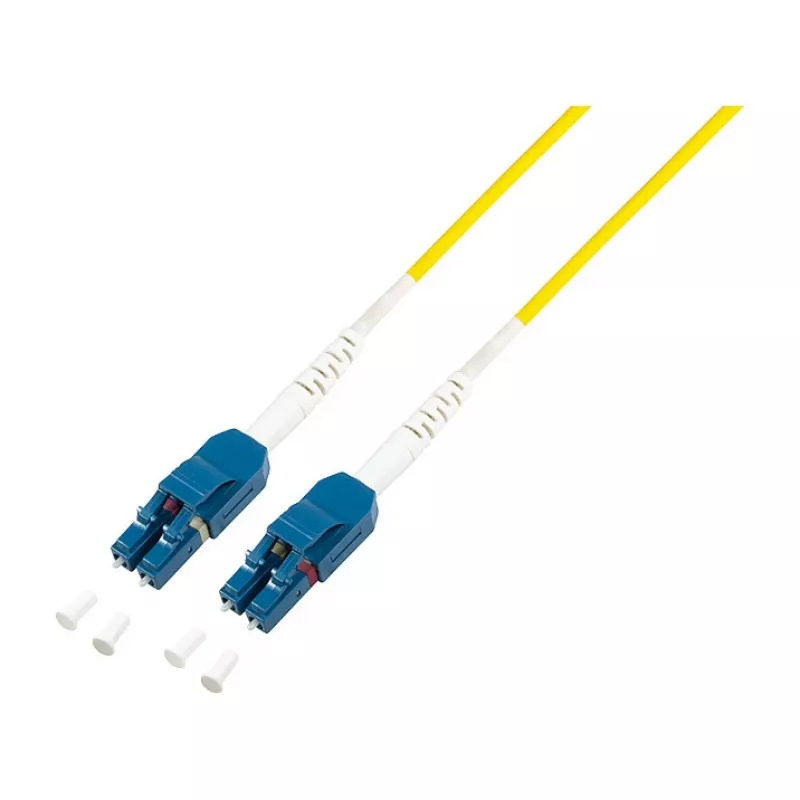

In a data center rack, a technician needs a reliable, space-saving connection between two LC duplex ports on high-density fiber panels. This LogiLink uniboot patch cord delivers exactly that: a single 3.0mm LSZH cable housing two 9/125µm OS2 single-mode fibers, terminated with LC/UPC duplex connectors on both ends. The uniboot design combines both fibers into one boot, reducing cable bulk and simplifying polarity reversal when needed.

Key specifications

• Fiber type: Single-mode OS2 (G.657.A1/A2 bend-insensitive)
• Connectors: LC Duplex (Uniboot) to LC Duplex (Uniboot), UPC polish
• Length: 0.5 m
• Jacket: LSZH (Low Smoke Zero Halogen), yellow
• Cable diameter: 3.0 mm
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 50 dB
• Attenuation: ≤ 0.35 dB/km @ 1310nm, ≤ 0.25 dB/km @ 1550nm
• Minimum bend radius: 10 mm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH, IEC 61754-20, TIA/EIA-604-10

Why choose it

The uniboot construction significantly reduces cable volume compared to traditional duplex zip-cord, easing airflow and cable management in dense fiber installations. The bend-insensitive G.657.A1/A2 fiber allows tight routing without performance degradation, while the LSZH jacket ensures low smoke and toxicity in case of fire. Precision UPC polishing guarantees low insertion loss and high return loss for stable, high-speed links.

Ideal use cases

• High-density data center fiber patching
• Telecom central offices and headends
• Enterprise backbone connections
• FTTx and access network terminations

Good to know

This patch cord is factory-terminated and tested to meet strict optical performance standards. The uniboot design allows easy polarity reversal by swapping the connector positions without special tools. The yellow jacket is standard for single-mode fiber, aiding quick identification in mixed environments.
