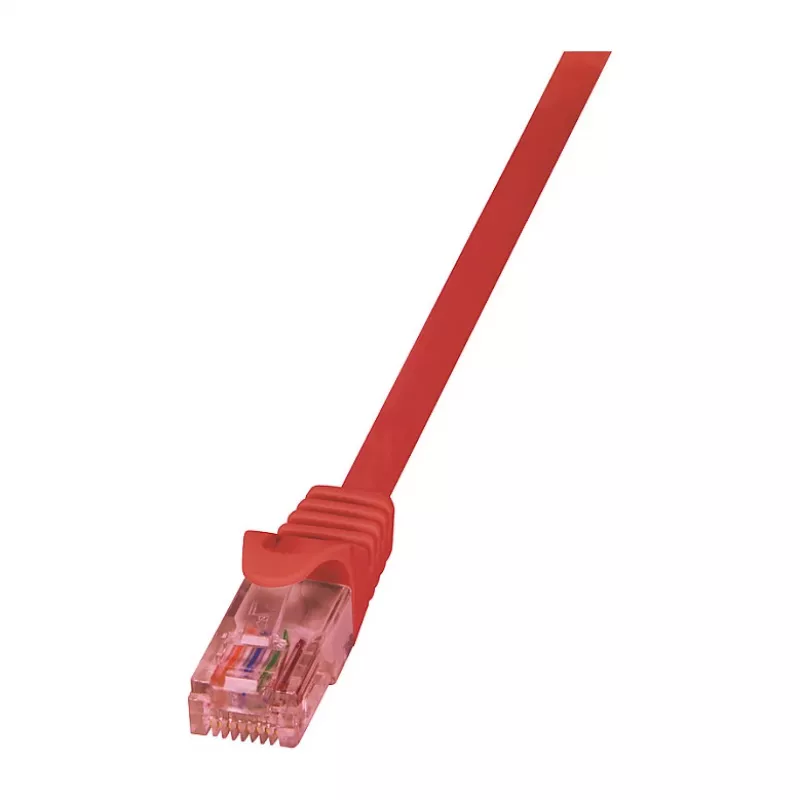

LogiLink PrimeLine Cat.6 U/UTP patchkabel, koper, rood, 5m

For network installations where signal integrity and durability are non-negotiable, this LogiLink PrimeLine Cat.6 patch cable delivers a dependable 5-meter link with bare copper conductors and gold-plated contacts. Unlike budget cables that use copper-clad aluminium, the stranded BC design ensures consistent performance for Gigabit Ethernet, while the slim unshielded construction remains flexible enough for tight cable management.

Highlights

• Cat.6 performance with up to 250 MHz bandwidth for 10/100/1000Base-T networks
• Bare copper stranded conductors (AWG 26/7) for reliable signal transmission and easy routing
• Gold-plated RJ45 connectors (50µ) resist corrosion and maintain a clean contact
• U/UTP unshielded design reduces weight and cost while supporting Gigabit speeds
• Red PVC jacket for quick identification in crowded patch panels or racks

In daily use

This 5-meter patch cable is ideal for connecting workstations, access points, IP cameras, or patch panels where a neat, colour-coded link is required. The stranded conductors handle frequent bending and re-routing without breaking, and the snagless boot protects the locking tab when pulling through cable managers. The 1:1 straight-through wiring (TIA/EIA 568B) means it works out of the box with any standard Ethernet port.

Full specifications

• Brand: LogiLink
• Model: CQ2074U
• MPN: CQ2074U
• EAN: 4052792023022
• Cable type: Cat.6 U/UTP patch cable
• Length: 5.0 m
• Colour: Red
• Connector type: RJ45 (8P8C) male to RJ45 (8P8C) male
• Connector plating: Gold-plated (50µ)
• Conductor material: Bare copper (BC)
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: PVC
• Wiring standard: TIA/EIA 568B, 1:1 straight-through
• Bandwidth: Up to 250 MHz
• Data transfer rate: Supports Gigabit Ethernet (10/100/1000Base-T)
• Backward compatible with Cat.5e and Cat.5
• Series: PrimeLine
• Compliance: RoHS, REACH

Final note

Choose the LogiLink PrimeLine Cat.6 patch cable when you need a reliable, high-performance link without the bulk of shielded cable. Its bare copper construction and gold-plated contacts ensure long-term stability for your network.
