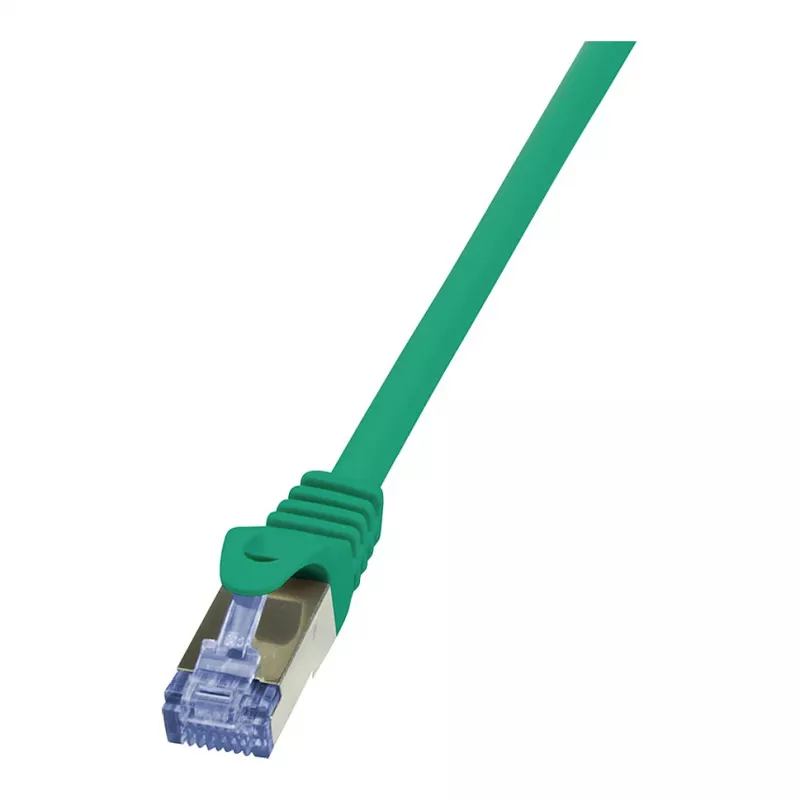

LogiLink PrimeLine Cat.6A S/FTP patchkabel, 1m, groen

In high-density network environments, electromagnetic interference and crosstalk can degrade signal integrity, causing slow speeds and dropped connections. This LogiLink PrimeLine Cat.6A S/FTP patch cable eliminates those issues with double shielding: each twisted pair is individually wrapped in metal foil, and the entire bundle is protected by an overall braid. The result is a reliable 10-Gigabit link up to 500 MHz, perfect for data centers, server rooms, and professional AV installations.

Who is it for

Network administrators, IT professionals, and advanced home users who demand maximum performance and stability from their cabling. It is ideal for connecting servers, switches, patch panels, and high-bandwidth workstations in environments with heavy electromagnetic noise.

Main features

• Cat.6A performance with 10 Gbps data transfer rate and 500 MHz bandwidth
• S/FTP shielding: foil around each pair plus overall braid for superior noise immunity
• Stranded 26 AWG copper conductors for flexibility and durability
• LSZH jacket: low smoke, zero halogen for safety in enclosed spaces
• Gold-plated RJ45 connectors (50 µm) with snagless molded boots
• 1-meter length, ideal for patching between adjacent equipment

Specifications

• Cable category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Conductor: Stranded copper, 26 AWG (7 strands)
• Jacket material: LSZH
• Outer diameter: approx. 6.2 mm
• Connectors: RJ45 male to RJ45 male, shielded, gold-plated contacts
• Wiring standard: TIA/EIA 568B
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-10
• Operating temperature: -20°C to 60°C
• Colour: Green

Tips

For best performance, avoid sharp bends and do not exceed the minimum bend radius of four times the cable diameter. Use cable ties or Velcro straps to manage slack without kinking. When installing in plenum spaces, verify that LSZH is acceptable for your local fire codes.
