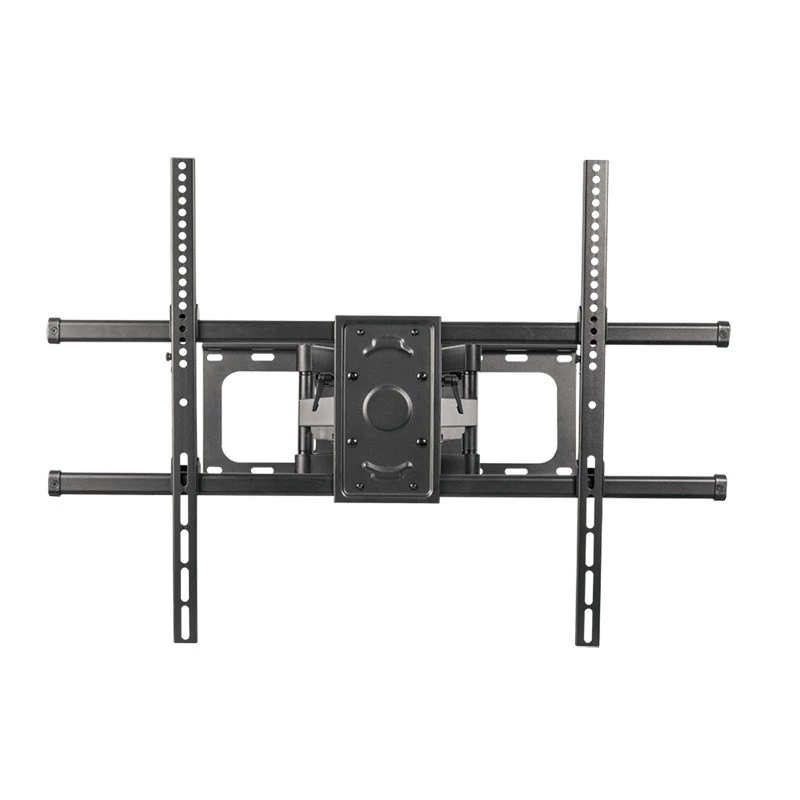

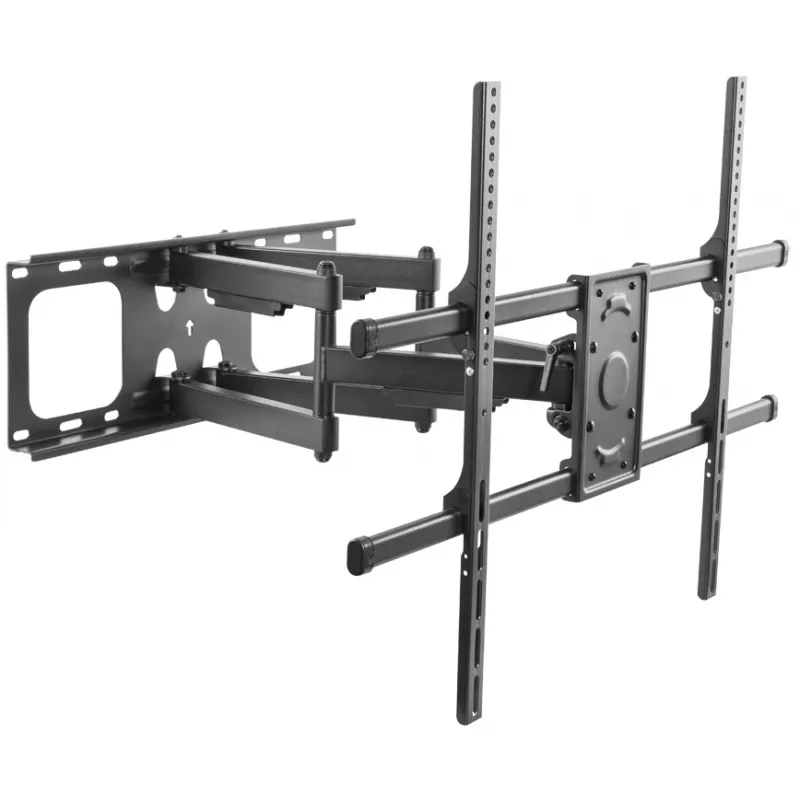

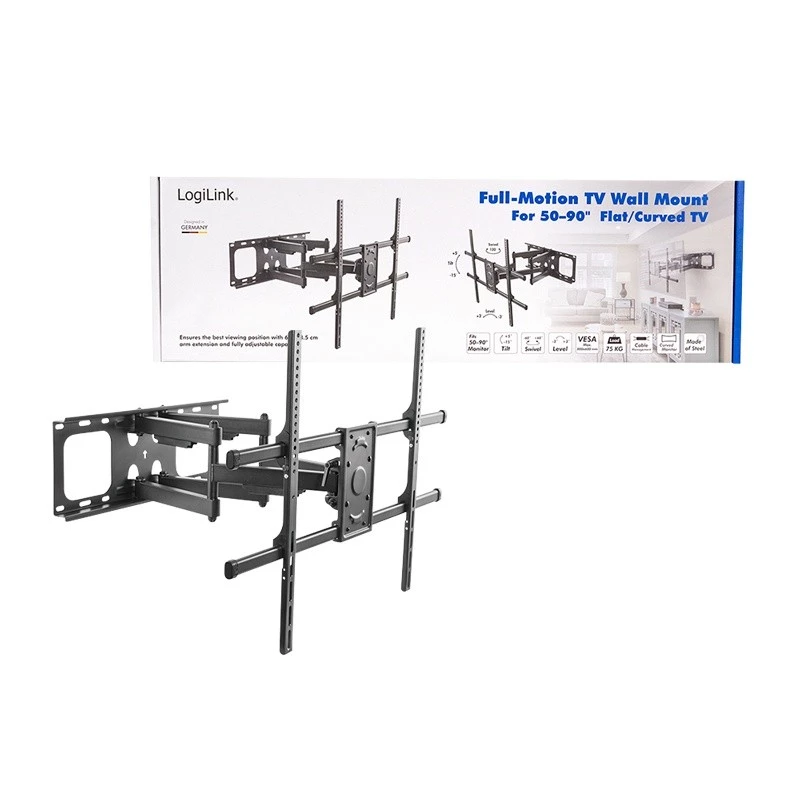

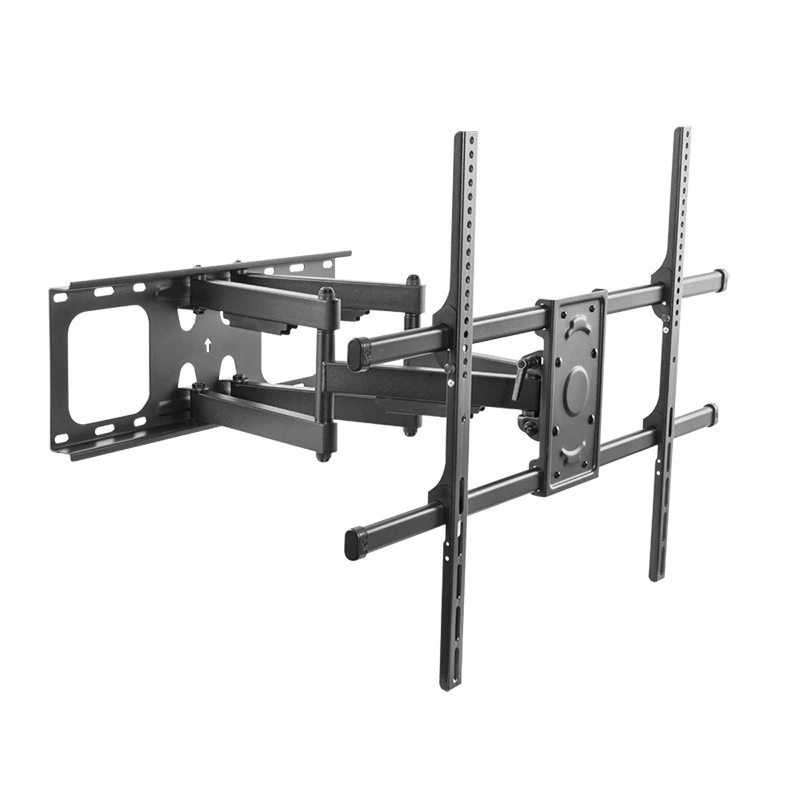

LogiLink tv-muurbeugel 50–90 inch kantel- en draaibaar tot 75 kg

The LogiLink TV wall mount 50–90 tilt swivel 75 kg max is a versatile mounting solution for screens from 50 to 90 inches, supporting up to 75 kg. It offers a compact distance to the wall of 6.9 cm and can extend out to 63.5 cm. The bracket supports VESA patterns from 200 x 200 mm up to 800 x 600 mm and comes in a black finish suitable for home or office environments.

Advantages

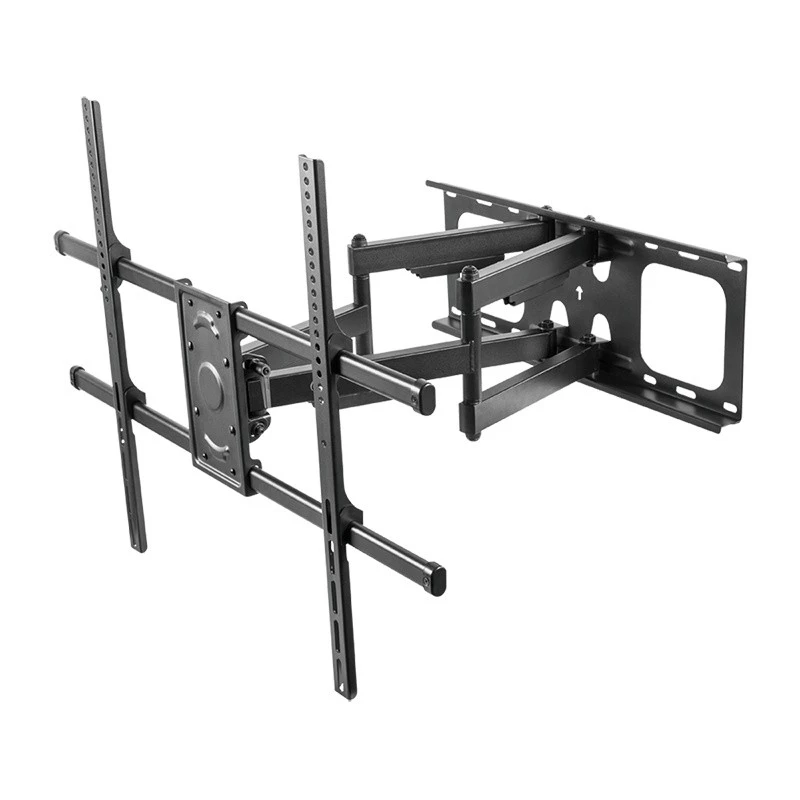

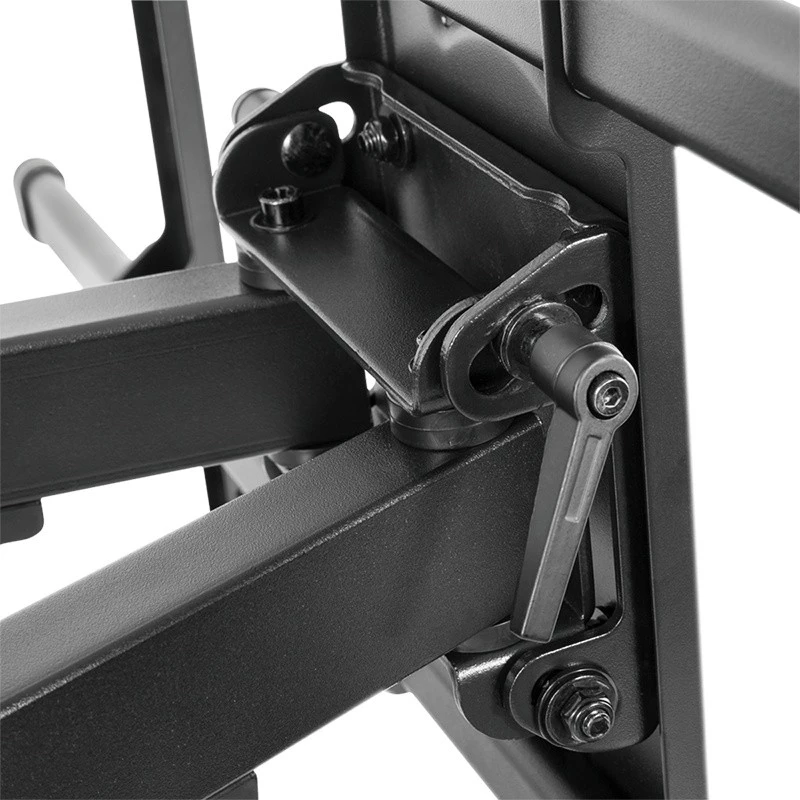

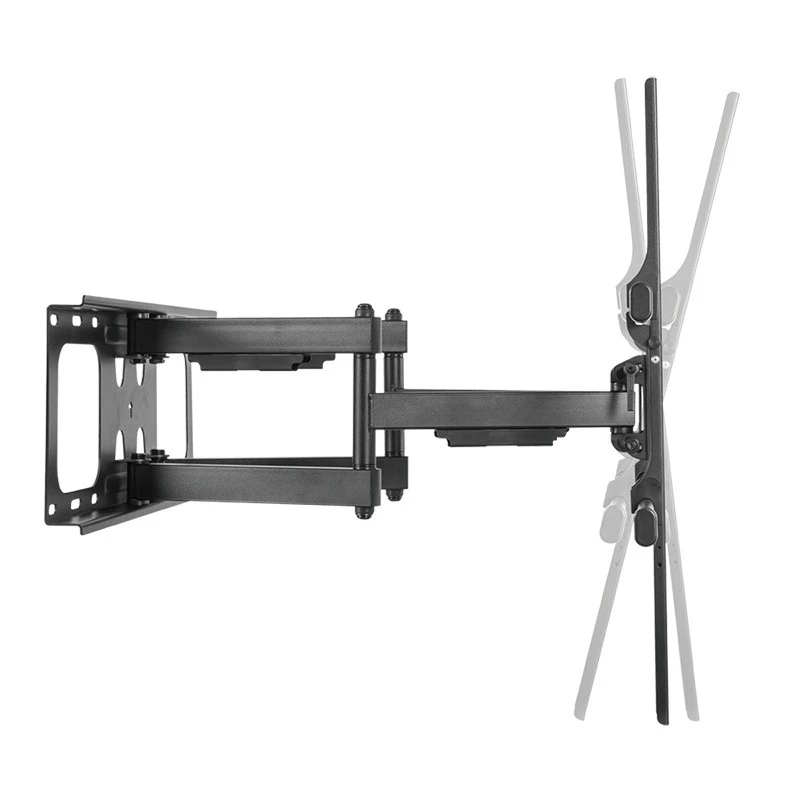

The mount provides tilt adjustment from -15° to 5° and swivel range from -60° to 60°, enabling precise positioning of the display. Fully movable screen mounts and an additional arm extension allow panning and tilting to achieve optimal viewing angles. Quick-release fasteners make installation and removal of the monitor straightforward, while the design balances functionality, build quality and value.

Suitable for (tasks / use cases)

• Mounting 50–90" TVs and large monitors
• Home living rooms and media centres
• Office meeting rooms and presentation areas
• Situations requiring adjustable tilt and swivel for viewing comfort

Key specifications

• Maximum screen size: 90"
• Maximum weight capacity: 75 kg
• VESA compatibility: 200 x 200 mm up to 800 x 600 mm
• Tilt range: -15° to 5°
• Swivel range: -60° to 60°

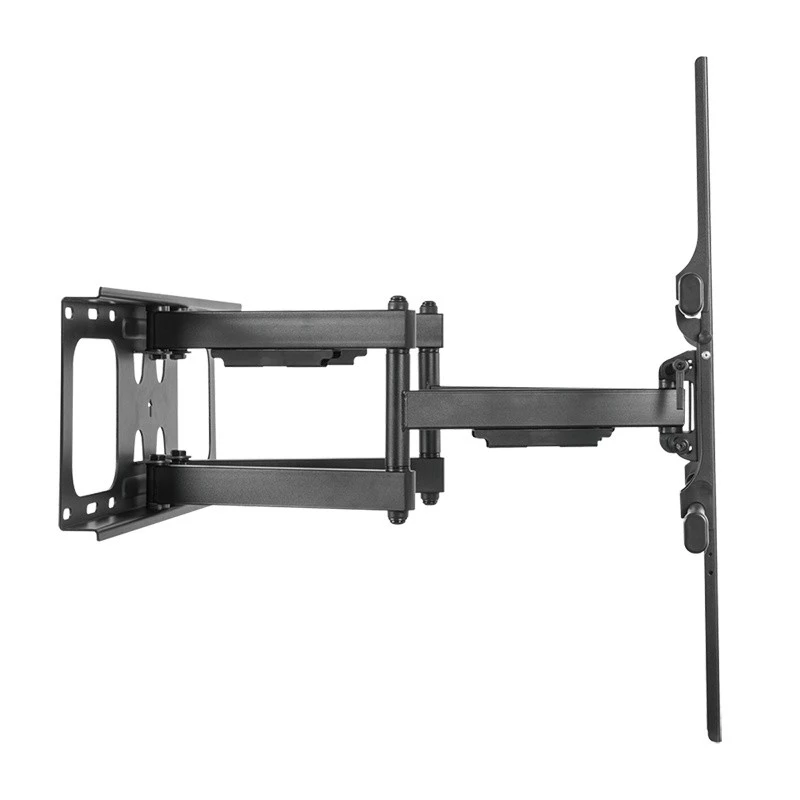

• Distance to wall: 6.9 cm – 63.5 cm
• Colour: Black

How to use

Secure the wall plate to a suitable load-bearing wall following the included mounting template and local building codes. Attach the VESA brackets to the display using the appropriate screws for the TV’s VESA pattern. Hang the screen on the wall plate, engage the quick-release fasteners and check that the unit is level. Adjust the extension arm, tilt and swivel to the desired viewing angle, then tighten any adjustment bolts to lock the position.

Recommendations

Ensure the wall and fixings are rated for the combined weight of the mount and screen (up to 75 kg). Use the correct screw sizes for the TV’s VESA holes and verify that the selected VESA pattern is supported. If unsure about wall construction or load capacity, consult a qualified installer.
