M.2 Key M naar PCIe x16 NVMe-adapter DeLOCK 64134

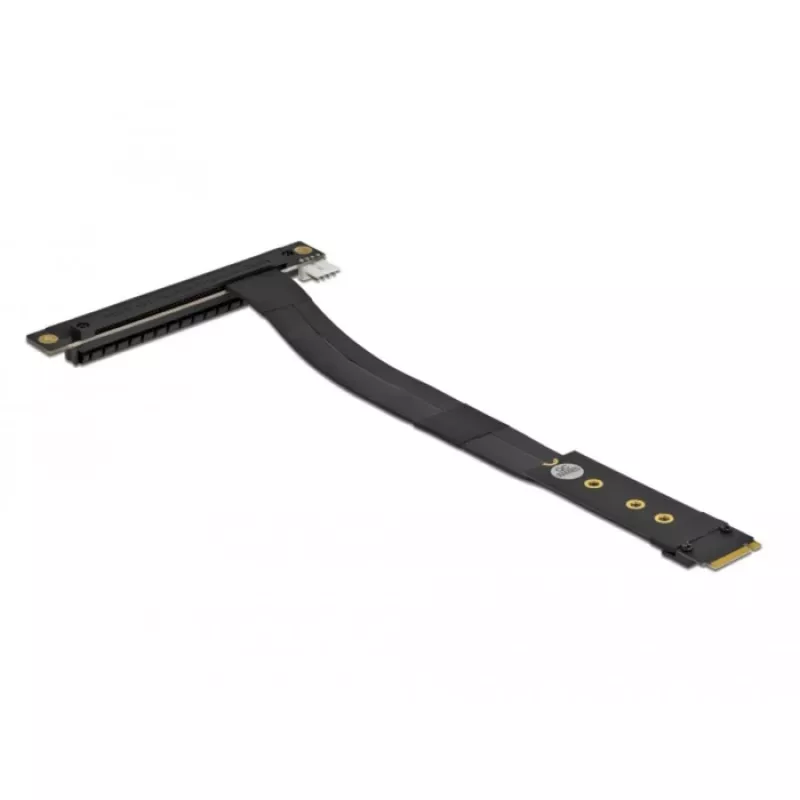

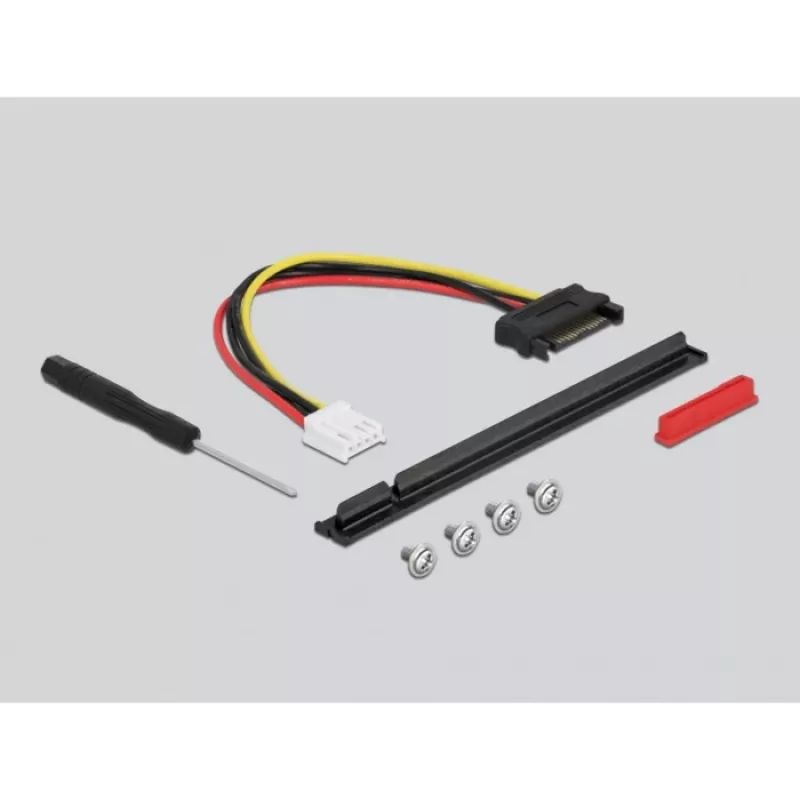

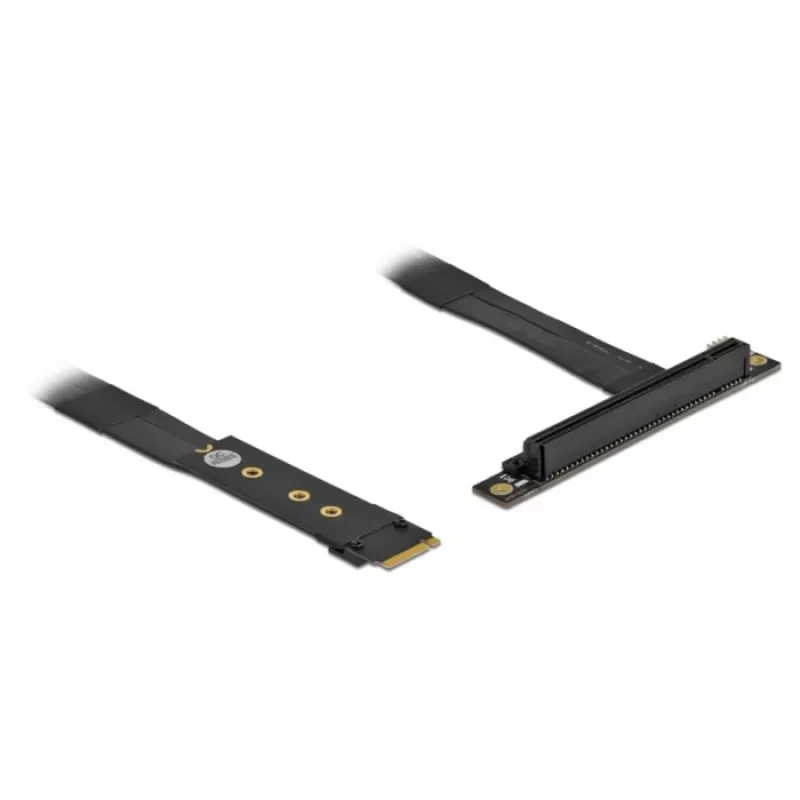

This M.2 Key M to PCIe x16 NVMe adapter from DeLOCK enables connection of a PCI Express card or an NVMe SSD to an M.2 Key M slot. The adapter uses a flexible angled cable for space-saving installation inside a computer case and includes an additional 12 V power connector to supply cards that require extra power.

Advantages

The angled design with a 20 cm flexible cable allows installation in tight or compact systems. Supports M.2 host interface and PCIe output for NVMe storage devices. Internal form factor and black finish make it suitable for in-case mounting without occupying external space. An extra power connector provides stable 12 V power to PCIe cards when needed.

Suitable for

• Connecting NVMe SSDs to an M.2 Key M slot
• Installing PCIe x16 cards in systems with limited internal space
• Upgrading storage in small form factor or compact PC cases

Key specifications

• Host interface: M.2 (Key M)
• Output interface: PCIe x16 (NVMe support)
• Cable length: 20 cm (angled/flexible)
• Internal installation: Yes
• Product colour: Black
• Brand: DELOCK, MPN: 64134, EAN: 4043619641345

How to use

Install the adapter into the system by inserting the M.2 Key M connector into the host slot on the motherboard. Route the flexible cable to the PCIe x16 card location and secure the card to the adapter. If the installed PCIe card requires external power, connect the additional 12 V power connector to a suitable power source from the computer PSU. Ensure all connections are seated before powering on the system.

Recommendations

Use the adapter inside a powered-off system and follow standard ESD precautions. Verify motherboard support for NVMe over M.2 and check the PCIe lane availability before installation. Ensure the extra power connector is used only when the connected PCIe card requires 12 V supply.
