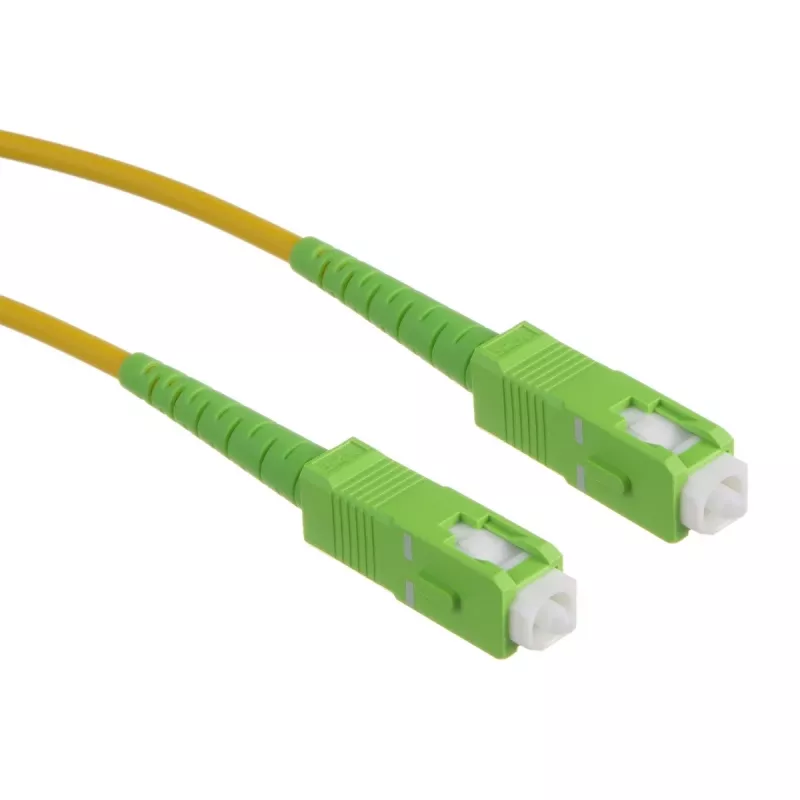

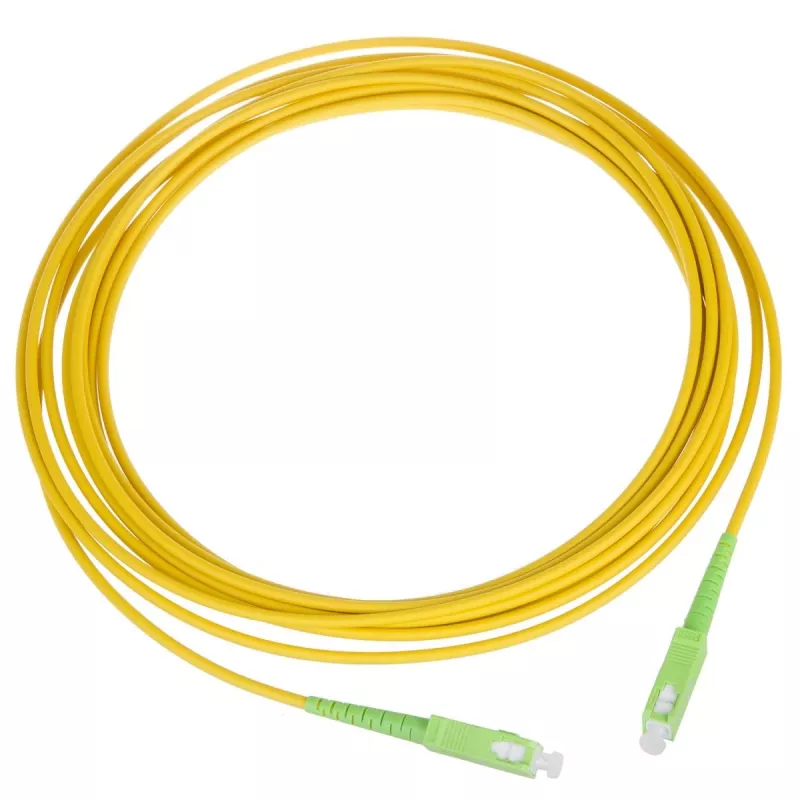

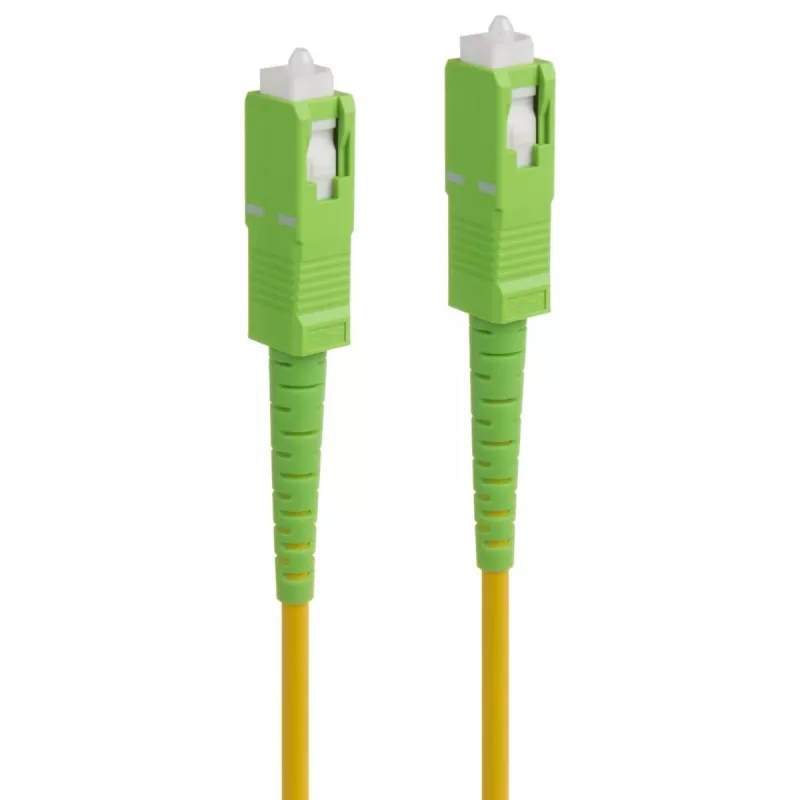

MACLEAN glasvezel patchkabel SC/APC naar SC/APC single-mode simplex 1m G.657A2

The MACLEAN Fiber Optic Patch Cable MCTV-435 is a high-performance single-mode simplex patch cord designed for reliable data transmission in FTTH, FTTB, LAN, CATV, and telecommunications networks. Featuring SC/APC connectors on both ends and a bend-insensitive G.657A2 fiber, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This fiber optic patch cable offers exceptional durability with 500 mating cycles and a minimum bend radius of only 10 mm, making it ideal for tight installations. The APC polish reduces back reflection, enhancing network performance. PVC jacket provides flexibility and protection for indoor use.

Suitable for

• FTTH (Fiber to the Home) and FTTB (Fiber to the Building) networks
• Local Area Networks (LAN) and data centers
• CATV and telecommunications systems
• Any application requiring single-mode fiber connectivity with SC/APC interfaces

Key specifications

• Cable Type: Fiber Optic Patch Cord
• Connector Type: SC/APC to SC/APC
• Fiber Mode: Single-mode
• Fiber Standard: G.657A2 (Bend-Insensitive)
• Fiber Count: Simplex (1 Fiber)
• Cable Length: 1 meter
• Cable Diameter: 3 mm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Jacket Material: PVC
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 10 mm
• Durability: 500 mating cycles
• Wavelength: 1310nm / 1550nm

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard SC/APC ports. Store in a clean, dry environment within the specified temperature range.
