Magnetische stekker naar USB-C-adapter Viture – magnetische-naar-USB-C-adapter, model USB-C-adapter

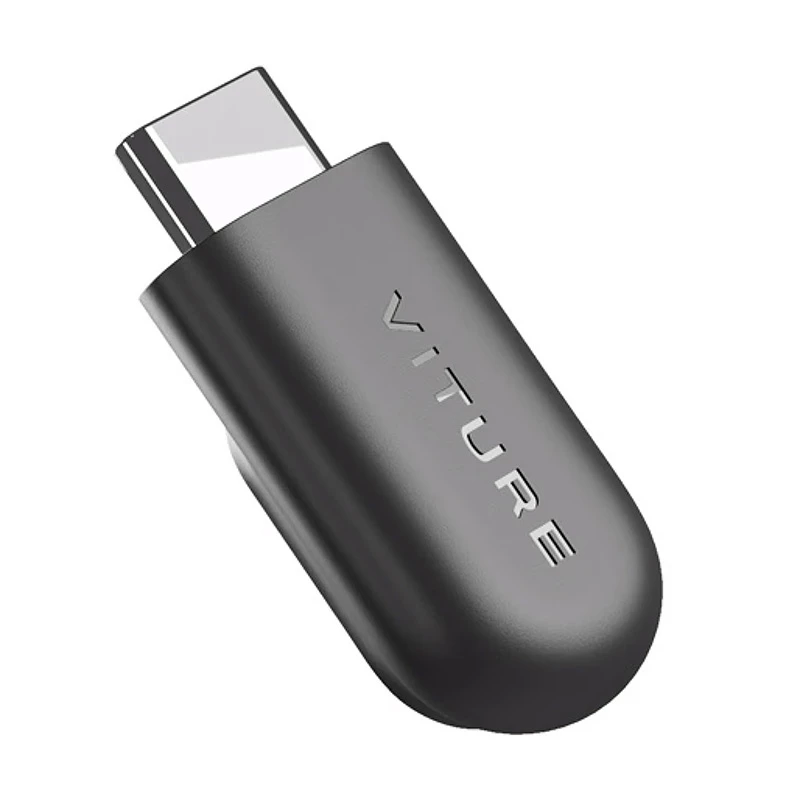

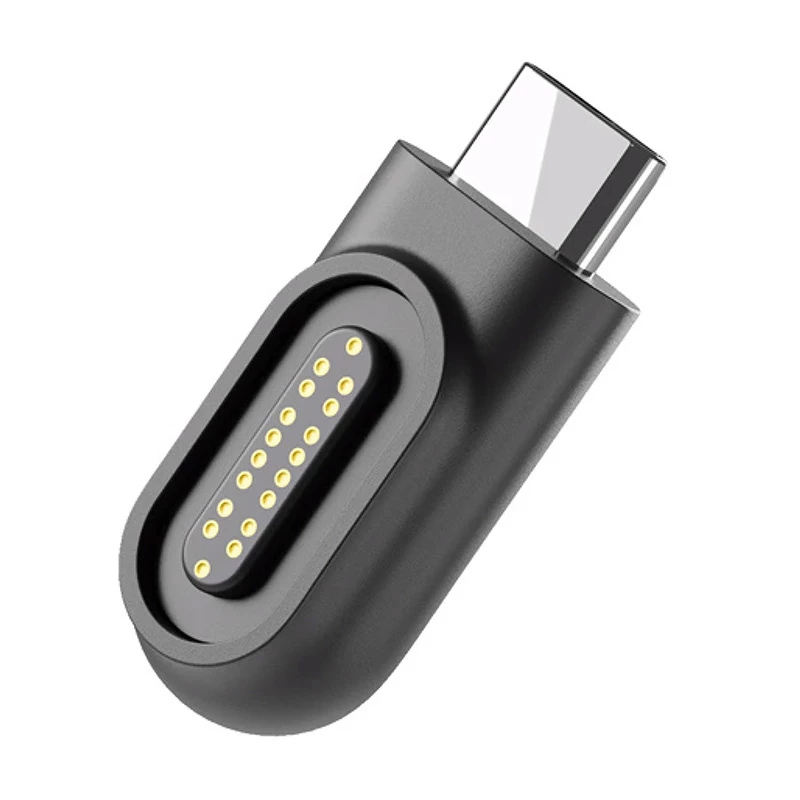

The Viture Magnetic Connector to USB-C Adapter converts a magnetic connector interface to a standard USB-C connection, providing an easy magnetic plug-in link for devices with USB-C ports. This compact adapter enables one-handed connection and quick detach for charging and data transfer, and is designed to work with laptops, tablets and smartphones as well as with Viture accessories such as the Neckband and VITURE One Lite. The magnetic mechanism reduces wear on device ports by avoiding repeated direct plug insertion.

Advantages

The adapter supports high-speed data transfer up to 10 Gbit/s and can carry 4K video at 60 fps, enabling stable and fast image transmission. The magnetic coupling provides a secure, snap-on connection that detaches easily to prevent cable strain or accidental damage. Its compact dimensions and low weight make it portable and unobtrusive when attached to a device.

Suitable for

• Connecting Viture Neckband or VITURE One Lite to USB-C devices
• Charging USB-C smartphones, tablets and laptops that accept up to 20W output
• Transmitting video to external USB-C displays supporting DisplayPort over USB-C
• Use cases where quick, one-handed magnetic attachment and safe quick-detach are required

Key specifications

• Connector type: USB-C via magnetic adapter
• USB standard: USB 3.2 Gen1
• Data transfer rate: up to 10 Gbit/s (supports 4K@60fps video)
• Display support: DisplayPort over USB-C
• Output power: up to 20 W (12 V~1.65 A, 9 V~2 A, 5 V~3 A)
• Dimensions: 29.62 x 13.17 x 8.48 mm
• Weight: 4.3 g

How to use

Attach the magnetic adapter to the device's USB-C port or to the compatible magnetic plug supplied with the accessory. Bring the magnetic ends close together; the adapter will snap into place automatically. For charging or data transfer, connect the other end of the cable or accessory to a host device with a USB-C port that supports the required power and data profiles. When finished, pull gently on the adapter or cable to detach the magnetic connection without applying sideways force to the device port.

Recommendations

Use the adapter with devices and cables that meet USB-C power and data specifications to ensure safe charging and reliable video transmission. For optimal compatibility with non-Viture displays or glasses, a short extension cable (around 50 cm) may be required; note that some advanced XR features may not be available when using third-party displays or extension cables.
