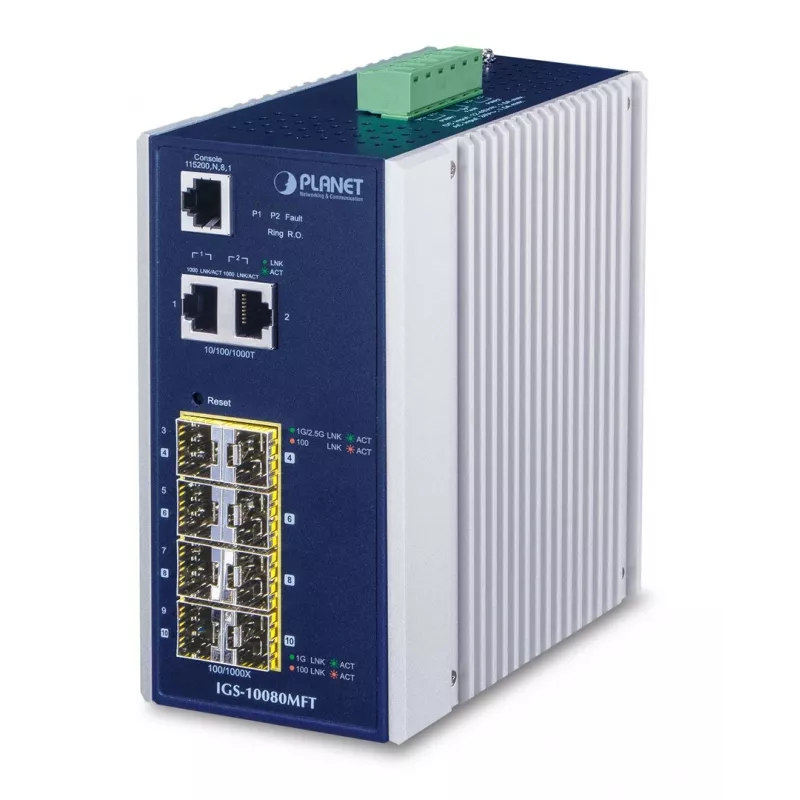

Managed netwerkswitch PLANET IGS-10080MFT — 2 x Gigabit RJ-45, 8 x SFP, 12–48V DC, managed, IP30

The PLANET IGS-10080MFT is a managed industrial Gigabit Ethernet switch designed for long-reach fiber networking in industrial and telecom environments. It provides eight SFP fiber ports (two supporting 100/1000/2500BASE-X and six supporting 100/1000BASE-X), two 10/100/1000BASE-T copper ports, an IP30 rugged metal case, and redundant power support. The switch operates across a wide temperature range (–40 to 75 °C) and supports both IPv4 and IPv6 management, making it suitable for hardened installations where reliable, full-Gigabit backbone connectivity and remote fiber transmission are required.

Advantages

The IGS-10080MFT combines multi-rate SFP flexibility, industrial-grade temperature tolerance and redundant power to improve network uptime. It supports Layer 2 to Layer 4 features, Quality of Service, secure management, and both IPv4/IPv6 control for backward compatibility and future-proofing. Built-in mechanisms such as RSTP/MSTP, loop protection, link aggregation and fast recovery allow deployment in fault-tolerant ring architectures and reduce service interruptions in harsh environments.

Suitable for

• Industrial automation and factory-floor Ethernet backbones
• Telecom and carrier Ethernet aggregation with timing requirements
• Long-reach fiber connections between buildings or remote sites
• SCADA, HMI and Modbus TCP/IP integration for monitoring and control

Key specifications

• Ports: 2 × 10/100/1000BASE-T RJ-45, 2 × 100/1000/2500BASE-X SFP, 6 × 100/1000BASE-X SFP
• Switching capacity: 26 Gbit/s
• MAC address table: 8,000 entries
• Networking standards: IEEE 1588v2, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, RSTP/MSTP and others
• Power input: DC 12–48 V (redundant power support)
• Operating temperature: -40 to 75 °C
• Form factor: IP30 rugged case, wall-mountable
• Weight: 1.036 kg

How to use

Install the IGS-10080MFT on a wall or DIN rail according to the mounting instructions and connect a DC power source (12–48 V) to the redundant power inputs. Insert appropriate SFP transceivers into the SFP slots based on required speed and fiber distance (use 100/1000/2500BASE-X modules for the two triple-speed slots, 100/1000BASE-X for the remaining slots). Connect copper devices to the RJ-45 ports for local Gigabit access. Configure management settings via the web GUI, CLI or SNMP using either IPv4 or IPv6 addresses, and enable features such as VLANs, QoS, link aggregation and RSTP/MSTP to match your network design.

Recommendations

Use certified SFP transceivers compatible with the required transmission distances and speeds; enable redundant power and link-aggregation where high availability is required; enable IEEE 1588/v2 or synchronous Ethernet when precise timing or telecom-grade synchronization is needed; periodically back up the configuration and monitor the switch via SNMP or Modbus TCP for factory automation integration.
