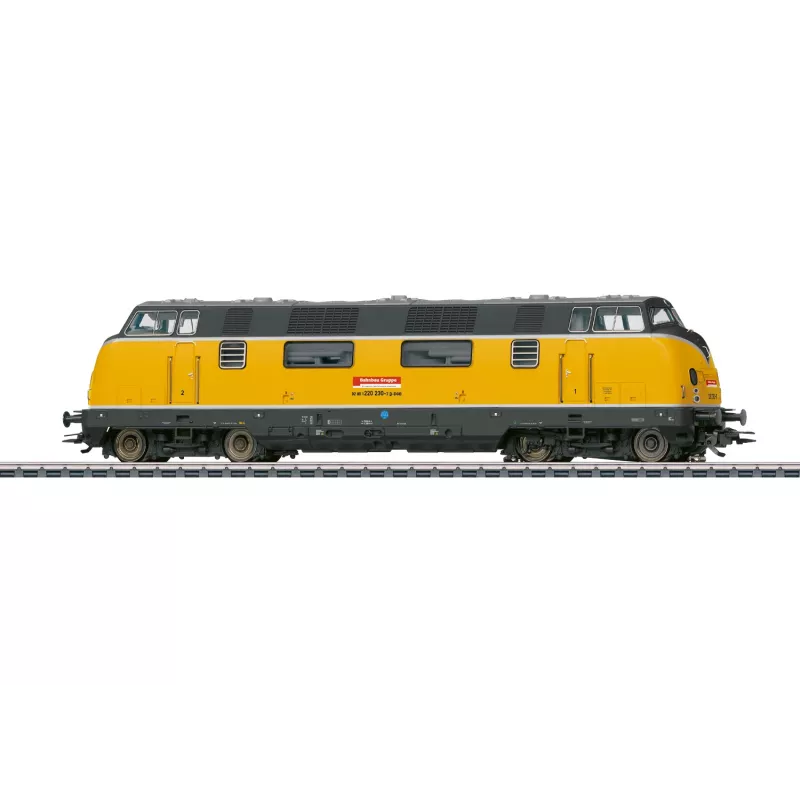

Märklin 037809 H0 diesellocomotief BR 220 DBG met mfx+ digitaaldecoder en sound

Equipped with an mfx+ digital decoder and extensive sound functions, this H0 scale model of the DB Class 220 diesel locomotive delivers authentic operation on three-rail AC systems.

Overview

The Märklin 037809 reproduces the Deutsche Bundesbahn's V 200.0 (later Class 220) in Era IV livery. The model features a die-cast metal chassis with a plastic body, a controlled high-efficiency propulsion system with flywheel, and close couplers in NEM shafts with guide mechanisms. Direction-dependent triple headlights and dual red marker lights, along with cab lighting, enhance realism.

What stands out

• mfx+ decoder enables operation on Märklin Digital, mfx+, and DCC systems.
• Extensive sound: operating sounds, horn, brake squeal, shunting whistle, compressor, and fan.
• Shunting gear and adjustable acceleration/braking delay for precise control.
• Minimum radius 360 mm, length over buffers 210 mm.

Technical details

• Scale: H0 (1:87)
• Power system: AC, three-rail
• Road number: BR 220 002-9
• Era: IV
• Motor: Controlled high-efficiency propulsion with flywheel
• Chassis: Die-cast metal; body: plastic
• Coupling: Close couplers in NEM shaft with guide mechanism
• Lighting: Direction-dependent triple headlights, dual red marker lights, cab lighting
• Minimum radius: 360 mm
• Length over buffers: 210 mm

Our verdict

A highly detailed and digitally equipped model that brings the legendary V 200.0 to life with rich sound and smooth operation.
