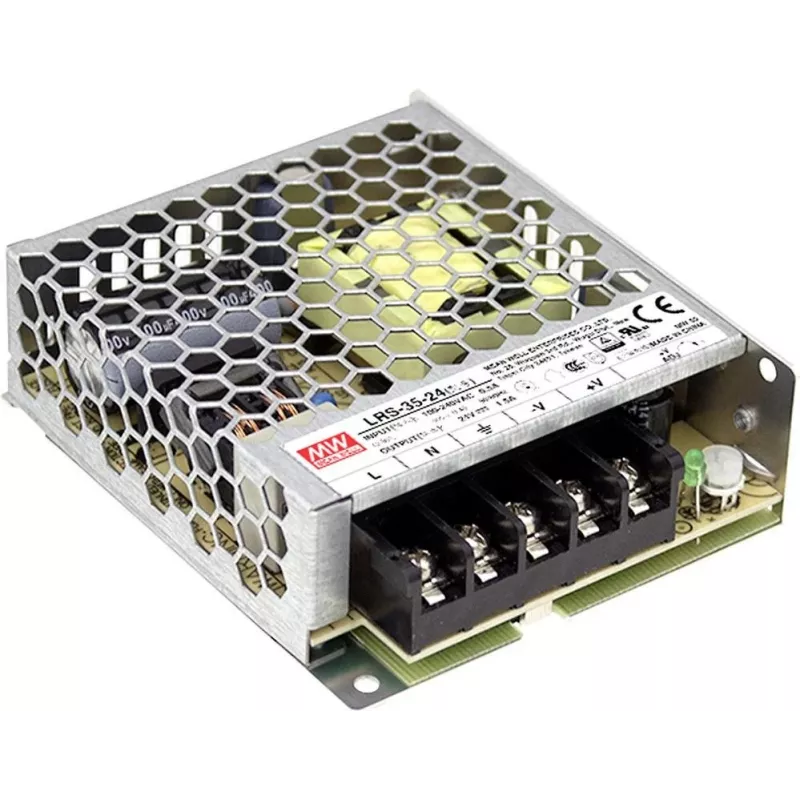

MEAN WELL LRS-35-36 36V 35W gesloten voeding

The MEAN WELL LRS-35-36 stands out as a compact yet robust 35-watt enclosed power supply, delivering a stable 36V DC output from a universal AC input. Unlike open-frame modules that demand additional enclosures, this unit's perforated metal housing provides inherent protection and simplifies integration into industrial control panels, automation systems, and LED lighting rigs. Its wide input range (85–264V AC) and full compliance with international safety standards make it a reliable choice for both local installations and global OEM applications.

Highlights

• 36V DC output with 0.97A rated current and 35W continuous power
• Universal AC input: 85–264V AC (47–63 Hz) or 120–370V DC
• High efficiency up to 88% and low ripple & noise (150mVp-p)
• Built-in protections: short circuit, overload, and over voltage
• Free air convection cooling – no fan, silent operation
• Chassis mount with screw terminals for secure wiring
• Wide operating temperature range: -30°C to +70°C
• Compact metal case with perforated design for heat dissipation

In daily use

Thanks to its adjustable output voltage (32.4–39.6V), the LRS-35-36 can be fine-tuned to compensate for voltage drops in long cable runs or to match specific load requirements. The screw terminal block accepts a variety of wire sizes, ensuring a reliable connection in vibration-prone environments. With no forced-air cooling, the power supply operates in complete silence, making it suitable for noise-sensitive areas such as offices, studios, or medical facilities. Its 3.75kV AC isolation between input and output provides an extra layer of safety for both equipment and personnel.

Full specifications

• Output voltage: 36V DC (adjustable 32.4–39.6V)
• Rated output current: 0.97A
• Rated output power: 35W
• Input voltage: 85–264V AC / 120–370V DC
• Input frequency: 47–63 Hz
• Efficiency: 88%
• Ripple & noise: 150mVp-p
• Protections: short circuit, overload, over voltage
• Isolation voltage: 3.75kV AC (input to output)
• Operating temperature: -30°C to +70°C
• Cooling: free air convection
• Housing: perforated metal case
• Mounting: chassis mount with screw terminals
• Safety standards: UL62368-1, TUV EN62368-1, EAC TP TC 004

Final note

For engineers and system integrators seeking a dependable, globally certified power solution in a space-saving metal enclosure, the MEAN WELL LRS-35-36 delivers consistent performance and long service life, backed by MEAN WELL's renowned quality and three-year warranty.
