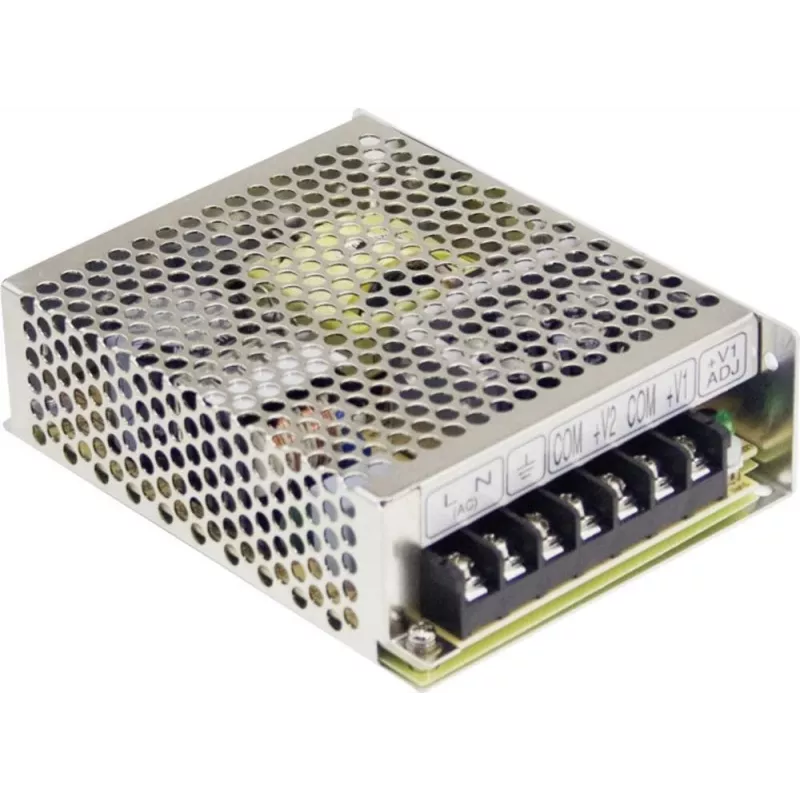

MEAN WELL RS-75-15 75W metalen behuizing voeding 15V 5A

Industrial-grade 75W AC/DC power supply delivering a stable 15V DC output at 5A. The RS-75-15 is a metal-enclosed, chassis-mount unit engineered for reliable performance in demanding automation, LED lighting, and test equipment applications. Its wide input range and robust protection features make it a versatile choice for global use.

Advantages

High efficiency up to 86% reduces energy waste and heat generation. The compact metal housing ensures durability and effective heat dissipation via free air convection. Built-in overload, overvoltage, and short-circuit protections with auto-recovery safeguard both the supply and connected loads. Compliance with international safety standards and a long MTBF of over 500,000 hours guarantee long-term reliability.

Suitable for

• Industrial automation and control systems
• LED lighting installations
• Test and measurement equipment
• Telecommunication devices
• General electronic projects requiring 15V DC

Key specifications

• Output: 15V DC, 5A, 75W
• Input: 85–264VAC or 120–370VDC
• Efficiency: 86%
• Ripple & noise: 150mVp-p
• Voltage adjustment: 13.5–18V
• Protections: overload, overvoltage, short-circuit (auto-recovery)
• Isolation: 3kVAC input to output
• Operating temperature: -25°C to +70°C
• Cooling: free air convection
• Safety: UL60950-1, TUV EN60950-1, CB, CE

Recommendations

For reliable 15V DC power in industrial environments, the MEAN WELL RS-75-15 offers excellent value. Its metal enclosure and comprehensive protections ensure stable operation even under fluctuating input conditions. Ideal for OEMs and system integrators seeking a dependable, long-life power solution.
