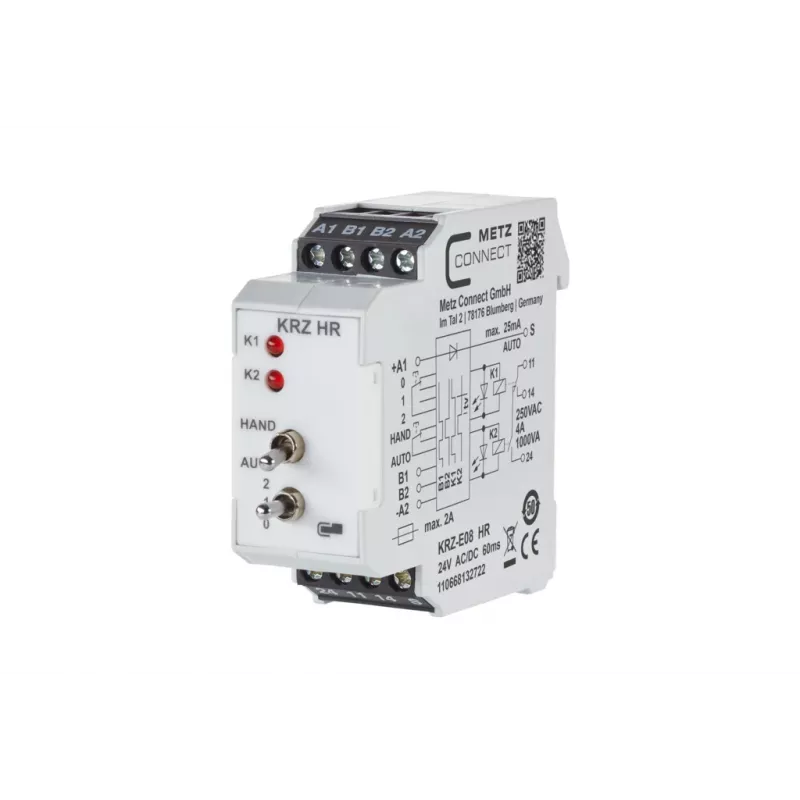

METZ CONNECT 110668132722 vermogensrelais wit 24V DC 2PDT 8A PCB-montage

In industrial and building automation, reliable switching of moderate loads is critical for system uptime and safety. The METZ CONNECT 110668132722 power relay delivers robust performance in a compact PCB-mount package, ensuring dependable control of circuits up to 8 A. Its white housing and 2 changeover contacts make it a versatile choice for a wide range of applications, from HVAC to lighting control.

Who is it for

This relay is ideal for design engineers, panel builders, and maintenance technicians who need a durable, high-isolation switching solution for printed circuit boards. It is well-suited for use in industrial controls, building automation, and power distribution systems where space is limited but reliability cannot be compromised.

Main features

• 2PDT (2 changeover) contact configuration for flexible switching
• High switching capacity: 8 A at 250 V AC
• Coil voltage: 24 V DC with low power consumption (360 mW)
• Excellent insulation: 5000 V AC between coil and contacts
• Wide operating temperature range: -40 °C to +85 °C
• Long mechanical life: 10 million operations
• Approvals: VDE, UL, CSA for global acceptance

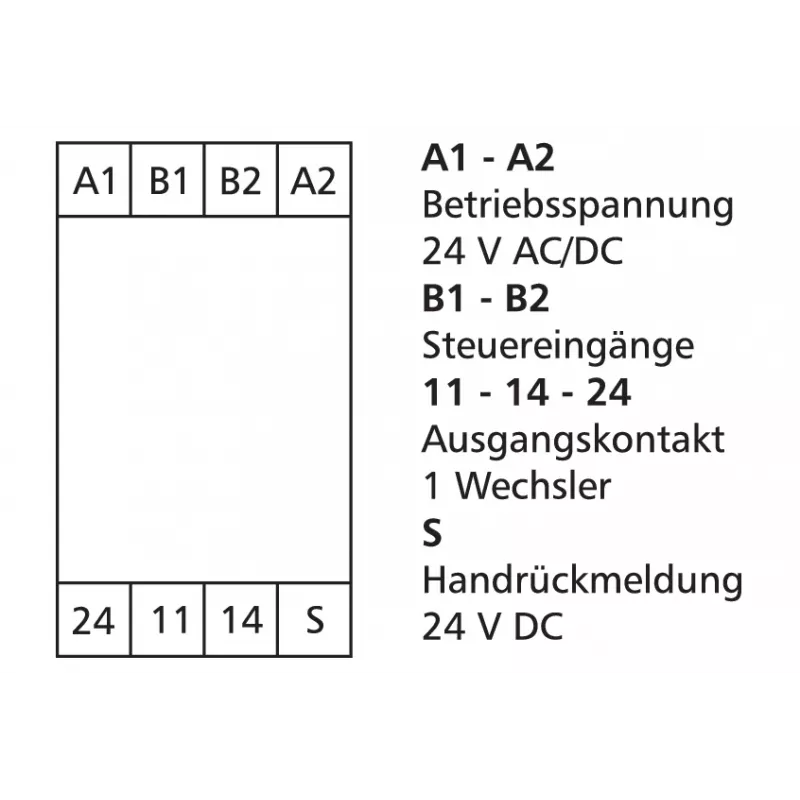

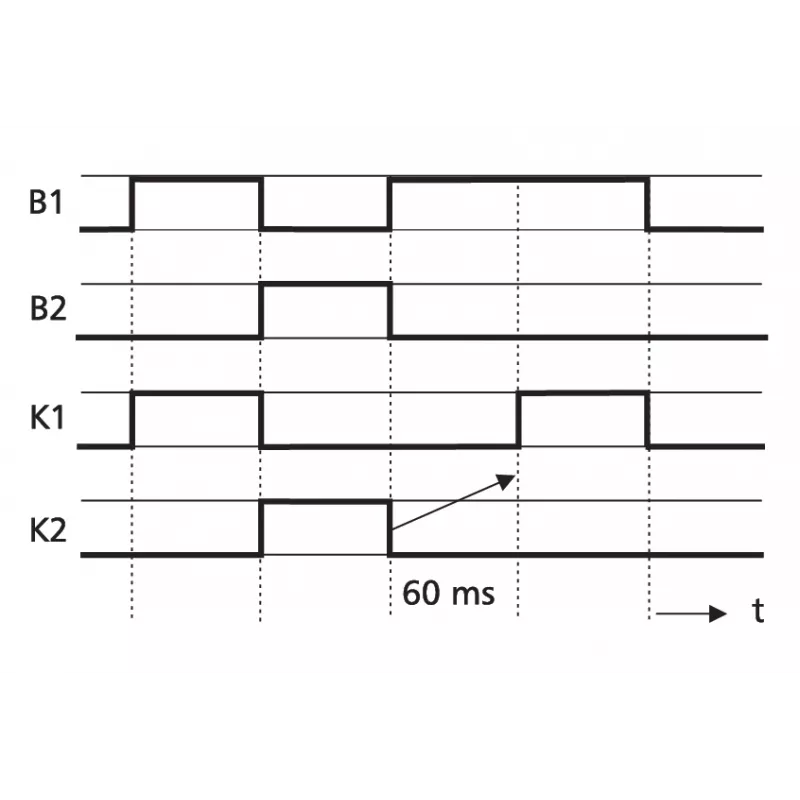

Specifications

• Coil voltage: 24 V DC
• Contact configuration: 2PDT (2 changeover)
• Max switching current: 8 A
• Max switching voltage: 250 V AC
• Coil resistance: 1600 Ω
• Coil power consumption: 360 mW
• Contact material: AgNi (Silver Nickel)
• Insulation voltage coil/contact: 5000 V AC
• Dielectric strength contact/contact: 1000 V AC
• Mechanical life: 10,000,000 cycles
• Electrical life: 100,000 cycles at rated load
• Operating temperature: -40 °C to +85 °C

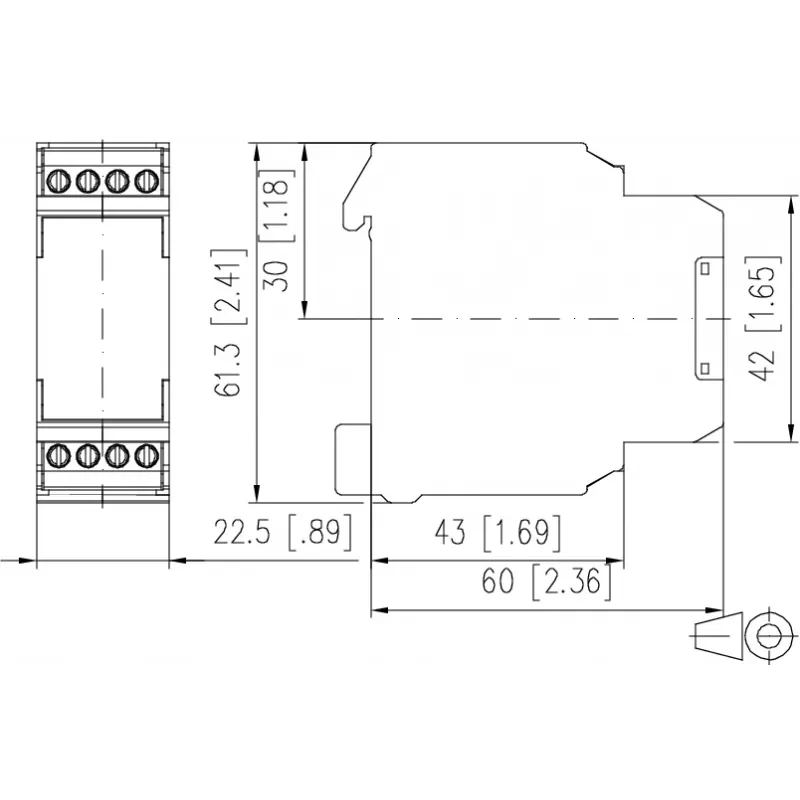

• Mounting: PCB mount
• Colour: White
• Approvals: VDE, UL, CSA

Tips

Ensure proper PCB layout to maintain creepage and clearance distances for the high insulation voltage. When switching inductive loads, consider using a freewheeling diode across the coil to protect driving circuitry. For high-frequency operations, derate the contact current to extend electrical life.
