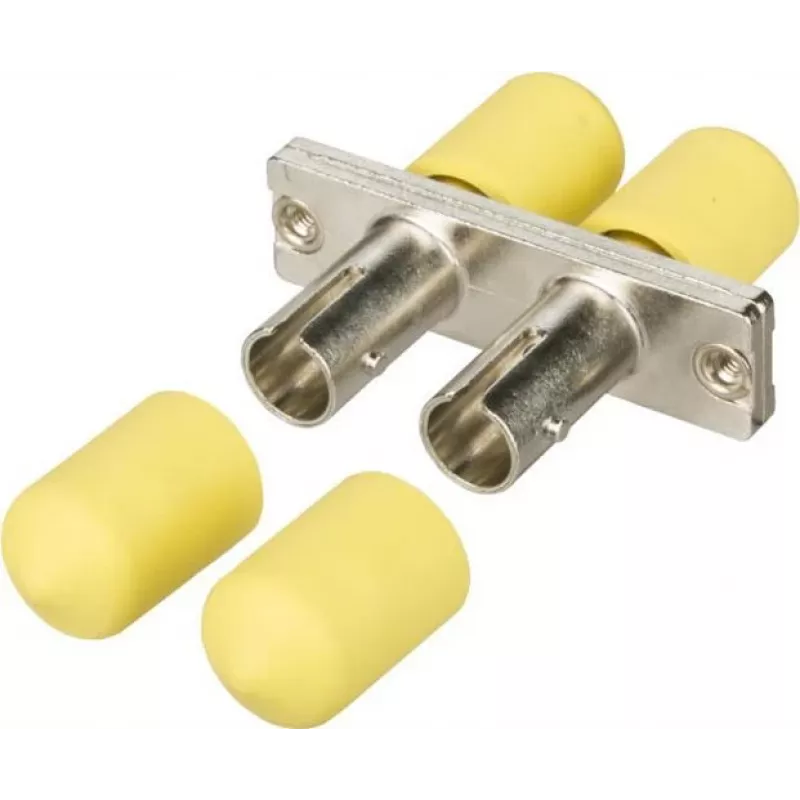

METZ CONNECT 150900D1-I ST glasvezeladapter, ongecoat metaal, multi-mode/single-mode

The METZ CONNECT 150900D1-I is a high-quality ST fibre optic adapter designed for reliable connections in both multi-mode and single-mode networks. Featuring a durable metal housing with an uncoated steel finish, this adapter ensures low insertion loss and high return loss, making it ideal for demanding fibre optic cabling environments.

Advantages

This adapter offers exceptional durability with a metal housing and metal ferrule, supporting over 500 mating cycles. Its PC polishing type provides typical insertion loss of less than 0.3 dB and return loss greater than 30 dB for multi-mode and 45 dB for single-mode, ensuring optimal signal integrity. The uncoated natural metal finish resists corrosion and wear.

Suitable for

• Fibre optic patch panels and enclosures
• Data centre cabling infrastructure
• Telecommunications networks
• Industrial fibre optic applications

Key specifications

• Connector Type: ST
• Fibre Compatibility: Multi-mode and Single-mode
• Housing Material: Metal (Steel)
• Ferrule Material: Metal
• Polishing Type: PC (Physical Contact)
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 30 dB (MM), > 45 dB (SM)
• Operating Temperature: -40°C to +85°C
• Durability: 500 mating cycles
• Compliance: RoHS

Recommendations

For best performance, use with high-quality ST patch cables and ensure proper cleaning before mating. Suitable for both indoor and controlled outdoor environments.
