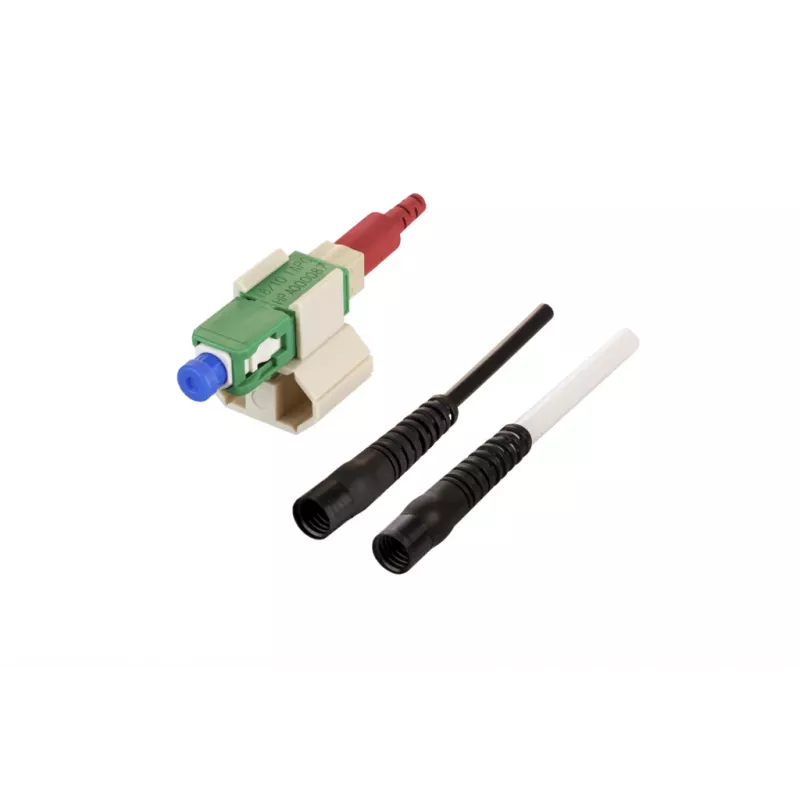

METZ CONNECT 1509QKEA0010-E SC OS2 groene single-mode veldconfectieerbare stekker, 10-pack

Field termination of single-mode fibre often demands expensive tooling, epoxy, and polishing—until now. The METZ CONNECT 1509QKEA0010-E quick-assembly SC connector eliminates those barriers, enabling fast, reliable, low-loss terminations directly on site. With its green housing and APC polish, it is purpose-built for high-performance FTTx, LAN, data centre, and telecommunication links where return loss and ease of installation are critical.

Who is it for

Network installers, telecom technicians, and data centre engineers who need to terminate OS2 single-mode fibre quickly without sacrificing optical performance. Ideal for both repair and new installations, especially where fusion splicing is impractical or too costly.

Main features

• Field-installable SC/APC connector for OS2 single-mode fibre
• Pre-polished zirconia ceramic ferrule—no epoxy, no polishing required
• Typical insertion loss < 0.2 dB and return loss > 60 dB
• Supports 250 µm, 900 µm, 2.0 mm, and 3.0 mm cables
• Durable plastic housing with over 500 mating cycles
• Complies with IEC 61754-4 and TIA/EIA-604-3
• Pack of 10 connectors

Specifications

• Connector type: SC
• Fibre mode: Single-mode (OS2)
• Polish: APC (Angled Physical Contact)
• Colour: Green
• Insertion loss (typical): < 0.2 dB
• Return loss (typical): > 60 dB
• Operating temperature: -40 °C to +85 °C
• Mating cycles: > 500
• Ferrule material: Zirconia ceramic
• Housing material: Plastic
• Cable compatibility: 250 µm, 900 µm, 2.0 mm, 3.0 mm
• Standards: IEC 61754-4, TIA/EIA-604-3

Tips

For best results, ensure the fibre end face is clean and cleaved at a precise 90° angle before insertion. Use the included wedge clip to secure 3.0 mm jacketed cables. Store unused connectors in the provided protective caps to prevent contamination of the pre-polished ferrule.
