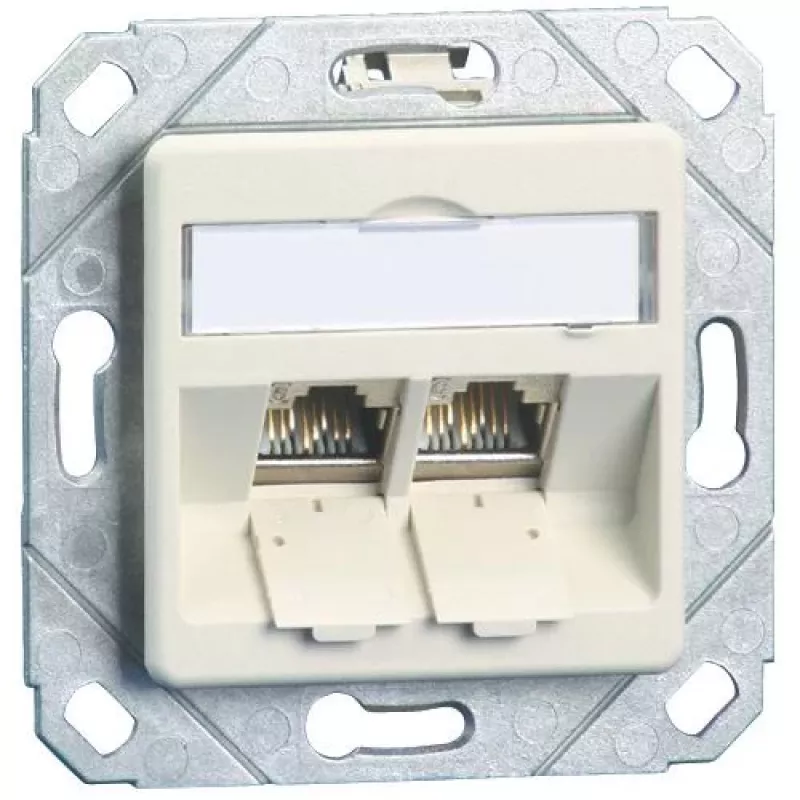

METZ CONNECT BTR E-DAT modul 8/8(8) UPk zonder modules - inbouw-datadoos, CAT 6, zuiverwit RAL 9010, 2 poorten 1309151102-E-90

Structured cabling projects often stall at the finishing stage: the network is tested and ready, but the wall outlets are missing, mismatched, or simply not ordered. This METZ CONNECT flush-mount housing solves that by providing a clean, two-port termination point that accepts standard E-DAT modul keystone jacks, so you can complete the installation without delays.

Who is it for

Network installers and facility managers who need a reliable, neutral-looking outlet for CAT 6 installations in offices, schools, or residential buildings. It suits anyone who already has METZ CONNECT E-DAT modul jacks or plans to use them, and wants a housing that blends into white walls.

Main features

• Two-port flush-mount housing for METZ CONNECT E-DAT modul keystone jacks (modules not included).
• Supports CAT 6 performance when paired with compatible E-DAT modul jacks.
• Pure White (RAL 9010) thermoplastic housing blends with standard wall plates.
• Central plate with integrated dust protection shutters keeps unused ports clean.
• Labeling field with transparent cover for easy port identification.
• Fits standard flush-mount boxes (e.g., 60 mm diameter).
• Compatible with shielded and unshielded E-DAT modul jacks.

Specifications

• Product type: Data outlet housing
• Mounting type: Flush-mount (Unterputz)
• Number of ports: 2
• Supported connector type: RJ45 (8P8C)
• Performance category: CAT 6
• Colour: Pure White (RAL 9010)
• Material: Thermoplastic (PC/ABS)
• Operating temperature: -20°C to +70°C
• Operating humidity: 10% to 90% non-condensing
• Application: Indoor LAN / Ethernet

Tips

Order the matching E-DAT modul jacks separately, and remember that shielded installations require shielded jacks to maintain grounding continuity. The integrated shutters are a nice touch for dusty environments, but they do not replace proper port caps during construction.
