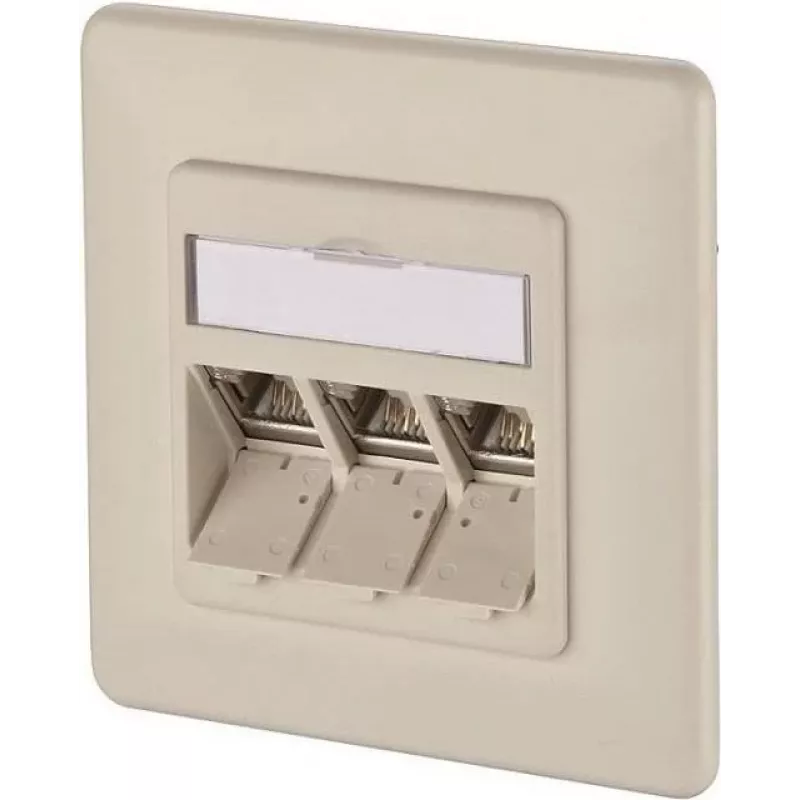

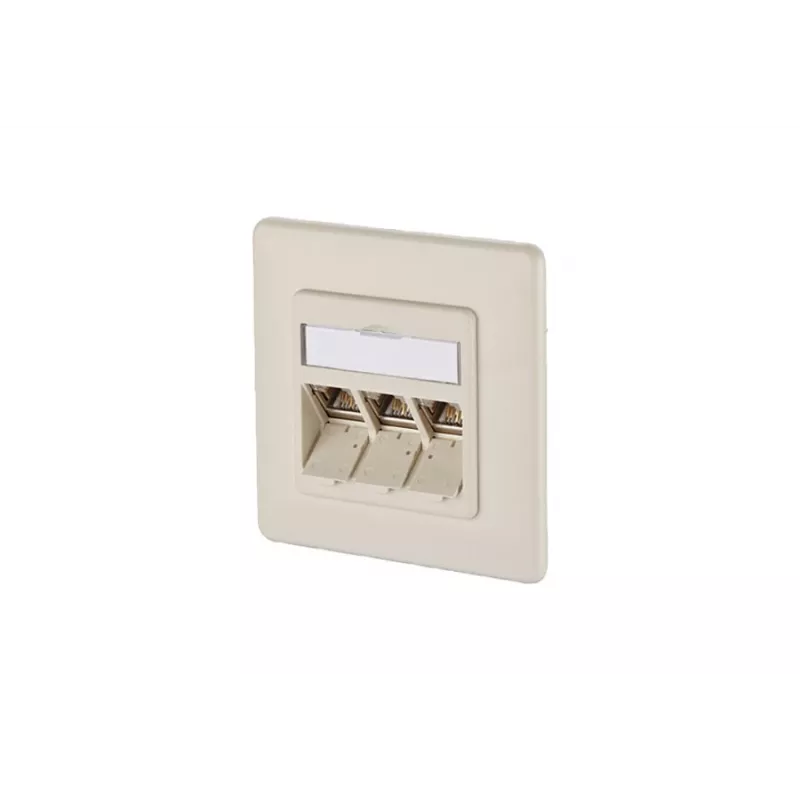

METZ CONNECT BTR IT CONNECT E-DAT module 3x8(8) UP - inbouw netwerkdoos, 3-poorts RJ45, CAT 6, afgeschermd, parelwit (RAL 1013) 1309131001-E

Structured cabling in modern buildings demands reliable, high-performance connection points that blend seamlessly with interior design. This METZ CONNECT flush-mounted network outlet addresses that need by providing three shielded RJ45 ports in a single, elegant pearl white module. It is engineered for CAT 6 performance, supporting data rates up to 10 Gigabit Ethernet, making it suitable for bandwidth-intensive applications in offices, commercial spaces, and residential environments.

Who is it for

This outlet is ideal for network installers, system integrators, and facility managers who require a robust, future-proof connectivity solution. It is also well-suited for homeowners and businesses undertaking structured cabling projects where aesthetics and performance are equally important. Whether you are setting up a new office network, upgrading an existing installation, or adding connectivity to a living space, this product offers a professional-grade solution.

Main features

• Three RJ45 ports (8P8C) in a single compact module for efficient use of wall space.
• CAT 6 shielded design ensures reliable transmission and reduced interference.
• Supports data rates up to 10 Gigabit Ethernet (10GBase-T) for high-speed networking.
• Integrated dust protection shutters keep contacts clean when ports are not in use.
• Gold-plated contacts provide excellent conductivity and corrosion resistance.
• LSA/IDC termination blocks allow fast, tool-free installation with color-coded wiring for TIA/EIA 568A/B.
• Pearl white (RAL 1013) finish complements modern interiors and matches standard wall plates.
• Flush-mounted design fits standard European flush-mount boxes (60 mm).
• PoE+ (IEEE 802.3at) compatible for powering devices such as IP phones and cameras.
• Complies with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards.

Specifications

• Brand: METZ CONNECT
• Model: 1309131001-E
• MPN: 1309131001-E
• Product type: Network outlet / data socket
• Mounting type: Flush-mounted (Unterputz)
• Number of ports: 3
• Connector type: RJ45 (8P8C)
• Cabling category: CAT 6
• Shielding: Shielded
• Colour: Pearl White (RAL 1013)
• Housing material: Plastic (front plate)
• Contact material: Gold-plated
• Termination type: LSA / IDC
• Wiring standard: TIA/EIA 568A/B (color coded)
• Data transmission rate: Up to 10 Gigabit Ethernet
• PoE compatibility: PoE+ (IEEE 802.3at)
• Operating temperature: -40°C to +70°C
• Flammability rating: UL 94 V-0
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Installation compatibility: Standard flush-mount boxes

Tips

For optimal performance, use CAT 6 or higher shielded cables and ensure proper grounding of the shielding. When terminating, follow the color-coded labels for either TIA/EIA 568A or 568B consistently across your installation. The dust protection shutters automatically close when a plug is removed, but periodic cleaning of the module face is recommended to maintain a neat appearance. If you are installing multiple outlets, consider using a flush-mount box with sufficient depth to accommodate the module and cable bend radius.
