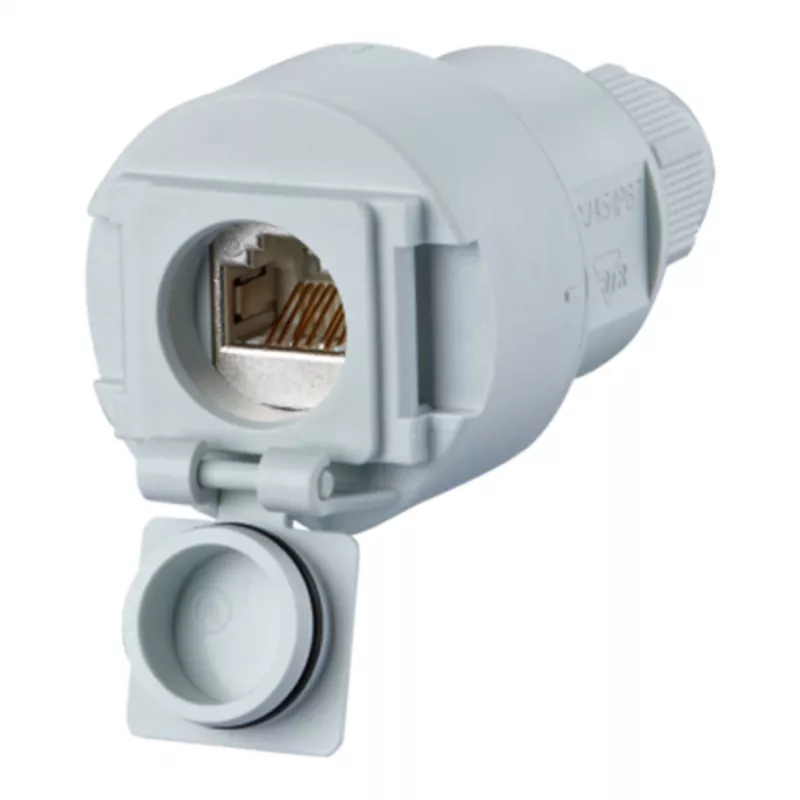

Metz Connect Cat.6A RJ45 koppeling 1-poorts lichtgrijs 1309515003-E

The Metz Connect Cat.6A RJ45 Coupler is a high-performance shielded coupling module designed for reliable 10 Gigabit Ethernet connections. Ideal for use in patch panels, wall outlets, and distribution frames, this 1-port coupler ensures minimal signal loss and excellent crosstalk performance, meeting the stringent requirements of Category 6A standards.

Advantages

This coupler offers superior transmission performance with insertion loss below 0.2 dB and return loss exceeding 20 dB. Its robust zinc die-cast housing with nickel plating provides excellent shielding and durability, supporting over 750 mating cycles. The gold-plated contacts ensure reliable connectivity and corrosion resistance.

Suitable for

• 10GBASE-T networks requiring Cat.6A performance
• Structured cabling systems in data centers and enterprise environments
• Power over Ethernet applications including PoE, PoE+, and 4PPoE
• Integration into patch panels, keystone jacks, and modular outlets

Key specifications

• Performance Category: Cat.6A (IEC 60603-7-51)
• Connector Type: RJ45 (8P8C) Female-to-Female
• Number of Ports: 1
• Shielding: Shielded
• Transmission Speed: 10 Gigabit Ethernet (10GBASE-T)
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Housing Material: Zinc die-cast, nickel-plated
• Contact Plating: Gold-plated (min. 0.8 µm)
• Colour: Light Grey (RAL 7035)
• Mounting Type: Module (e.g., for patch panels, outlets)
• Operating Temperature: -40 °C to +70 °C
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Mating Cycles: > 750
• Insertion Loss: < 0.2 dB
• Return Loss: > 20 dB
• NEXT: > 40 dB
• ACR-F: > 20 dB
• DC Resistance: < 200 mΩ

Recommendations

For optimal performance, pair this coupler with Cat.6A shielded patch cables and ensure proper grounding. Suitable for use in both commercial and industrial environments where high-speed data transmission and reliability are critical.
