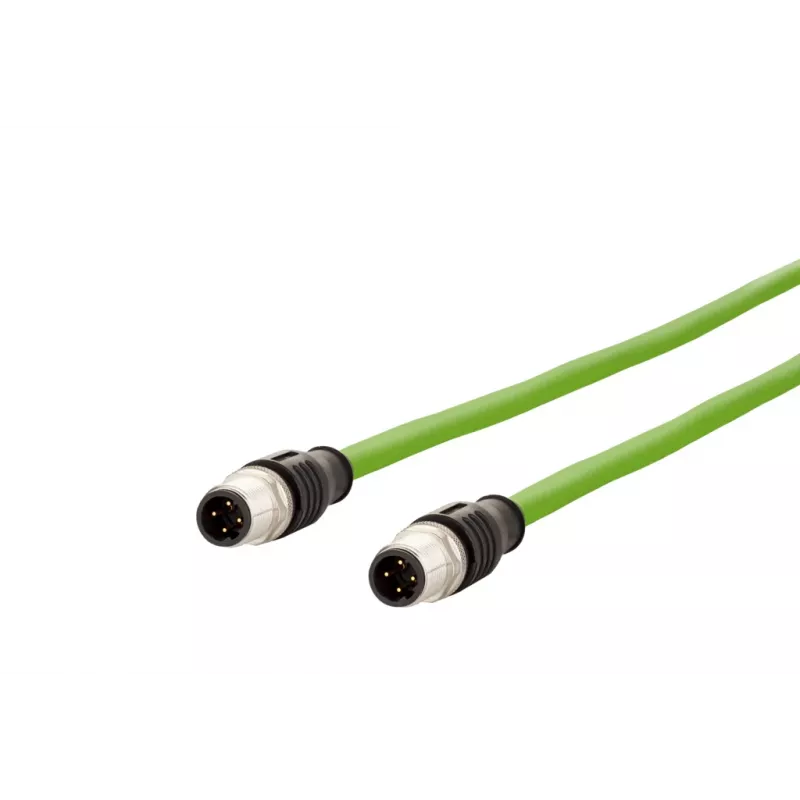

METZ CONNECT M12 D-gecodeerde industriële Ethernet-patchkabel, 4-polig stekker naar 4-polig stekker, 5m, PUR groen

When automation environments punish ordinary patch cables with oil, vibration, and constant flexing, this METZ CONNECT M12 cable keeps its grip. The D-coded 4-pin connectors lock into place with a threaded collar, so the link stays stable even when machinery is shaking. A tough PUR jacket shrugs off abrasion and most industrial chemicals, while the green RAL 6018 colour makes it easy to spot in a crowded cabinet. This is not a generic office patch lead; it is built for the factory floor.

Highlights

• M12 D-coded connectors on both ends, 4-pin male to 4-pin male, per IEC 61076-2-101
• Overall braid shield rejects electromagnetic interference from motors and drives
• PUR (polyurethane) outer jacket rated for harsh industrial use, green RAL 6018
• IP67 protection when mated, so dust and temporary immersion won't break the link
• Supports 10/100 Mbit/s Fast Ethernet over stranded copper conductors (AWG 26/7)
• 5-metre length suits machine-to-switch or sensor-to-I/O connections

In daily use

Route this cable through cable chains or along moving gantries without worrying about jacket cracking. The 4.7 mm outer diameter stays flexible even at -30 °C, and the braided shield keeps data clean up to 80 °C. Because both ends are identical D-coded males, you can use it to extend an existing M12 trunk or connect directly between two M12 D-coded female ports. The threaded coupling prevents accidental disconnection, a common failure point in high-vibration areas.

Full specifications

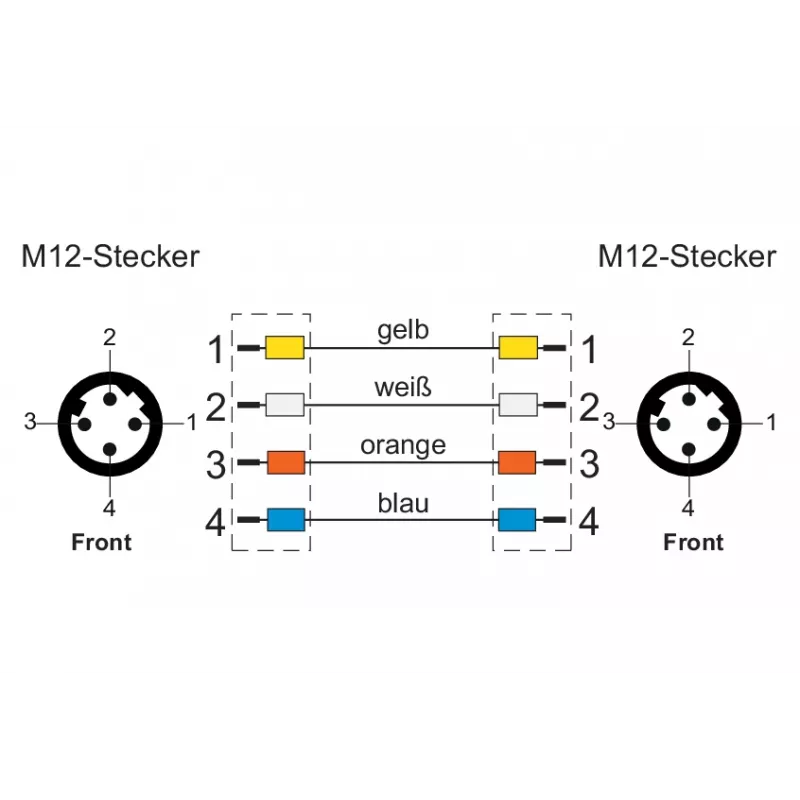

• Connector 1: M12 D-coded, male, 4-pin
• Connector 2: M12 D-coded, male, 4-pin
• Cable length: 5 m
• Jacket material: PUR (polyurethane)
• Colour: Green (RAL 6018)

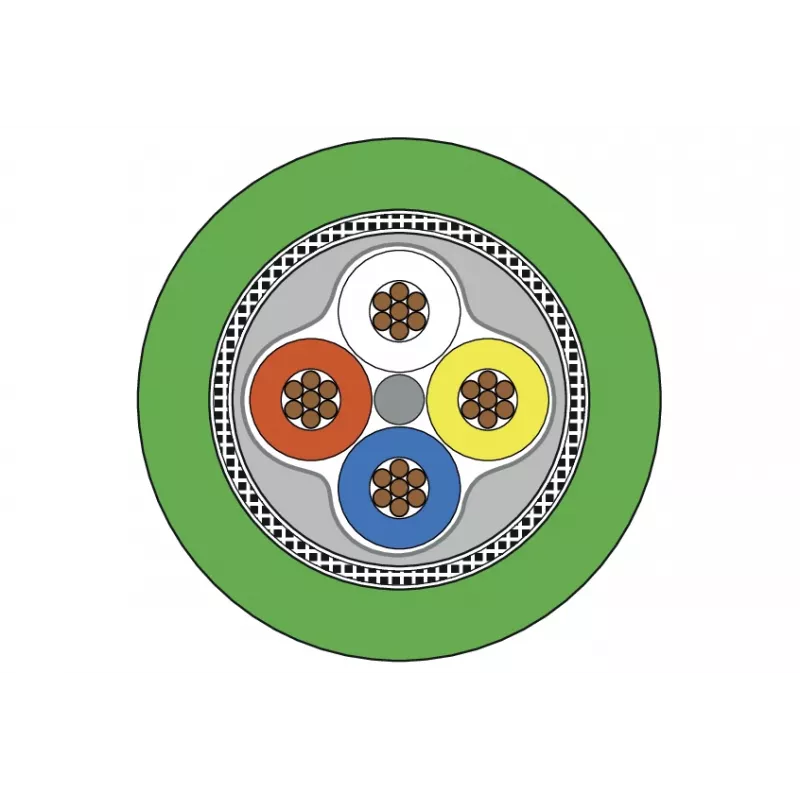

• Shielding: Overall braid shield
• Data transfer rate: 10/100 Mbit/s (Fast Ethernet)
• Conductor: Stranded copper, AWG 26/7

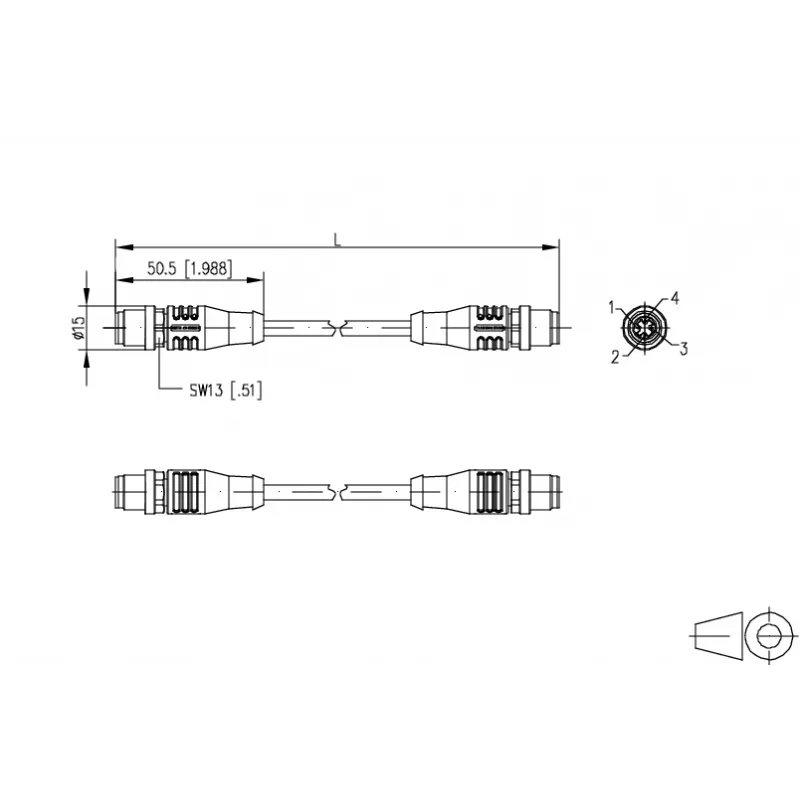

• Outer diameter: 4.7 mm
• IP rating (mated): IP67
• Operating temperature: -30 °C to +80 °C
• Standards: IEC 61076-2-101, UL Listed

Final note

For reliable data transmission in demanding industrial settings, this METZ CONNECT cable delivers the durability and secure locking you need.
