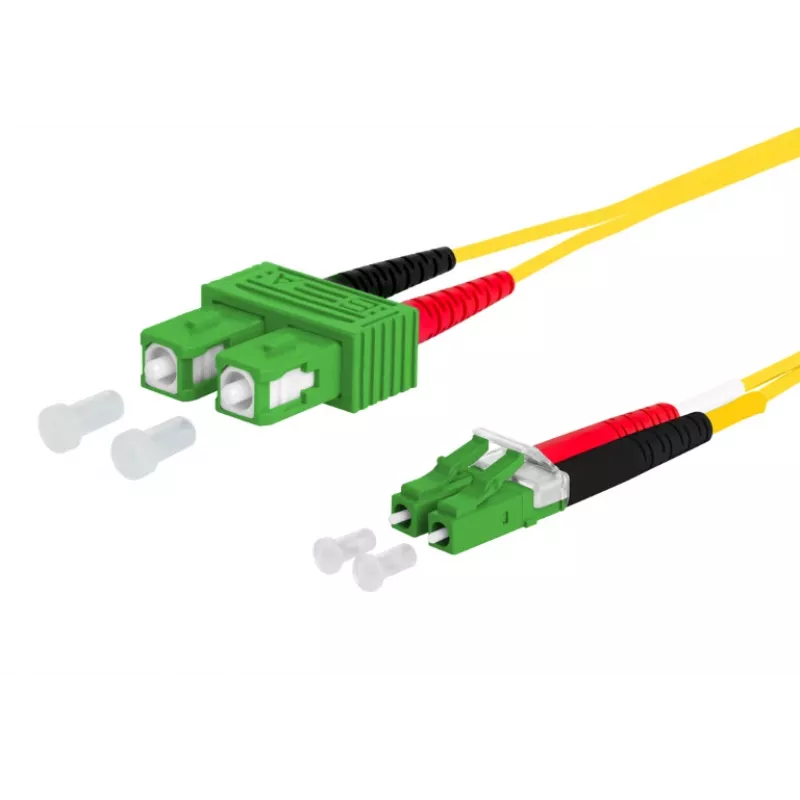

METZ CONNECT OpDAT patchkabel SC-D APC/LC-D APC OS2 1,0 m - singlemode vezel

The METZ CONNECT OpDAT Patch Cable SC-D APC/LC-D APC OS2 1.0 m is a high-performance fiber optic patch cable designed for reliable single-mode transmission in data centers, telecommunications, and FTTx networks. With duplex SC-D APC to LC-D APC connectors and OS2 fiber class, this cable ensures low insertion loss and high return loss for critical applications.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.25 dB and return loss ≥60 dB. The LSZH jacket provides safety in enclosed spaces, while the durable zirconia ceramic ferrules guarantee long-term performance. The 1.0 m length is ideal for short-distance connections in patch panels and network equipment.

Suitable for

• Data center interconnects
• Telecommunications networks
• FTTx deployments
• LAN cabling infrastructure

Key specifications

• Fiber mode: Single-mode OS2 (G.657.A1)
• Connector A: SC-D APC (Duplex)
• Connector B: LC-D APC (Duplex)
• Cable length: 1.0 m
• Number of fibers: 2 (Duplex)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Insertion loss (typical): ≤0.25 dB
• Return loss (typical): ≥60 dB
• Ferrule material: Zirconia ceramic
• Operating temperature: -20°C to +70°C
• Minimum bend radius: 30 mm
• Polarity: A-B (Crossed)
• Standards: IEC 61753-1, TIA/EIA-568-C.3, RoHS

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard SC-D APC and LC-D APC interfaces. Suitable for use with OS1 and OS2 single-mode systems.
