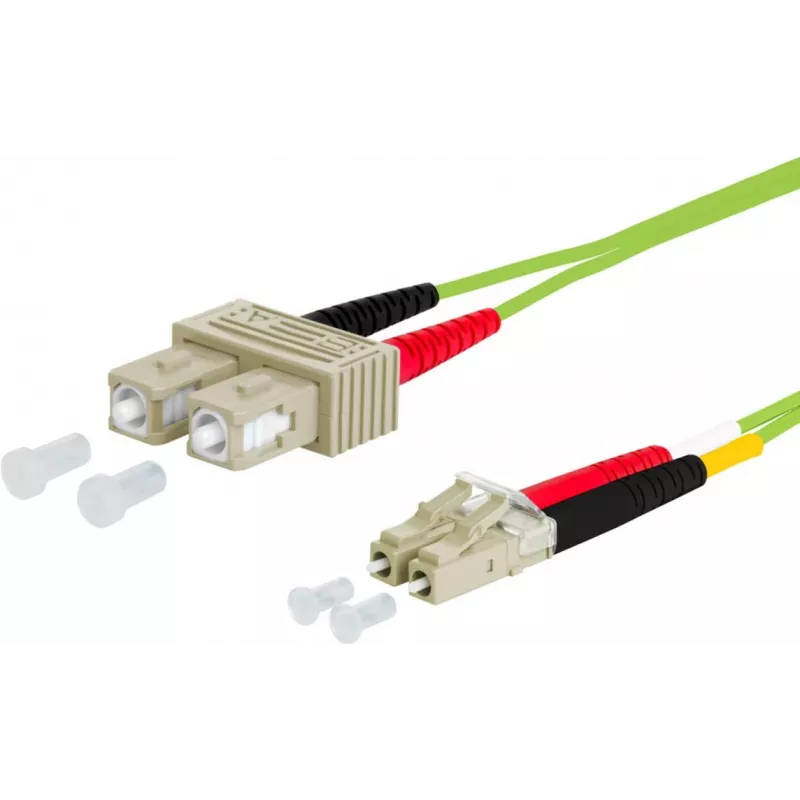

METZ CONNECT OpDAT patchkabel SC-D/LC-D OM5, 5,0 m

The METZ CONNECT OpDAT Patch Cable SC-D/LC-D OM5, 5.0 m is a high-performance fiber optic patch cable designed for demanding data center and LAN applications. It features SC duplex to LC duplex connectors and OM5 multimode fiber, supporting high-speed data transmission over short to medium distances.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring reliable signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the lime green color (RAL 6018) allows for easy identification of OM5 fiber. The duplex zipcord construction is flexible and easy to route.

Suitable for

• Data centers requiring high-density cabling
• Local Area Networks (LAN) with OM5 infrastructure
• Storage Area Networks (SAN) and FTTx applications
• High-speed connections up to 40 Gbps and beyond

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM5
• Fiber Core/Cladding: 50/125 µm
• Connector A: SC Duplex (SC-D)
• Connector B: LC Duplex (LC-D)
• Cable Length: 5.0 m
• Number of Fibers: 2
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Lime Green (RAL 6018)
• Cable Construction: Duplex Zipcord
• Cable Diameter: 2.8 mm
• Insertion Loss (max.): 0.25 dB
• Return Loss (min.): 30 dB
• Polarity: Crossed (A-B)
• Ferrule Material: Zirconia Ceramic
• Operating Temperature: -10 °C to +60 °C
• Standards Compliance: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for use with OM5 transceivers and equipment supporting 40/100 Gbps applications.
