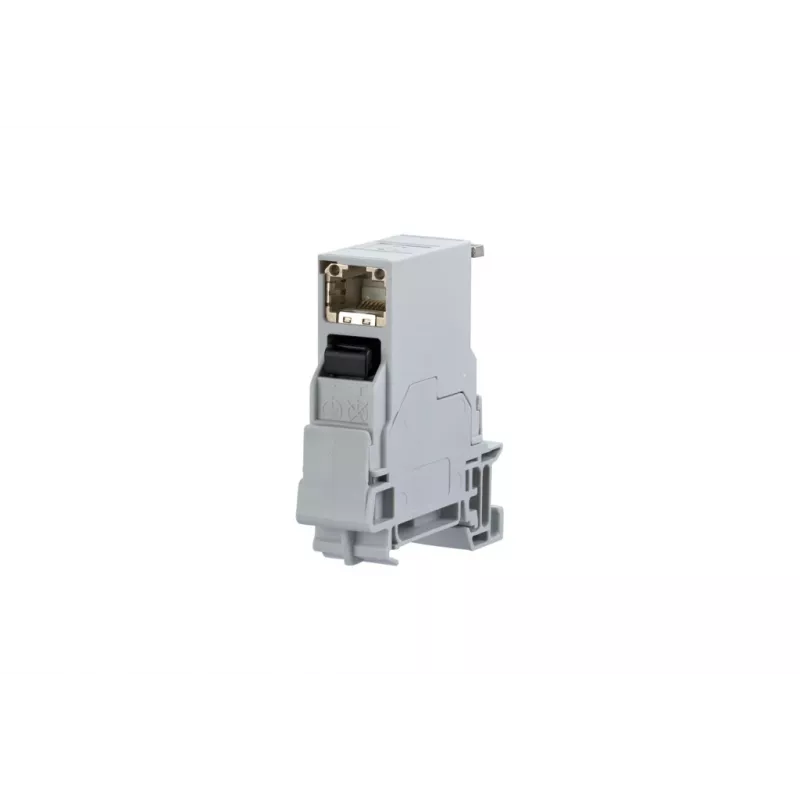

METZ CONNECT RJ45 Keystone-module Cat6A afgeschermd grijs 1401806113KE

The METZ CONNECT 1401806113KE is a high-performance shielded RJ45 keystone module designed for reliable 10 Gigabit Ethernet (10GBASE-T) connections. Engineered for Cat6A (Class EA) performance, this module meets stringent international standards including ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1: 2011-09, and TIA/EIA 568-C.2. Its robust die-cast zinc housing and gold-plated contacts ensure excellent signal integrity and durability, making it ideal for demanding enterprise networks.

Advantages

Tool-free IDC termination simplifies installation, saving time and reducing errors. The shielded design minimizes electromagnetic interference (EMI), ensuring stable data transmission. With support for PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt), it powers devices like IP cameras and wireless access points directly through the network cable.

Suitable for

• Enterprise and data center structured cabling
• High-speed network connections requiring 10GBASE-T
• Power over Ethernet (PoE) applications
• Patch panel integration in 19-inch racks

Key specifications

• Connector Type: RJ45
• Category Rating: Cat6A (Class EA)
• Shielding: Shielded
• Colour: Grey
• Module Width: 1/8 (for patch panel integration)
• Termination Type: Tool-free IDC
• Number of Ports: 1
• Housing Material: Die-cast zinc
• Contact Plating: Gold over Phosphor Bronze
• Transmission Speed: Up to 10 Gigabit Ethernet (10GBASE-T)
• Power over Ethernet (PoE) Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Standards Compliance: ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1: 2011-09, TIA/EIA 568-C.2
• Certifications: UL 1863
• Mating Cycles: >750
• Installation Type: Keystone / Snap-in module
• Operating Temperature: -40 °C to +70 °C

Recommendations

For optimal performance, pair this module with METZ CONNECT patch panels and Cat6A shielded patch cables. Ensure proper grounding of the shielded system to maximize EMI protection.
