METZ MWN911A115 M12 A-gecodeerde 4-polige sensor/actuator inbouwstekkerverbinder, paneeldoorvoer, stekker naar bus, IP67

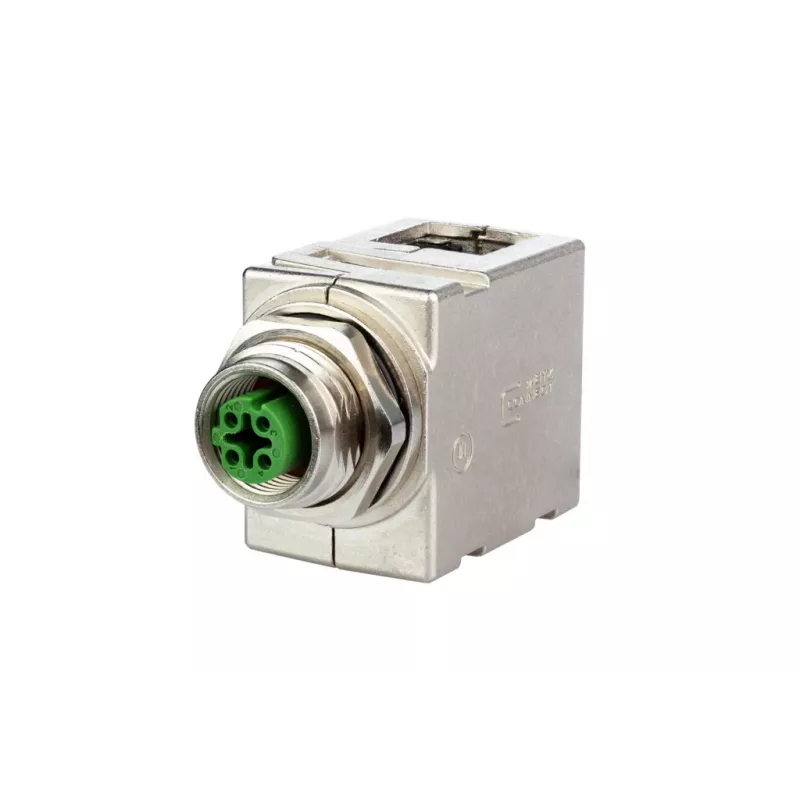

This METZ MWN911A115 is a panel-mount feed-through connector that bridges M12 connections across control cabinet walls, offering a clean and secure interface for sensor/actuator wiring in industrial environments. Unlike typical inline couplers, its flush-mount design with M16 thread allows direct installation into enclosures, maintaining IP67 protection when mated.

Highlights

• M12 A-coded 4-pole connector, male to female feed-through
• Panel mount with M16 x 1.5 mounting thread for control cabinet installation
• Rated for 250 V AC/DC and 4 A, suitable for industrial sensor/actuator circuits
• Nickel-plated zinc die-cast housing and gold-plated contacts for reliable performance
• Operating temperature range from -40 °C to +85 °C

In daily use

Install this connector in a control cabinet or enclosure wall to create a robust pass-through point for M12 connections. The A-coded 4-pole configuration is standard for many sensors and actuators, ensuring compatibility with common industrial cabling. The IP67 rating when mated provides protection against dust and temporary immersion, making it suitable for demanding environments.

Full specifications

• Connector Type: M12
• Number of Positions: 4-pole
• Coding: A-coded
• Gender (Side 1): M12 Male (Plug)
• Gender (Side 2): M12 Female (Socket)
• Mounting Type: Panel Mount / Control Cabinet Feed-through

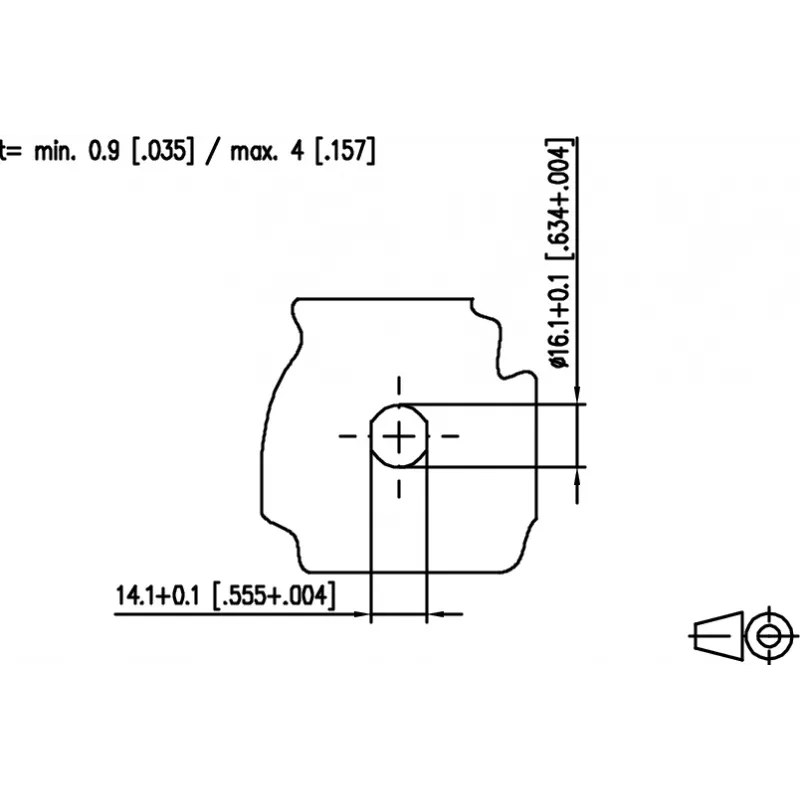

• Mounting Thread: M16 x 1.5
• Rated Voltage: 250 V AC/DC
• Rated Current: 4 A
• IP Protection Rating: IP67 (when mated)
• Housing Material: Zinc die-cast, nickel-plated
• Contact Material: CuZn, gold-plated
• Operating Temperature Range: -40 °C to +85 °C
• Insulation Resistance: > 10^8 Ω
• Contact Resistance: < 8 mΩ
• Pollution Degree: 3
• Flammability Rating (Insulating Body): UL94 V-0
• Standard Compliance: IEC 61076-2-101
• Termination: M12 Plug to M12 Socket (Feed-through)
• Application: Sensor/Actuator connections in industrial environments

Final note

A reliable feed-through solution for industrial M12 connectivity, built with quality materials for long-term performance.
