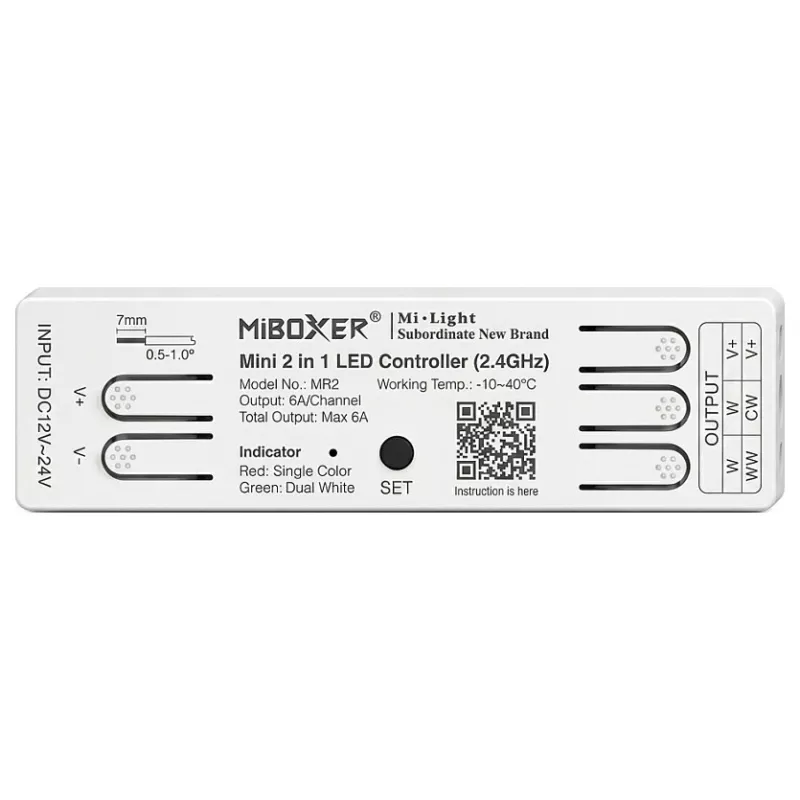

Miboxer MR2 LED-controller Mini 2in1 Single Color/Dual White 2,4GHz RF

The Miboxer MR2 LED Controller Mini 2in1 is a versatile wireless RF controller designed for single color (dimming) and dual white (CCT) LED strips. Operating on 2.4GHz, it offers reliable control up to 30 meters and is compatible with MiBoxer 2.4G remotes and gateways. With a compact mini form factor and screw terminal connections, it is ideal for indoor residential and commercial lighting installations.

Advantages

This controller supports both single color dimming and dual white color temperature adjustment, providing flexibility for various lighting needs. The 2.4GHz wireless technology ensures stable and responsive control without interference. Its compact size allows for easy integration into tight spaces, while the screw terminals simplify wiring.

Suitable for

• Indoor LED strip lighting projects requiring dimming or CCT control
• Residential and commercial lighting systems
• Integration with MiBoxer 2.4G remote controls and gateways

Key specifications

• Product Type: LED Controller
• Control Type: Wireless RF (2.4GHz)
• Supported LED Types: Single Color (DIM), Dual White (CCT)
• Input Voltage: DC 12-24V
• Output Current: Max 12A (6A per channel)
• Output Power: 144W (12V) / 288W (24V)
• Communication Protocol: MiBoxer 2.4GHz RF
• Control Distance: Up to 30 meters
• Dimming Range: 0-100%
• Dimming Method: PWM
• Number of Channels: 2
• Compatibility: MiBoxer 2.4G Remotes & Gateways (e.g., WL-Box1)
• Operating Temperature: -20°C to 60°C
• Protection Rating: IP20 (Indoor Use)
• Form Factor: Mini
• Connection Type: Screw Terminals

Recommendations

For optimal performance, use with MiBoxer 2.4G compatible remotes or gateways. Ensure power supply voltage matches the LED strip requirements. Suitable for indoor use only.
