MiBoxer TZ2 2-in-1 LED-controller voor DIN-rail, Zigbee 3.0 + RF, 12–48 V, 20 A totaal

MiBoxer TZ2 controls constant-voltage single-colour or tunable-white CCT LED strips. It combines Zigbee 3.0 and 2.4 GHz RF, allowing control through compatible MiBoxer remotes or a Zigbee system. The supply range is 12–48 V DC. Each channel is rated up to 20 A, with a shared maximum of 20 A for the whole controller.

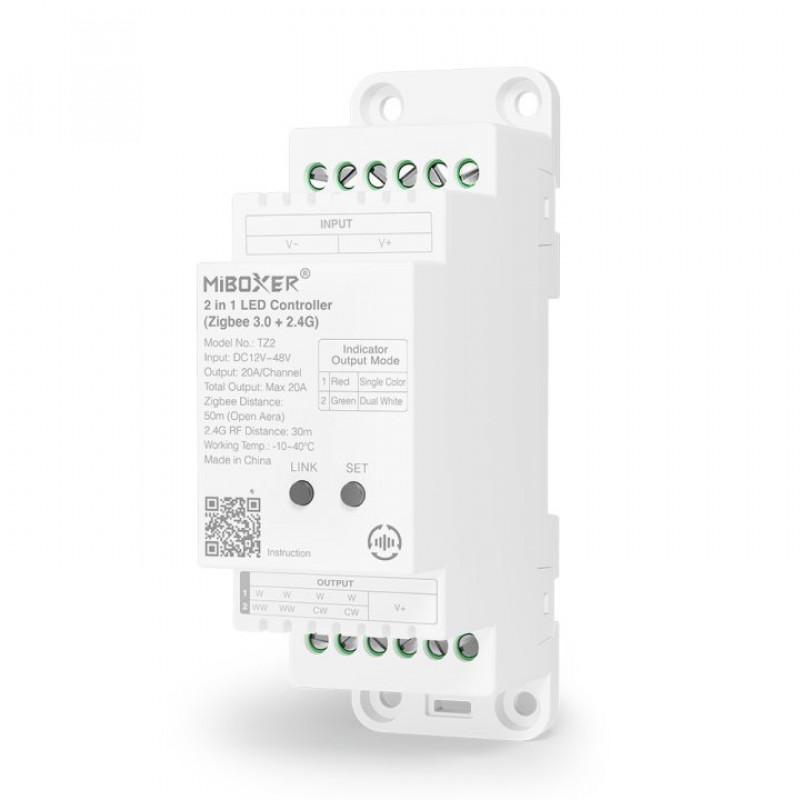

The white housing mounts on a standard 35 mm DIN rail, TS35/7.5 or TS35/15. LINK and SET buttons pair the remote and select the output mode. Tuya Smart app operation requires a separate Zigbee 3.0 gateway. Stated open-area Zigbee range is up to 50 m; RF range is up to 30 m. Protection is IP20 and the operating temperature is -10 to +40 °C. Match the power supply and LED-strip voltage and respect the total current limit.
