Microconnect FIB884007 InfiniBand-/glasvezelkabel 7 m SC geel

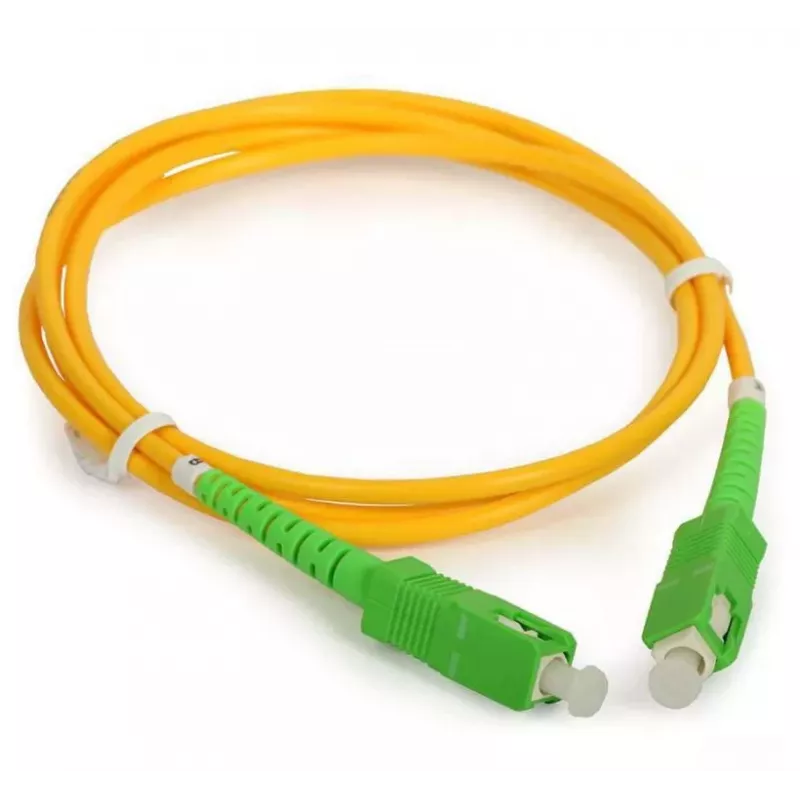

The MicroConnect FIB884007 is a 7 m single mode fibre optic patch cable with SC connectors on both ends and OS2 specification for long-distance, low-loss transmission. It has a 9 µm core diameter and full-duplex capability, making it suitable for data centres, server rooms and telecom installations where reliable single mode connections are required. The cable is yellow and manufactured with LSZH jacket materials that meet common industry standards.

Advantages

This SC–SC OS2 single mode cable supports high-speed Ethernet links including 1G, 10G, 40G and 100G, and offers low attenuation for long-distance transport: up to 10 km at 1310 nm and up to 40 km at 1550 nm. The 7 m length provides flexibility for patching between racks or equipment, while the LSZH jacket reduces smoke and toxic gas emission in case of fire and conforms to IEC/EIA-TIA/Telcordia requirements.

Suitable for

• Data centres and server farms
• Telecom rooms and central offices
• Connecting switches, transceivers and patch panels
• High-speed Ethernet links (1G/10G/40G/100G)

Key specifications

• Manufacturer: MicroConnect
• Model: FIB884007
• Length: 7 m
• Connector type: SC — SC (both ends)
• Fibre type: Single mode OS2, 9 µm core
• Jacket: LSZH
• Colour: Yellow
• Full duplex: Yes
• EAN: 5704174271925

How to use

Route the fibre patch cable between the appropriate SC ports on network equipment, transceivers or patch panels, taking care to avoid sharp bends and excessive tension. Ensure connectors and ports are clean before insertion to maintain low loss. Use proper cable management in racks and conduits to protect the LSZH jacket and preserve signal integrity over the installed 7 m run.

Recommendations

For best performance, keep bend radius within manufacturer guidelines, store and handle connectors with dust caps until installation, and use this single mode OS2 cable for long-distance or high-speed links where low attenuation is required.
