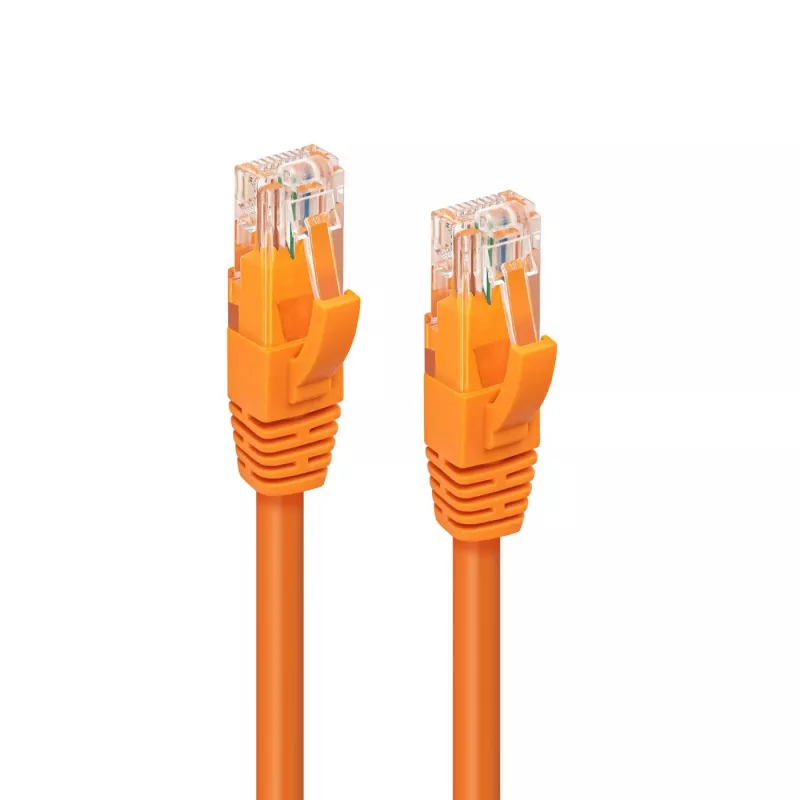

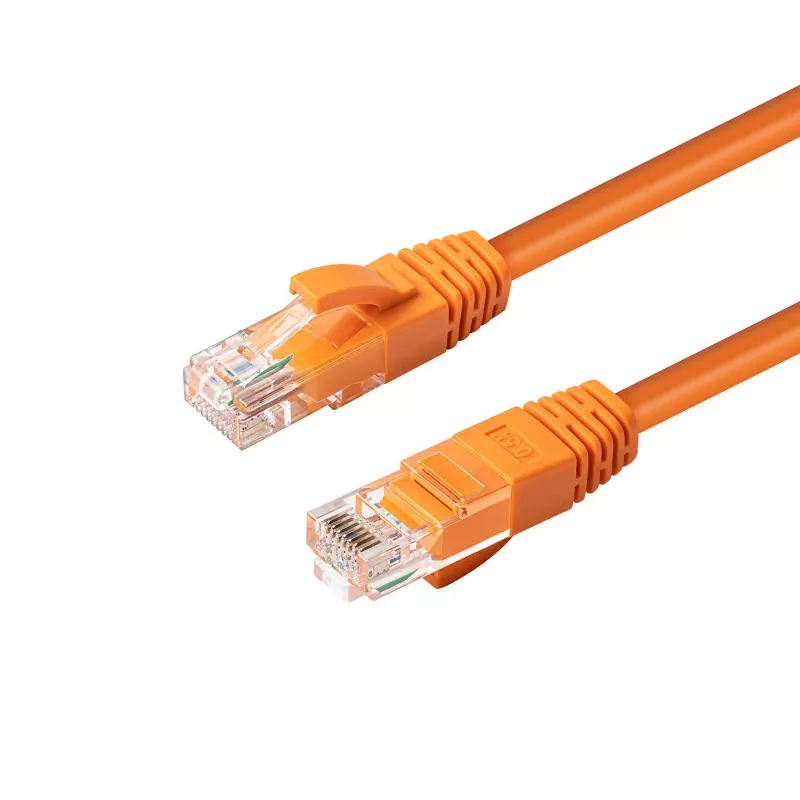

Microconnect MC-UTP6A03O netwerkkabel oranje 3 m Cat6a U/UTP (UTP)

The MicroConnect CAT6a Patch Cable (MC-UTP6A03O) is a 3 m U/UTP networking cable in orange, designed for high-speed wired networks. It supports data rates up to 10 000 Mbit/s and frequencies up to 500 MHz, and is fitted with RJ-45 connectors on both ends with 50 µ" gold plating for improved conductivity. The cable includes latch protection to reduce the risk of clip breakage and has meter markings on the boot for quick length identification.

Advantages

This Cat6a cable provides support for 10 Gbit Ethernet and high bandwidth up to 500 MHz, making it suitable for demanding network environments. Gold-plated 50 µ" RJ45 contacts improve signal integrity and reduce contact resistance. Latch protection extends connector life by protecting the clip, and printed meter markings on the boot make it easy to identify the cable length during installation and maintenance.

Suitable for

• 10 Gbit Ethernet links in data centers and server rooms
• High-bandwidth office networks and professional workstations
• Patch panels, switches and wall outlets requiring Cat6a cabling

Key specifications

• Standard: Cat6a (U/UTP)
• Length: 3 m
• Connectors: RJ-45 — RJ-45
• Maximum data rate: up to 10 000 Mbit/s
• Frequency: up to 500 MHz
• Contact plating: 50 µ" gold
• Colour: Orange
• Weight: 0.07 kg

How to use

Connect one RJ-45 plug to a network device (switch, router, PC or patch panel) and the other plug to the corresponding port. Ensure the connectors are fully inserted until the latch clicks and the latch protection is in place. Use the meter markings on the boot to confirm cable length during routing and installation. Avoid sharp bends and heavy crushing of the cable to maintain performance.

Recommendations

For optimal performance, install the cable following structured cabling practices: maintain proper bend radius, separate from strong electrical sources to minimize interference, and use Cat6a-compliant patch panels and keystone jacks. Replace cables that show visible damage to connectors or sheath.
