MicroConnect netwerkkabel-tester-set 10 (CAB-TEST5) met RJ45-, RJ11/RJ12-, BNC-, USB-testers en 8 ID-afstandsbedieningen

The MicroConnect CAB-TEST5 Network Cable Tester Set 10 stands out from typical single-port testers by combining RJ45, RJ11/RJ12, BNC, and USB testing in one compact kit. It includes eight ID remote units, allowing you to identify and verify multiple cable runs in a single pass—ideal for structured cabling, patch panels, and network installations.

Highlights

• Tests RJ45 (UTP/STP), RJ11/RJ12, BNC, and USB Type A cables
• Detects continuity, open, short, cross, reverse, and split pair faults
• Supports cable lengths up to 300 m (1000 ft)
• Includes 1 standard remote unit and 8 ID remote units (ID1–ID8)
• Supplied with BNC-to-RJ45, USB-to-RJ45, and RJ11-to-RJ45 adapters
• LED indicators for clear pass/fail status
• Single test and loop test modes
• Automatic shutdown to conserve battery
• Durable ABS plastic housing

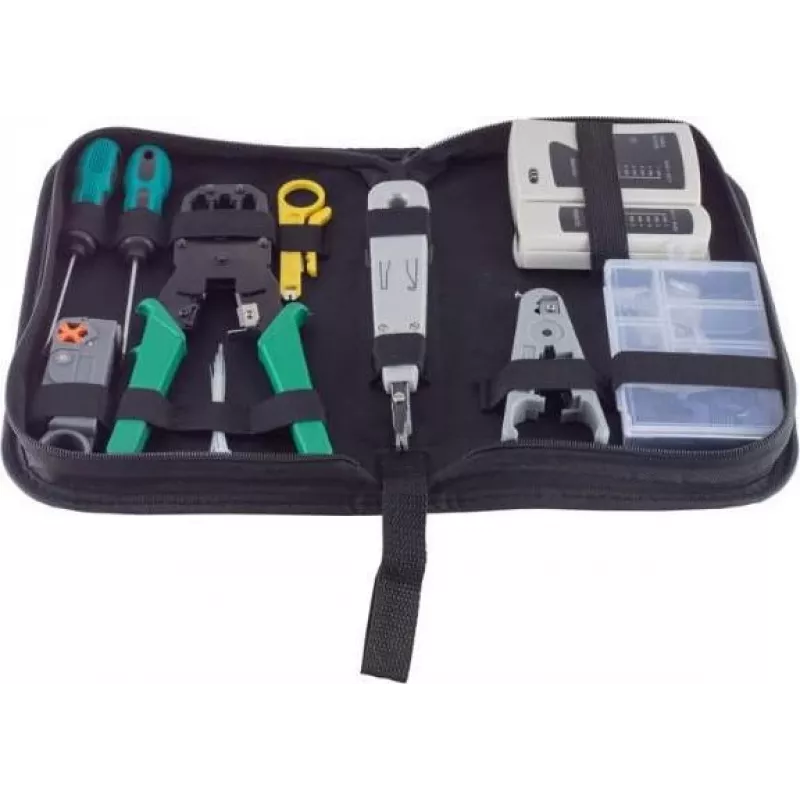

• Comes with a protective carrying case

In daily use

The main unit and standard remote feature RJ45, RJ11, BNC, and USB Type A ports, so you can test a wide variety of cables without swapping testers. For multi-drop installations, connect up to eight ID remotes to different cable ends and the main unit will display which remote corresponds to each line—saving time and reducing errors. The loop test mode is especially useful for verifying long runs or cables already installed in walls. A 9V battery powers the main unit (not included), and automatic shutdown helps extend battery life.

Full specifications

• Supported cable types: RJ45 (UTP/STP), RJ11/RJ12, BNC, USB Type A
• Test functions: continuity, open, short, cross, reverse, split pair
• Max cable length: 300 m (1000 ft)
• Display: LED indicators
• Power source (main unit): 1x 9V battery (not included)
• Included remote units: 1x standard remote, 8x ID remotes (ID1–ID8)
• Included adapters: BNC-to-RJ45, USB-to-RJ45, RJ11-to-RJ45
• Included accessories: carrying case
• Test modes: single test, loop test
• Automatic shutdown: yes
• Housing material: ABS plastic
• Operating temperature: 0–50 °C
• Storage temperature: -10–50 °C
• Certifications: CE, RoHS
• Main unit ports: RJ45, RJ11, BNC, USB Type A
• Standard remote unit ports: RJ45, RJ11, BNC, USB Type A
• ID remote unit ports: RJ45

Final note

The MicroConnect CAB-TEST5 is a versatile, all-in-one cable testing solution for network technicians and installers who need reliable verification across multiple cable types and runs.
