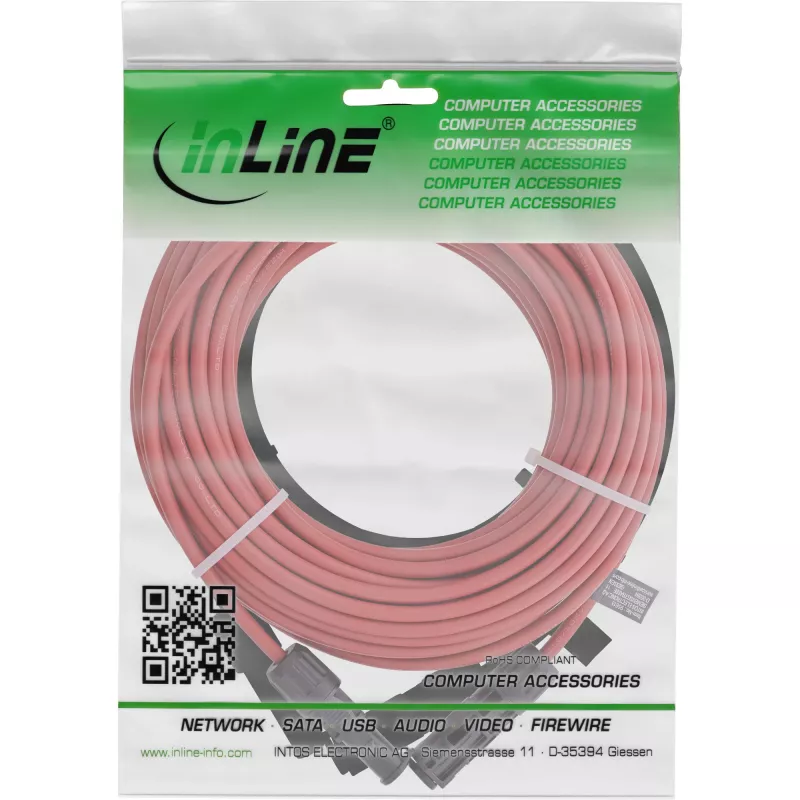

Middenspanningskabel InLine 95412 rood zwart 1500V 12,5m

The solar cable H1Z2Z2-K 4mm² with solar plug set (red/black) is designed for wiring photovoltaic systems, providing reliable and durable electrical connections. Its robust construction and protective features support stable power transmission and long-term operation of PV installations. Note on cross-section: the required conductor size depends on current and cable length; consult a solar technician if unsure.

Advantages

The H1Z2Z2-K 4mm² cable offers UV-resistant and weatherproof insulation, good mechanical strength and flexible handling for installation. The included pair of solar plugs (red and black) ensures polarity-safe connections. The cable is rated for photovoltaic use and supports safe operation at system voltages up to 1500 V when installed according to applicable standards.

Suitable for

• Interconnection of PV modules in rooftop and ground-mounted solar arrays
• DC cabling between module strings and combiner boxes
• Connections where a 4mm² conductor cross-section is appropriate

Key specifications

• Cable type: H1Z2Z2-K solar cable
• Conductor cross-section: 4 mm²
• Included accessories: solar plug set (red and black)
• Maximum operating voltage: up to 1500 V (system-dependent)
• Length/diameter (product example): 12.5 m length, 5.5 mm diameter, insulation thickness 0.7 mm (InLine 95412)

How to use

Strip the conductor ends to the appropriate length, insert and secure the solar plugs according to the plug manufacturer's instructions, and route the cable avoiding sharp edges and heat sources. Ensure correct polarity when connecting red and black plugs. Make all terminations and connections following local electrical regulations and PV installation standards.

Recommendations

Choose the correct conductor cross-section based on the expected current and cable run length; when in doubt consult a qualified solar technician. Store and install the cable protected from prolonged exposure to chemicals or mechanical damage.
