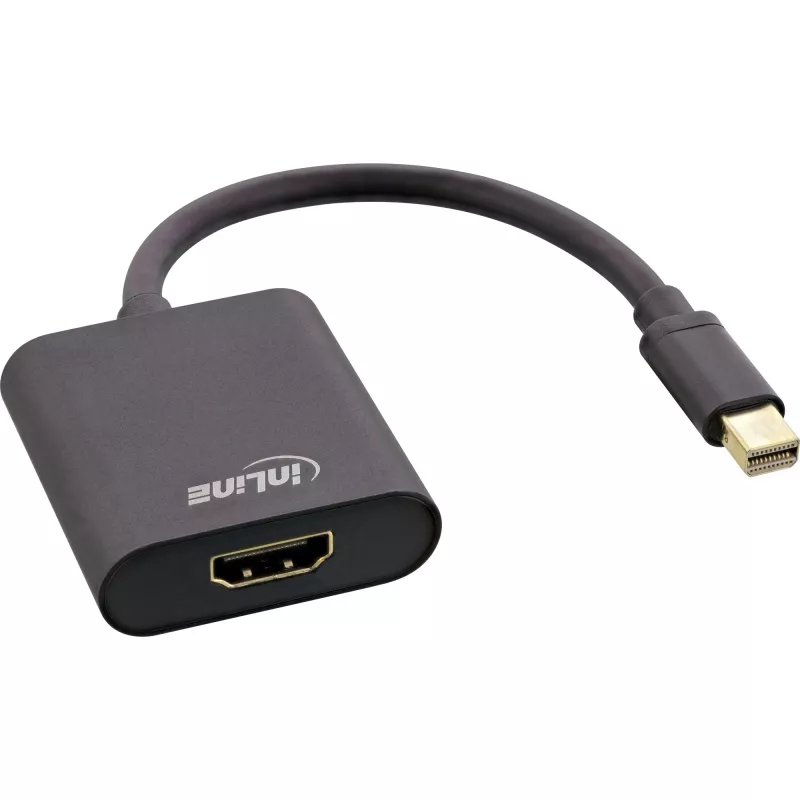

Mini DisplayPort naar HDMI-adapter InLine 4K/60Hz met audio, aluminium, 0,15 m, zwart

Active signal conversion for reliable image quality:The integrated Parade PS176 chipset enables stable transmission from Mini DisplayPort to HDMI – even at high resolutions.
4K at 60Hz for professional applications:Transmits image and sound signals in Ultra HD resolution – ideal for high-quality presentations and modern workplaces.
High-quality construction for continuous use:With solid copper wires, triple shielding and gold-plated contacts for a long-lasting and interference-free connection.
Maximum compatibility with DisplayPort 1.2a and HDMI 2.0:Ideal for use with current IT systems and AV infrastructures in offices, conference rooms or training facilities.
Easy to integrate without driver installation:Plug & Play solution for quick setup – saves time during system changes or temporary installations.

The InLine® Mini DisplayPort to HDMI converter cable is a reliable solution for actively converting digital video and audio signals. It transmits content in 4K resolution at 60Hz, making it ideal for professional applications such as conference rooms, training environments or demanding workplace concepts. The built-in Parade PS176 chipset actively converts the signal, enabling stable image and sound transmission even in high-resolution applications. The robust design with solid copper wires, triple shielding and gold-plated contacts provides reliable protection against interference and ensures a long service life. Compatibility with DisplayPort 1.2a and HDMI 2.0 allows use with numerous modern devices. The plug & play function makes integration particularly easy – without the need for additional driver installation.

DisplayPort 1.2a and High Speed HDMI 2.0 compatible
Signal direction: Computer Mini DisplayPort output to HDMI monitor input
Solid copper wires
Triple-shielded cable
Gold-plated contacts
For the transmission of video and audio signals
Data transfer rate up to 18 Gb/s
Resolution up to 3840 × 2160 at 60 Hz with RGB or YCbCr4:4:4

InLine Mini DisplayPort HDMI Adaptor Aluminum with Audio, 4K/60Hz, black, 0.15m. Cable length: 0.15 m, Connector 1: Mini DisplayPort, Connector 2: HDMI. Weight: 25 g, Width: 40 mm, Depth: 200 mm. Package width: 120 mm, Package depth: 195 mm, Package height: 30 mm. Dimensions (WxDxH): 40 x 200 x 13 mm

How to use

Connect the Mini DisplayPort plug to the Mini DisplayPort output of your laptop, mini-PC or workstation. Plug an HDMI cable from the adapter’s HDMI-A female port to the HDMI input of the display, TV or projector. Power on both source and display; the adapter performs active conversion automatically and should be recognized by the operating system without installing drivers. If the display does not show the expected resolution, check display settings and select the output resolution and refresh rate to 3840 × 2160 at 60 Hz where supported.

Recommendations

For optimal performance, use a high-quality HDMI cable rated for HDMI 2.0 or higher and set the source to output 4K at 60 Hz with appropriate color format. Avoid excessive cable bending near the connectors and keep the short adapter cable unobstructed for a stable connection. When using older displays, verify EDID and set resolution manually if necessary.
