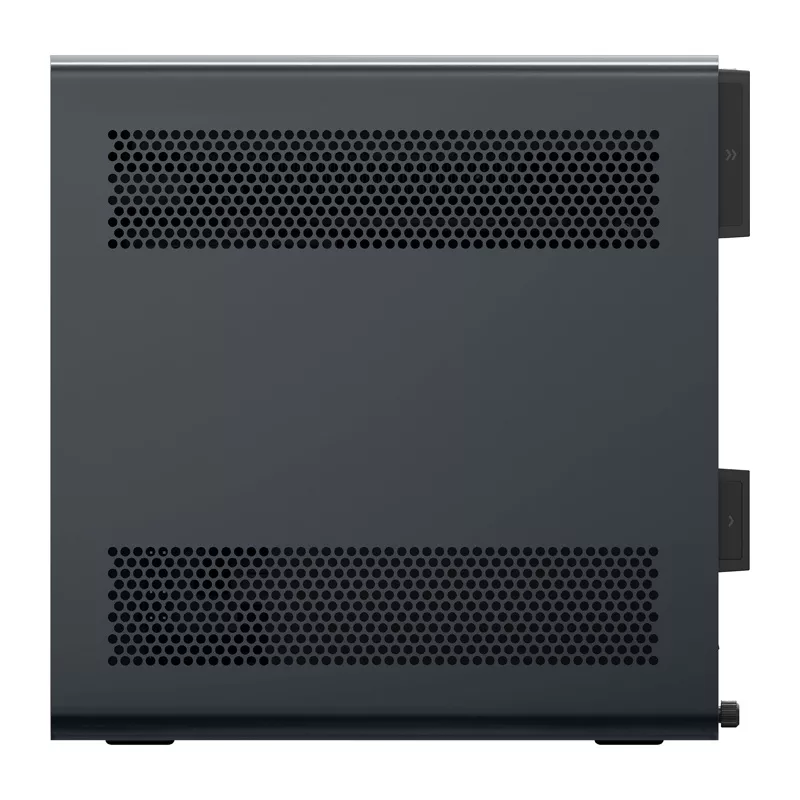

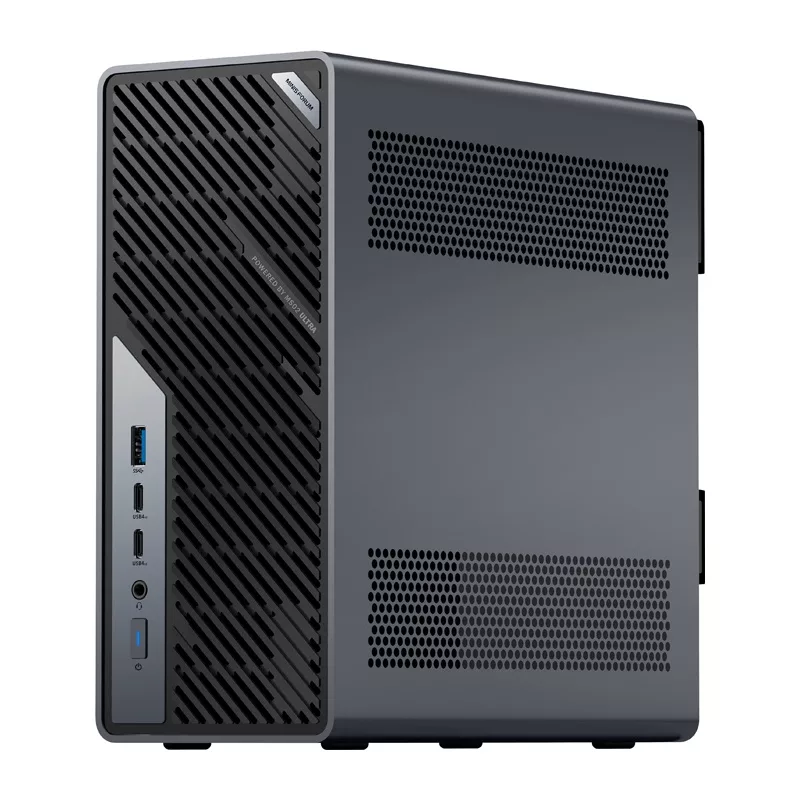

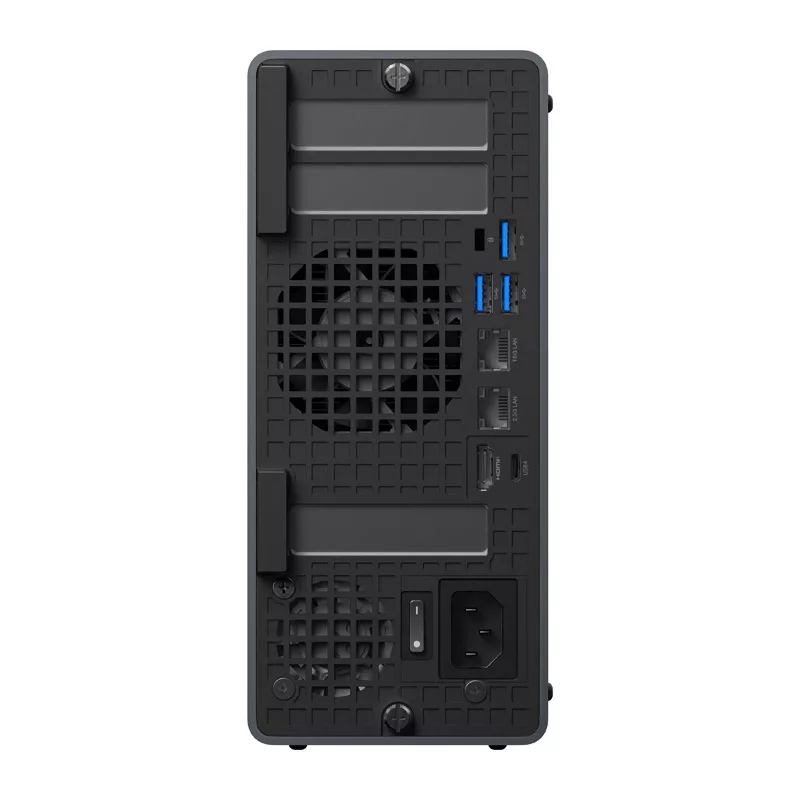

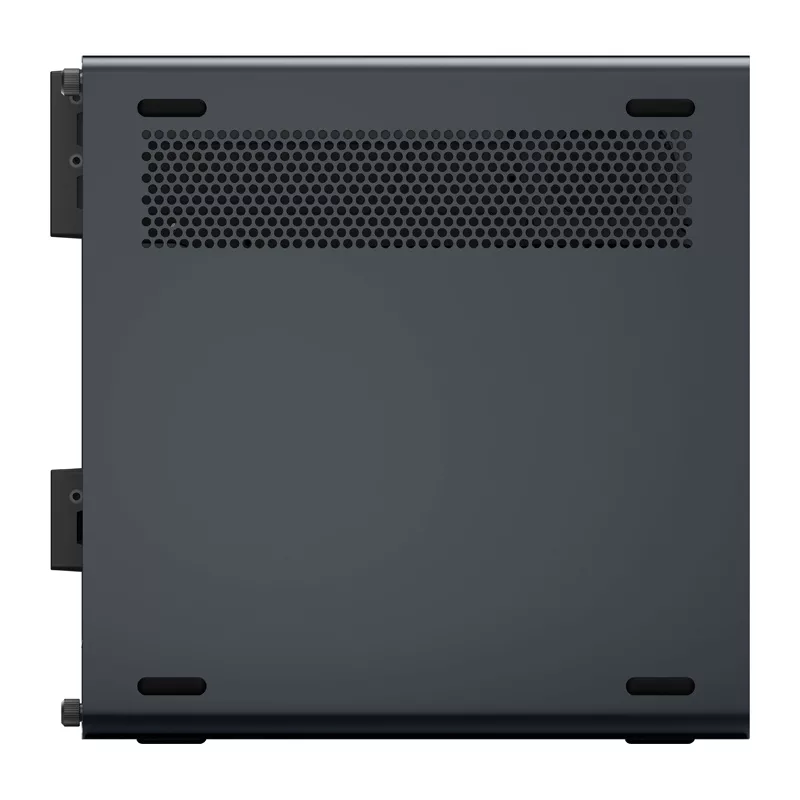

MINIS FORUM MS-02U-235HX Intel Core Ultra 5 235HX barebone mini-pc

The MINIS FORUM MS-02U-235HX is a high-performance barebone mini PC powered by the Intel Core Ultra 5 235HX processor. Designed for professionals and enthusiasts, it offers exceptional computing power, advanced connectivity, and a compact form factor suitable for various demanding applications.

Advantages

Equipped with the latest Intel Core Ultra 5 235HX (14 cores, 20 threads, up to 4.8 GHz) and Intel Arc Graphics, this mini PC delivers outstanding performance for multitasking, content creation, and light gaming. Its barebone configuration allows you to customize RAM and storage to your exact needs, while the dual-channel DDR5 SODIMM support (up to 96GB) ensures fast data processing. The inclusion of 10 Gigabit Ethernet and Wi-Fi 6E provides blazing-fast network speeds, and the multiple USB4 Type-C ports with DisplayPort Alt Mode enable versatile display setups.

Suitable for

• Business professionals requiring a powerful yet compact workstation
• Home office users seeking a silent and efficient desktop
• Digital signage and kiosk applications
• Media servers and home theater PCs
• Developers and IT enthusiasts needing a customizable platform

Key specifications

• Processor: Intel Core Ultra 5 235HX (14 Cores, 20 Threads, up to 4.8 GHz)
• Graphics: Intel Arc Graphics (Integrated)
• Memory: 2x DDR5 SODIMM slots, up to 96GB (5600MHz)
• Storage: 1x M.2 2280 PCIe 5.0, 1x M.2 2280 PCIe 4.0, 1x 2.5-inch SATA
• Ethernet: 1x 10 Gigabit, 2x 2.5 Gigabit
• Wireless: Wi-Fi 6E (Intel AX210), Bluetooth 5.3
• Video Output: 2x HDMI 2.1, 2x USB4 Type-C (DP Alt Mode)
• USB Ports: 2x USB4 Type-C, 4x USB 3.2 Gen2 Type-A, 1x USB 2.0 Type-A
• Expansion: 1x OCuLink (PCIe 4.0 x4)
• Power: 19V DC, 230W adapter
• Form Factor: Mini PC, VESA mount compatible

Recommendations

For optimal performance, pair with DDR5-5600MHz SODIMM modules and a high-speed NVMe SSD. The barebone system is ideal for users who want to select their own memory and storage components. Ensure adequate ventilation for sustained workloads.
