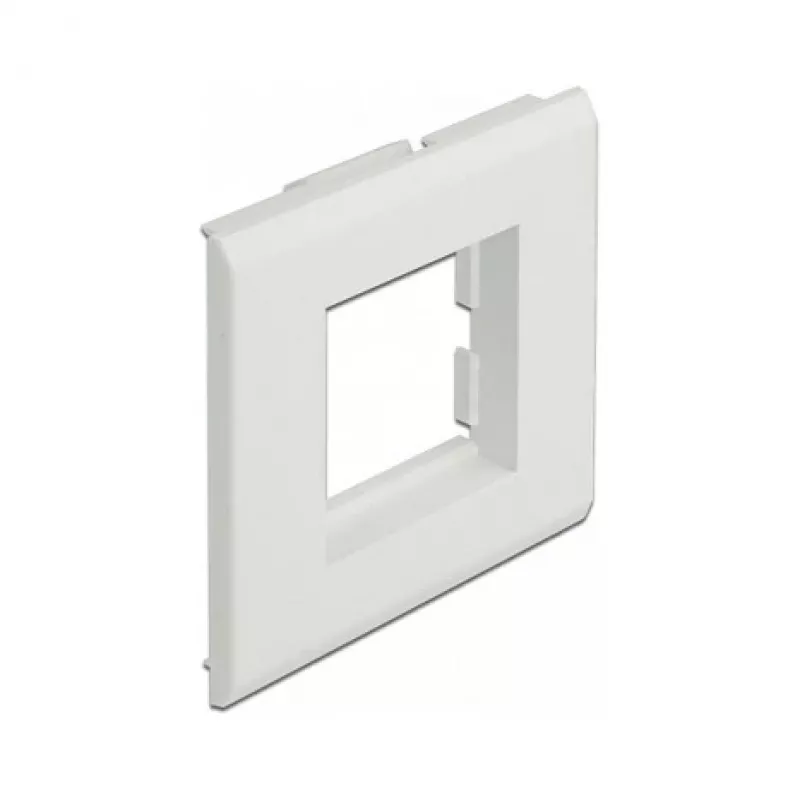

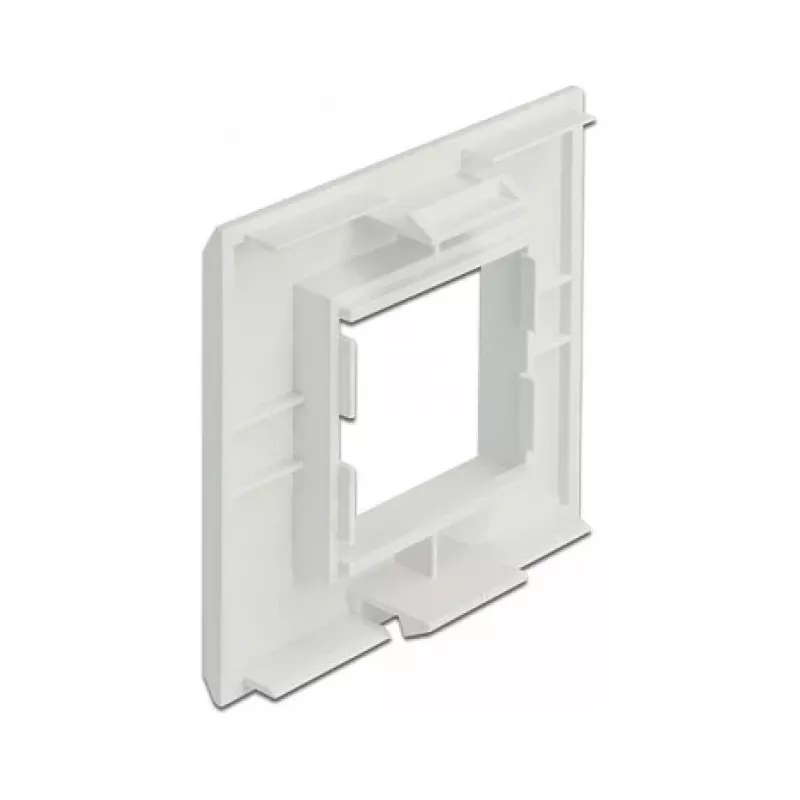

Modulehouder DeLOCK Easy 45 85 x 80 mm

The DeLOCK Easy 45 module holder is designed to accommodate one 45 x 45 mm module or two 22.5 x 45 mm modules. It fits installation trunking with an opening of approximately 76.5 mm and is made from durable ABS material. The compact holder measures 85 x 80 mm (product name dimensions), has a thickness of 8.5 cm as stated by the manufacturer, and comes in screwless form for tool-free mounting; the unit snaps into the trunking opening. The product is manufactured in Taiwan and is supplied in a plastic bag.

Advantages

The screwless design enables quick, tool-free installation into compatible trunking. The holder supports both single 45 x 45 mm modules and dual 22.5 x 45 mm modules, allowing flexible configuration. Constructed from ABS, it provides durable support for Easy 45 standardised modules and maintains compatibility with common audiovisual and data interfaces.

Suitable for

• Mounting Easy 45 modules in installation trunking with ~76.5 mm opening
• Integrating sockets, HDMI, USB and similar Easy 45 modules
• Office, conference room or residential AV and data outlets

Key specifications

• Model: Module Holder DeLOCK Easy 45 85 x 80 mm (MPN: 81315)
• Compatibility: one 45 x 45 mm module or two 22.5 x 45 mm modules
• Trunking opening: approx. 76.5 mm
• Material: ABS
• Dimensions (manufacturer): 85 x 80 mm; thickness stated as 8.5 cm
• Installation: screwless, snap-in
• Packaging: plastic bag
• Made in: Taiwan
• EAN: 4043619813155

How to use

Choose the desired Easy 45 modules (one 45 x 45 mm or two 22.5 x 45 mm) and insert them into the holder according to the module orientation. Position the module holder into the trunking opening of approximately 76.5 mm and press until it snaps into place. No tools are required; to remove, apply gentle pressure to release the snap fit and pull the holder from the trunking. After installation, connect the cabling to the mounted modules following the module manufacturer’s instructions.

Recommendations

Verify that the installation trunking opening matches the stated ~76.5 mm before installation and select compatible Easy 45 modules. Avoid excessive force when snapping the holder into place to prevent damage to the trunking or holder.
