Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

36 mnd.

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

0 reviews • Review schrijven

328,56 €

Je ontvangt +1,22 €

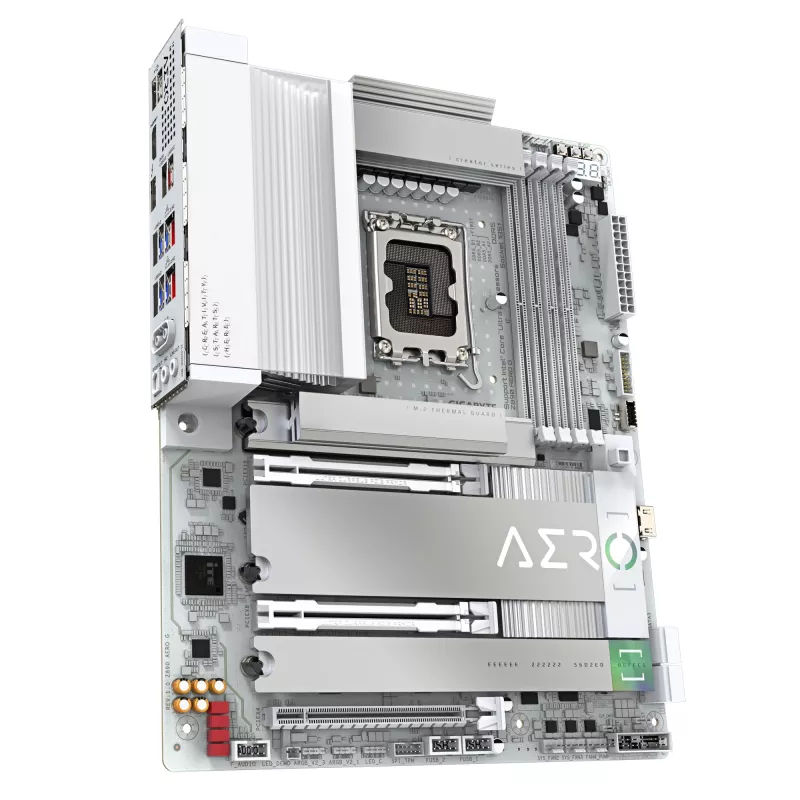

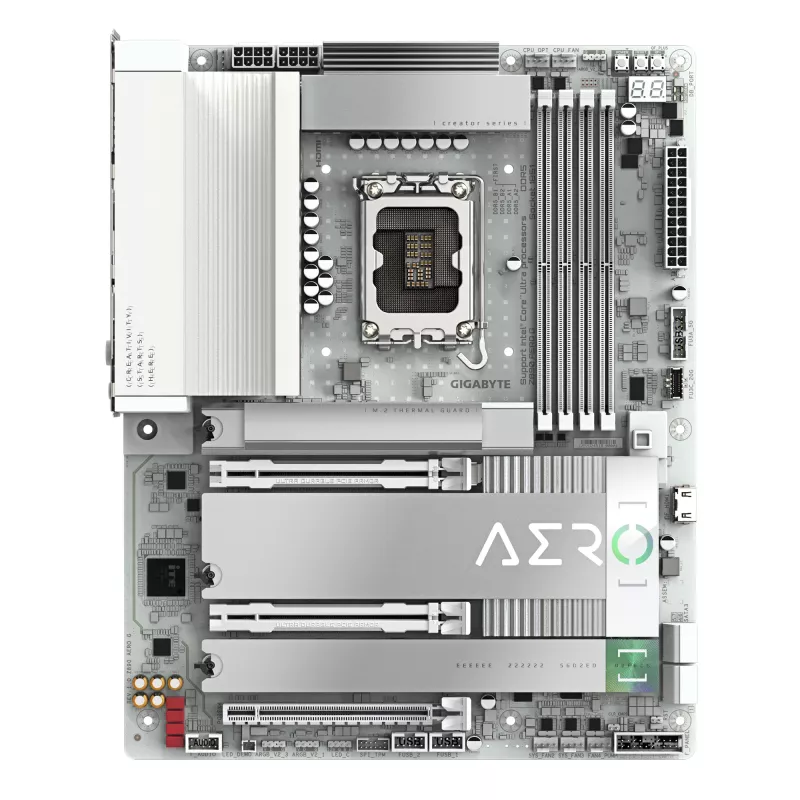

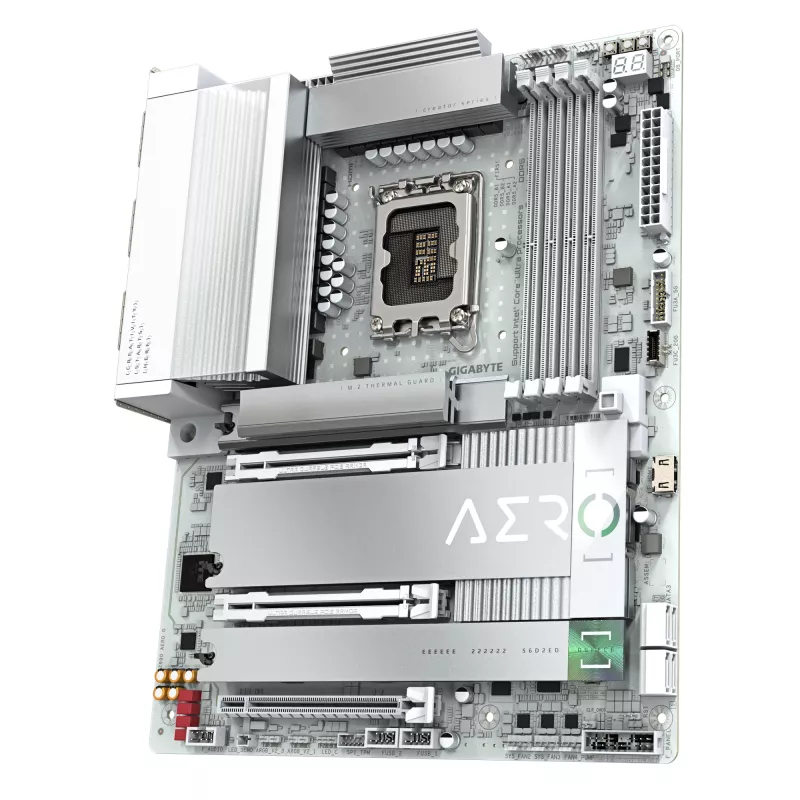

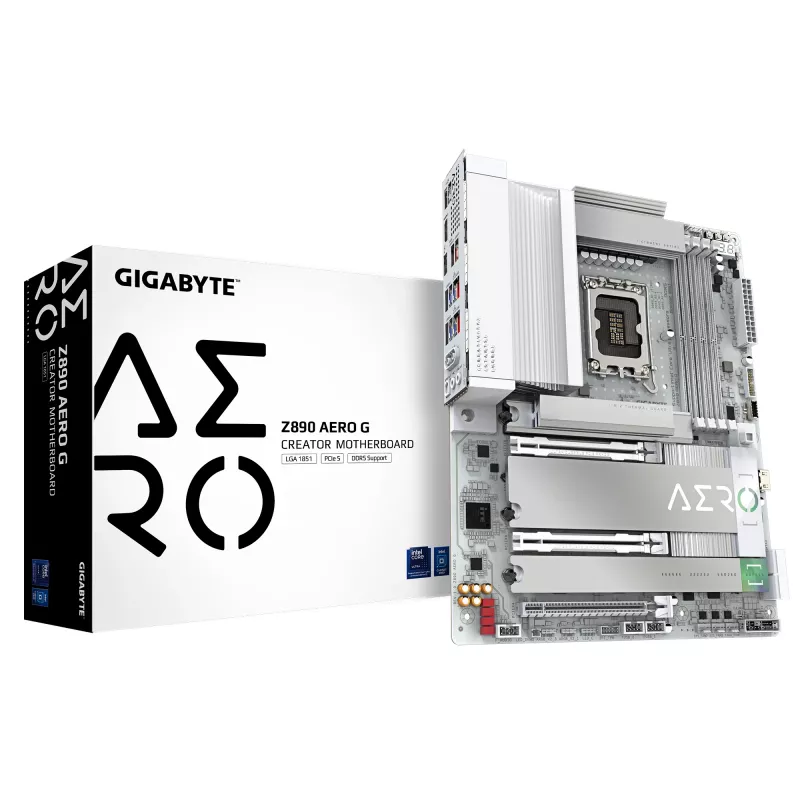

The GIGABYTE Z890 AERO G is an ATX motherboard designed for high-performance PC builds, compatible with Intel Core Ultra (Series 2) processors in the LGA 1851 (Socket V1) format. It features a 16+1+2 phase VRM design, support for DDR5 memory up to 8800 MHz (OC), four memory slots with a maximum inte... Lees meer

Aantal

In winkelwagen

Op verlanglijst Vergelijk dit product

Voorraad 13 Code 29954 Merk GIGABYTE Model Z890 AERO G Garantie 3 jaar

Bezorging & retourneren

Verwachte bezorgdatum donderdag, oktober 22

Je blijft op de hoogte via ons uitgebreide trackingsysteem

Betaalopties

BetaalkaartVisaMastercardPayPalApple PayGoogle PayBankoverschrijving

Moederbord ASRock B650 Steel Legend WiFi — AMD B650, socket AM5, ATX, DDR5, 4x DIMM, 192 GB, Wi‑Fi 6E, 2,5 Gb LAN

Snel bekijken

Moederbord ASRock B650 Steel Legend WiFi — AMD B650, socket AM5, ATX, DDR5, 4x DIMM, 192 GB, Wi‑Fi 6E, 2,5 Gb LAN

185,75 €

Excl. btw:153,51 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Socket AM5 ATX

Snel bekijken

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Socket AM5 ATX

358,86 €

Excl. btw:296,58 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASUS PRIME H610M-A WIFI D4 — Intel H610, LGA1700, micro ATX, DDR4, 2x DIMM, Wi‑Fi 5, Bluetooth 5.0, 2x M.2, HDMI 2.1, DP 1.4

Snel bekijken

Moederbord ASUS PRIME H610M-A WIFI D4 — Intel H610, LGA1700, micro ATX, DDR4, 2x DIMM, Wi‑Fi 5, Bluetooth 5.0, 2x M.2, HDMI 2.1, DP 1.4

103,00 €

Excl. btw:85,13 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASUS PRIME B760-PLUS D4 Intel B760 LGA 1700 ATX

Snel bekijken

ASUS PRIME B760-PLUS D4 Intel B760 LGA 1700 ATX

125,51 €

Excl. btw:103,73 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASRock X870 Riptide WiFi — ATX, AMD X870, Socket AM5, DDR5, 4 DIMM, 256 GB, Wi-Fi 7, 2,5GbE

Snel bekijken

Moederbord ASRock X870 Riptide WiFi — ATX, AMD X870, Socket AM5, DDR5, 4 DIMM, 256 GB, Wi-Fi 7, 2,5GbE

234,42 €

Excl. btw:193,74 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord MSI MAG X870E TOMAHAWK WIFI — AMD X870E, Socket AM5, ATX, 4x DDR5 DIMM, 4x M.2, Wi‑Fi, 5Gb Ethernet

Snel bekijken

Moederbord MSI MAG X870E TOMAHAWK WIFI — AMD X870E, Socket AM5, ATX, 4x DDR5 DIMM, 4x M.2, Wi‑Fi, 5Gb Ethernet

359,63 €

Excl. btw:297,22 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord MSI MAG B850 TOMAHAWK MAX WIFI — AMD B850, socket AM5, ATX, DDR5, 4×M.2, Wi-Fi 7, 5Gb LAN, 7.1 audio

Snel bekijken

Moederbord MSI MAG B850 TOMAHAWK MAX WIFI — AMD B850, socket AM5, ATX, DDR5, 4×M.2, Wi-Fi 7, 5Gb LAN, 7.1 audio

291,84 €

Excl. btw:241,19 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASUS ProArt X870E-CREATOR WIFI AMD X870E socket AM5 ATX

Snel bekijken

ASUS ProArt X870E-CREATOR WIFI AMD X870E socket AM5 ATX

508,21 €

Excl. btw:420,01 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASRock B850 LiveMixer WiFi ATX-moederbord

Snel bekijken

ASRock B850 LiveMixer WiFi ATX-moederbord

200,76 €

Excl. btw:165,91 €

In winkelwagen Op verlanglijst Vergelijk dit product

GIGABYTE B760 DS3H GEN5 moederbord - ondersteunt Intel Core CPU's van de 14e gen., 8+2+1 fasen digitaal VRM, tot 5600 MHz DDR5, 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 2x2

Snel bekijken

GIGABYTE B760 DS3H GEN5 moederbord - ondersteunt Intel Core CPU's van de 14e gen., 8+2+1 fasen digitaal VRM, tot 5600 MHz DDR5, 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 2x2

99,60 €

Excl. btw:82,32 €

In winkelwagen Op verlanglijst Vergelijk dit product

The GIGABYTE Z890 AERO G is an ATX motherboard designed for high-performance PC builds, compatible with Intel Core Ultra (Series 2) processors in the LGA 1851 (Socket V1) format. It features a 16+1+2 phase VRM design, support for DDR5 memory up to 8800 MHz (OC), four memory slots with a maximum internal memory of 256 GB, one PCIe 5.0 slot and four PCIe 4.0 slots, plus modern connectivity including Wi‑Fi 7, 2.5GbE LAN and Thunderbolt 4. The board supports both HDD and SSD storage options and is intended for users requiring a stable, feature-rich platform for demanding workloads.

Advantages

The motherboard provides robust power delivery through its 16+1+2 phase VRM for stable CPU operation under heavy load. High-speed DDR5 memory support and multiple PCIe slots allow for flexible expansion and improved system responsiveness. Integrated connectivity such as Wi‑Fi 7, 2.5GbE LAN and Thunderbolt 4 enables fast networking and peripheral compatibility. As an ATX board, it offers a wide range of ports and slots suitable for high-performance components and upgrades.

Suitable for

Gaming rigs requiring high CPU and memory performance
Content creation workstations (video editing, 3D rendering)
Professional desktops for software development and engineering
Custom PC builds needing multiple expansion cards and fast connectivity

Key specifications

Form factor: ATX
Processor socket: LGA 1851 (Socket V1) — Intel Core Ultra (Series 2) support
VRM design: 16+1+2 phases
Memory: 4 x DDR5 slots, up to 256 GB, up to 8800 MHz (OC)
Expansion slots: 1 x PCIe 5.0, 4 x PCIe 4.0
Connectivity: Wi‑Fi 7, 2.5GbE LAN, Thunderbolt 4
Storage: supports HDD and SSD
Weight: 2.29 kg

How to use

Install the motherboard into a compatible ATX chassis, mount an LGA 1851 CPU and attach the appropriate CPU cooler following the cooler manufacturer's instructions. Populate DDR5 memory modules into the four DIMM slots according to the motherboard's manual for dual- or quad-channel configurations. Connect storage devices (HDD/SSD) to the available SATA or M.2 interfaces and install expansion cards into PCIe slots as needed. Attach the power supply cables, front panel connectors and external I/O cables, then configure firmware settings (BIOS/UEFI) to enable desired features such as XMP/DOCP for memory overclocking and Thunderbolt settings.

Recommendations

For stable performance, use a high-quality power supply unit and an adequate CPU cooler. Update the motherboard BIOS/UEFI to the latest version before installing the operating system and drivers. Follow GIGABYTE's memory compatibility list and installation guidance to achieve reliable DDR5 overclocking and system stability.

Belangrijkste kenmerken

Digital 16+1+2+1 Phases 80A SPS VRM with Tantalum Polymer Capacitor
Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design
Intel 2x2 Wi-Fi 7 BE202 with WIFI EZ-Plug Design

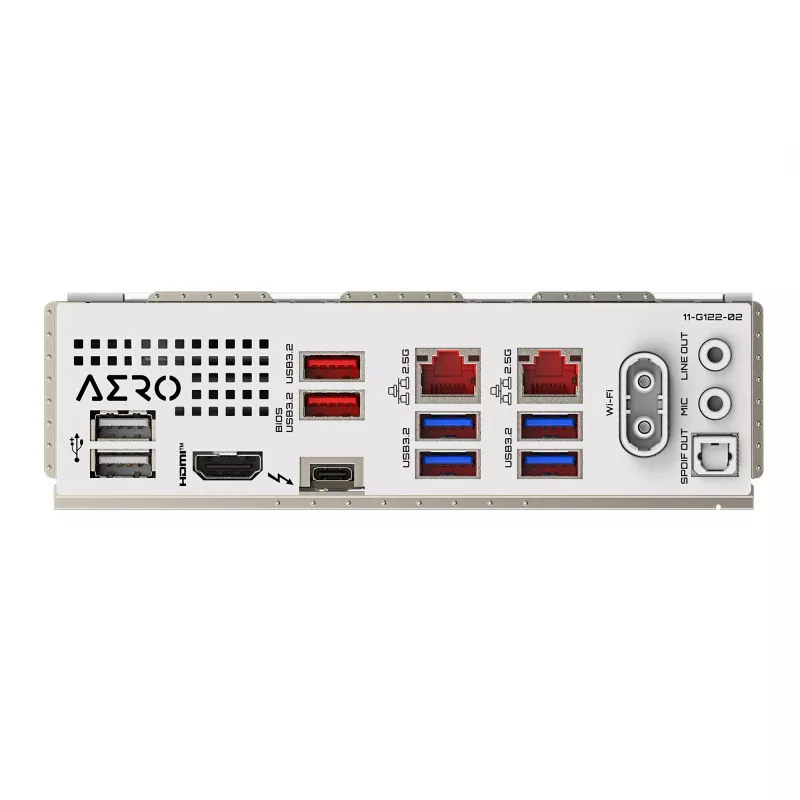

Dual Intel 2.5GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2x2 Type-C
Dual 10GbE LAN, Thunderbolt 4 Type-C, USB 3.2 Gen2x2 Type-C
Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
PC ATX Intel Z890 Express Realtek ALC1220 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 4
BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

Specificaties

12V-stroomconnector

Yes

Aantal batterijcellen

1

Aantal DisplayPorts

2

Aantal DVI-D-poorten

0

Aantal geheugenslots

4

Aantal HDMI-poorten

1

Aantal M.2 (M)-slots

5

Aantal ondersteunde harde schijven

9

Aantal ondersteunde opslagstations

4

Aantal SATA III-connectors

4

Aantal Thunderbolt-poorten

1

Aantal USB 2.0-poorten

2

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-A-poorten

4

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-C-poorten

0

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-A-poorten

2

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-C-poorten

0

Aantal VGA (D-Sub)-poorten

0

ACPI-versie

5.0

ATX-voedingsconnector (24-pins)

Yes

Audio-uitvoerkanalen

7.1 channels

Audiochip

Realtek ALC1220

Batterijen inbegrepen

Yes

Batterijtechnologie

Lithium-Manganese Dioxide (LiMnO2)

BIOS-geheugengrootte

256 Mbit

Bluetooth

Yes

Bluetooth-versie

5.4

Breedte

305 mm

Breedte verpakking

335 mm

Clear CMOS-jumper

Yes

Clear CMOS-knop

Yes

Compatibele processorserie

Intel Core Ultra (Series 2)

Component voor

PC

Desktop Management Interface (DMI)-versie

2.7

Diepte

244 mm

Diepte verpakking

270 mm

DirectX-versie

12.0

ECC-compatibiliteit

Non-ECC

EPS-stroomconnector (8-pins)

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45)-poorten

1

Garantieperiode

3 year(s)

Geheugenkanalen

Dual-channel

Gewicht

2.29 kg

Gewicht accu

3 g

Gewicht verpakking

2.61 kg

Hoogste wifi-standaard

Wi-Fi 7 (802.11be)

Hoogte

35 mm

Hoogte verpakking

80 mm

Land van herkomst

China

Lithiumgewicht per accu

0.07 g

Maximaal intern geheugen

256 GB

Meegeleverde software

Norton® Internet Security (OEM version) LAN bandwidth management software

Microfooningang

Yes

Model wifi-controller

Intel Wi-Fi 7 BE202

Moederbordchipset

Intel Z890 Express

Moederbordchipsetfamilie

Intel

Ondersteunde capaciteiten geheugenmodules

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Ondersteunde geheugenkloksnelheden

5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz

Ondersteunde geheugenkloksnelheid (max.)

8800 MHz

Ondersteunde geheugentypes

DDR5-SDRAM

Ondersteunde interfaces opslagstations

M.2, SATA III

Ondersteunde processorsockets

LGA 1851

Ondersteunde typen opslagstations

HDD & SSD

Pc-statusbewaking

Fan, Temperature, Voltage

Processormerk

Intel

Processorsocket

LGA 1851 (Socket V1)

Producten per binnendoos

1 pc(s)

Productkleur

White

RAID-niveaus

0, 1, 5, 10

RAID-ondersteuning

Yes

RGB LED-pinheader

Yes

S/PDIF-uitgang

Yes

System Management BIOS (SMBIOS)-versie

2.7

Totaal aantal SATA-poorten

4

TPM-connector

Yes

Type batterij

CR2032

Type BIOS

UEFI AMI

Type ethernetinterface

2.5 Gigabit Ethernet

Type geheugenslots

DIMM

USB 2.0-connectors

2

USB 3.2 Gen 1 (3.1 Gen 1)-connectors

1

USB 3.2 Gen 2 (3.1 Gen 2)-connectors

0

USB 3.2 Gen 2x2-poorten

1

Vormfactor moederbord

ATX

Wifi

Yes

Wifi-standaarden

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Handleiding

Document openen

Folder

Document openen

Prijsverloop van de afgelopen 6 maanden

Moederbord GIGABYTE Z890 AERO G, Intel Z890, LGA 1851, ATX

Actueel

328,56 €

Laagste

313,92 €

Hoogste

353,32 €

Wijziging 24 uur

-0,00 € 0%

Week

-2,39 € -1%

Maand

-0,62 € 0%

Onafhankelijke reviews van techmedia

techspot.comSteven2025-02-04

“Over the past few months, we've spent an unimaginable amount of time testing Z890 motherboards for latest-gen Intel CPUs, which, in hindsight, might not have been the best use of our time.”

Lees de volledige review op techspot.com →
