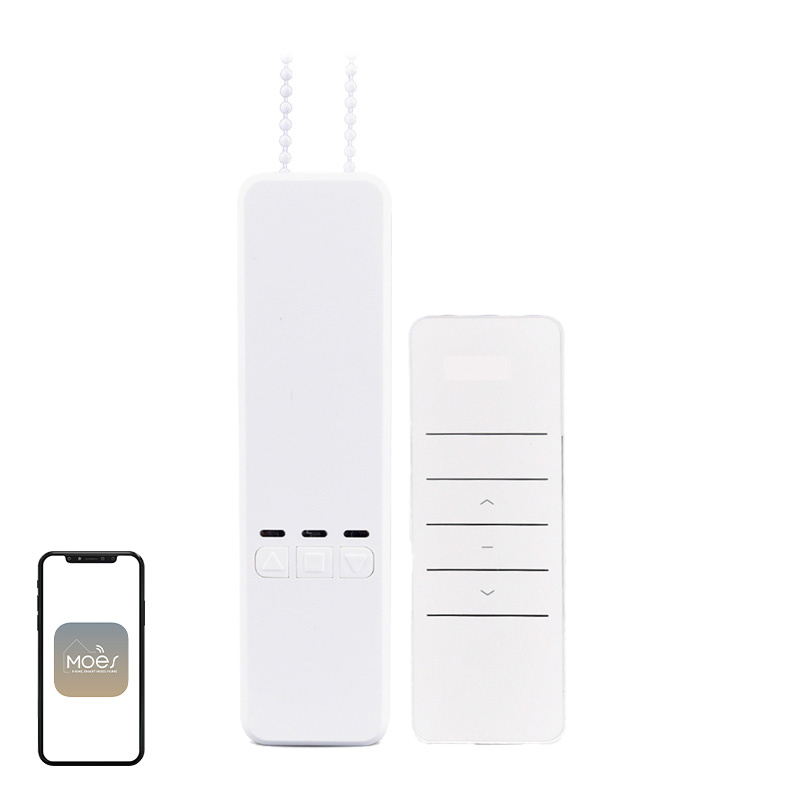

MOES WC-YH-LS WLAN rolluikmotor

With a rated torque of 1.2 Nm and a quiet operation below 40 dB, this MOES Wi-Fi roller shutter motor brings smart control to your window coverings.

Overview

The MOES WC-YH-LS is a tubular motor designed for roller shutters. It connects to your 2.4 GHz Wi-Fi network and can be controlled via the Tuya Smart or Smart Life app. Voice control is supported through Amazon Alexa and Google Assistant. The motor runs on AC 100-240V and has a rated power of 15W. It fits a 38 mm tube diameter and can handle a maximum load of 5 kg.

What stands out

• Smart app control with scheduling, timers, and group control
• Quiet operation at under 40 dB
• Compatible with Alexa and Google Assistant for voice commands
• Rated torque of 1.2 Nm for reliable lifting

Technical details

• Connectivity: Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz
• Motor type: Tubular motor
• Power supply: AC 100-240V, 50/60Hz
• Rated power: 15W
• Rated torque: 1.2 Nm
• Rated speed: 28 RPM
• Compatible tube diameter: 38 mm
• Maximum load capacity: 5 kg
• Noise level: < 40 dB
• Operating temperature: -10°C to 50°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Material: Aluminum alloy, ABS
• Protection class: IP20
• App features: Schedule, timer, group control, scene linkage

Our verdict

A compact and quiet smart motor that brings convenient app and voice control to your roller shutters.
