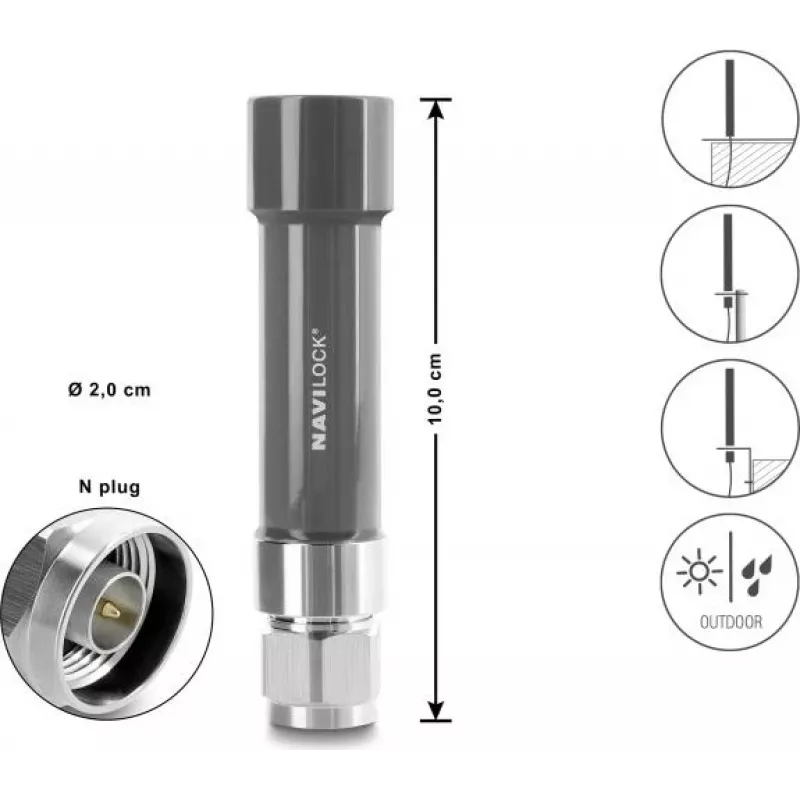

Navilock GNSS-antenne N-aansluiting 18 dB actief buiten grijs 10 cm (60738)

For installations where a patch antenna would be compromised by its enclosure, the Navilock 60738 relocates the GNSS receiver to open air while keeping the cable run short. Its 18 dB LNA and IP67 housing make it a dependable front end for fleet telematics, marine navigation, or base station timing.

Highlights

• Active GNSS antenna with 18 dB LNA gain for weak-signal environments
• Supports GPS L1, GLONASS L1, Galileo E1, and BeiDou B1 bands
• N-type female connector for low-loss, weatherproof RF connections
• IP67 waterproof and UV-resistant ABS housing for permanent outdoor mounting
• Pole mount with U-bolt included; 10 cm cable stub for direct N-male attachment

In daily use

Mount the 60738 on a pole or bracket with a clear sky view, then connect a suitable N-male cable (not included) to your receiver. The integrated LNA boosts the signal before cable losses, which is critical when the antenna is placed far from the receiver or when long cable runs are unavoidable. The grey UV-stable housing resists sun damage, and the IP67 seal keeps moisture out during heavy rain or washdowns.

Full specifications

• Antenna type: Active GNSS
• Supported systems: GPS L1, GLONASS L1, Galileo E1, BeiDou B1
• Frequency range: 1559 - 1606 MHz
• LNA gain: 18 dB
• Connector: N-type female
• Impedance: 50 Ohm
• Polarization: RHCP
• VSWR: < 2.0
• Noise figure: < 2.0 dB
• Operating voltage: 3.0 - 5.0 V DC
• Current consumption: max. 15 mA
• Waterproof rating: IP67
• Housing material: UV-resistant ABS
• Operating temperature: -40 °C to 85 °C
• Storage temperature: -40 °C to 90 °C
• Colour: Grey
• Dimensions (diameter x height): 100 mm x 100 mm
• Cable included: No
• Mounting: Pole mount (U-bolt included)

Final note

Pair the Navilock 60738 with a low-loss N-male to SMA/MCX cable for a complete outdoor GNSS solution that maintains signal integrity from antenna to receiver.
