Navigatiekabel Navilock 62907

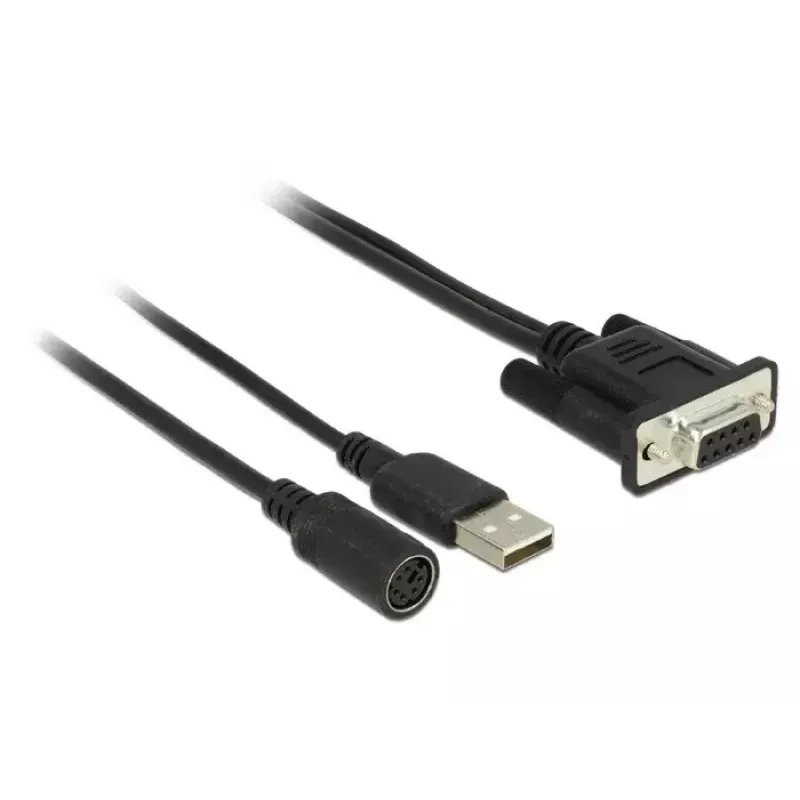

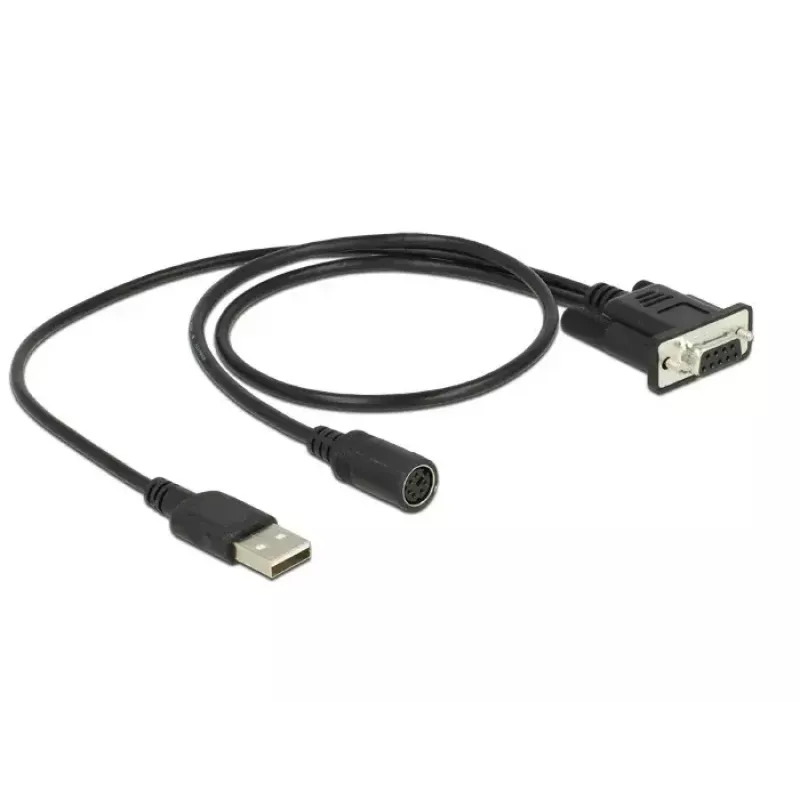

The Navilock 62907 navigator cable connects GNSS receivers with a Navilock MD6 port to devices using an RS232 SUB-D9 serial interface and supplies power via a USB-A connector. Designed for navigation equipment, the cable has a DB9 (SUB-D9) serial connector on one end, an MD6 connector for Navilock receivers, and a USB-A plug for power. The cable is black and manufactured in Taiwan.

Advantages

The cable combines data transmission over an RS232 SUB-D9 connection with power delivery through USB-A, eliminating the need for a separate power supply. Its MD6 connector ensures compatibility with Navilock MD6 GNSS receivers, and the DB9 end provides standard serial connectivity to navigation hardware. The compact design and standard connectors simplify integration with existing equipment.

Suitable for

• Connecting Navilock MD6 GNSS receivers to devices with DB9 RS232 ports
• Supplying power to receivers from a USB-A power source
• Integration with navigation systems and serial data loggers

Key specifications

• Connectors: DB9 (SUB-D9) to MD6 + USB-A
• Functions: RS232 serial data transmission and USB-A power
• Colour: Black
• Manufacturer origin: Taiwan
• Brand / MPN / EAN: Navilock / 62907 / 4043619629077

How to use

Plug the MD6 connector into the compatible Navilock GNSS receiver. Connect the DB9 (SUB-D9) connector to the RS232 serial port of your host device to transmit serial GNSS data. Insert the USB-A plug into a USB power source (computer USB port, USB power adapter, or power bank) to supply power to the receiver. Verify correct pin orientation and secure connections before powering devices.

Recommendations

Use a stable USB power source that matches the receiver's power requirements and avoid forcing connectors. For installation in vehicles or outdoor setups, secure the cable to prevent strain on connectors and protect the receiver from moisture.
