NEO TOOLS Handmatige kettingtakel 3 ton 3m

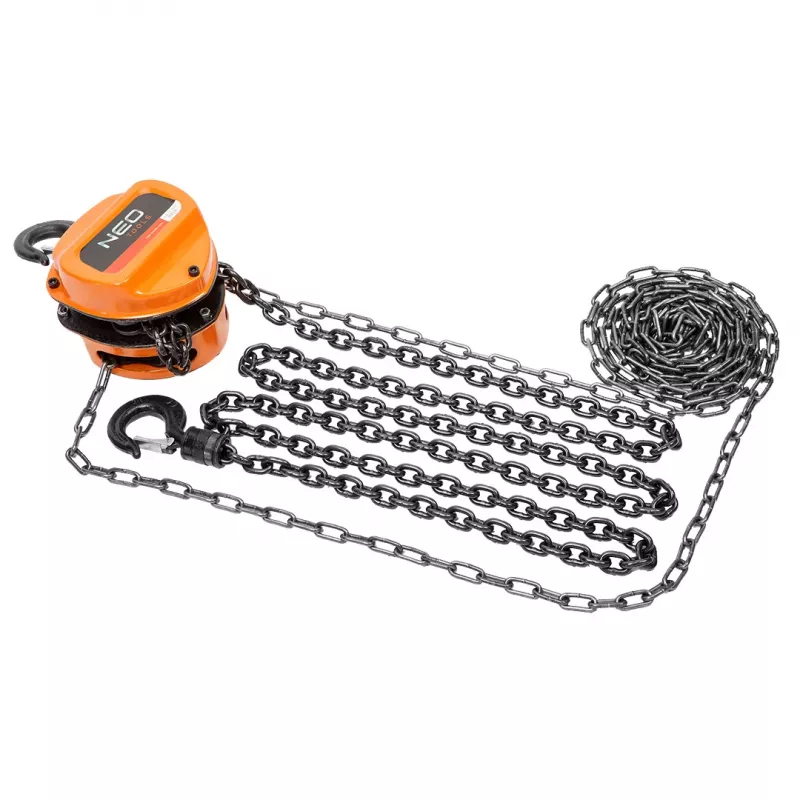

The NEO TOOLS TOP-11-762 is a robust manual hand chain hoist designed for heavy-duty lifting in industrial, construction, workshop, and automotive environments. With a rated capacity of 3000 kg (3 tons) and a standard lifting height of 3 meters, this hoist delivers reliable performance for demanding tasks. Built with a double pawl mechanical brake and efficient planetary gear system, it ensures safe and smooth operation. The forged steel swivel hooks with safety latches provide secure attachment, while the durable powder coating protects against wear and corrosion.

Advantages

High lifting capacity of 3 tons with a 3-meter lift height; manual operation eliminates the need for power supply; double pawl mechanical brake for enhanced safety; efficient planetary gear system for smooth lifting; forged steel hooks with safety latches; CE certified for quality assurance.

Suitable for

• Industrial lifting and positioning
• Construction sites
• Workshop maintenance
• Automotive repair and assembly
• Warehouse and storage operations

Key specifications

• Lifting Capacity: 3000 kg (3 Ton)
• Standard Lifting Height: 3 m
• Operating Mechanism: Manual (Hand Chain)
• Number of Load Chains: 2
• Load Chain Diameter: 8 mm
• Load Chain Material: G80 Alloy Steel
• Hand Chain Length: 3 m
• Hook Type: Forged Steel Swivel Hooks with Safety Latches
• Braking System: Double Pawl Mechanical Brake
• Housing Material: Heavy-Duty Steel
• Gear System: Efficient Planetary Gear
• Minimum Headroom: Approx. 450 mm
• Finish: Durable Powder Coating
• Safety Standard: CE Certified
• Test Load: 4500 kg (1.5x Rated Capacity)

Recommendations

For optimal performance and safety, always inspect the hoist before use and ensure the load does not exceed the rated capacity. Regular maintenance of the chain and brake system is recommended.
