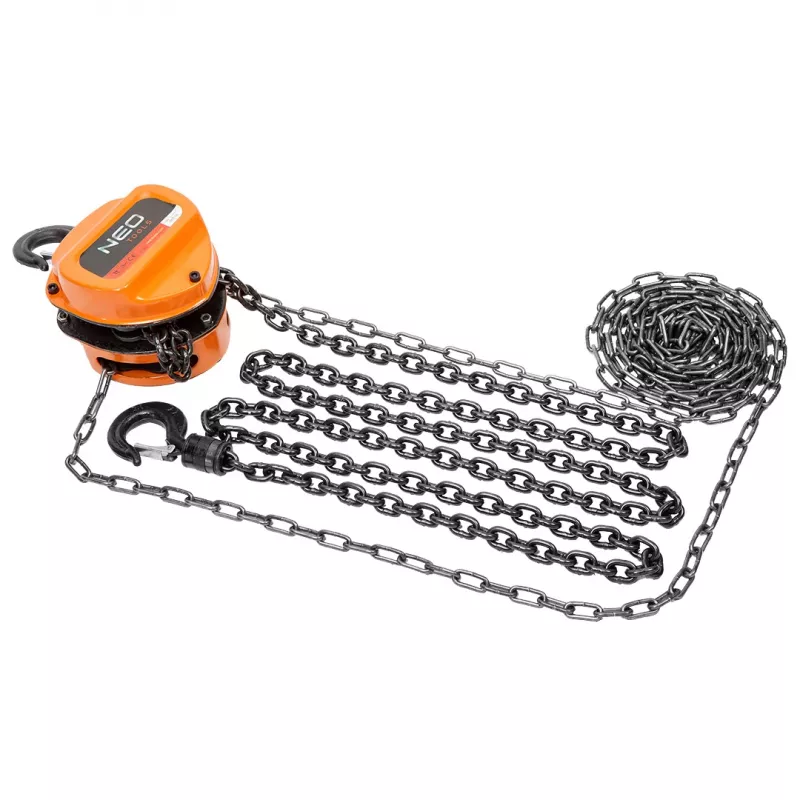

NEO TOOLS 1 ton handmatige kettingtakel 3 m met 6 mm lastketting en dubbele palrem

Lift up to 1000 kg with just 300 N of hand force thanks to the precision spur gear system and double pawl automatic brake in this NEO TOOLS chain hoist. The 3-meter G80 alloy steel load chain and forged swivel hooks with safety latches deliver reliable, controlled lifting for workshops, garages, and construction sites.

Overview

The NEO TOOLS TOP-11-760 is a manual chain hoist engineered for heavy-duty lifting tasks. With a maximum capacity of 1 ton and a standard lift height of 3 meters, it is ideal for lifting engines, machinery, and construction materials. The hoist features a single fall of 6 mm diameter load chain made from heat-treated G80 alloy steel, ensuring exceptional strength and durability. The housing is constructed from robust steel with a durable powder coating, protecting internal components from dust and impact. Sealed ball bearings reduce friction and extend service life, while the double pawl automatic brake provides positive load holding at any height.

What stands out

• 1 ton (1000 kg) lifting capacity with 3 m lift height
• Manual hand chain operation with low 300 N pulling force at full load
• G80 alloy steel load chain, 6 mm diameter, heat-treated for high strength
• Double pawl automatic brake for secure load holding
• Forged steel swivel hooks with safety latches prevent accidental disengagement
• Compact headroom of only 280 mm for use in tight spaces
• CE and GS certified with 1.5x safety factor

Technical details

• Maximum lifting capacity: 1000 kg (1 ton)
• Standard lifting height: 3 m
• Operation method: manual (hand chain)
• Load chain diameter: 6 mm
• Number of load chain falls: 1
• Minimum headroom: 280 mm
• Hand chain length: 3 m
• Gear type: spur gear system
• Load chain material: G80 alloy steel, heat-treated
• Hook type: forged steel swivel hooks with safety latches
• Braking system: double pawl automatic brake
• Housing construction: robust steel casing
• Safety factor: 1.5 times rated capacity
• Required hand force at full load: approximately 300 N
• Certifications: CE, GS
• Finish: durable powder coating
• Bearings: sealed ball bearings

Our verdict

The NEO TOOLS TOP-11-760 chain hoist combines rugged construction with smooth, safe operation. Its low pulling force and compact headroom make it a practical choice for both professional and DIY lifting applications where reliability is paramount.
