Netkabel Bachmann 665.871 oranje 5 m

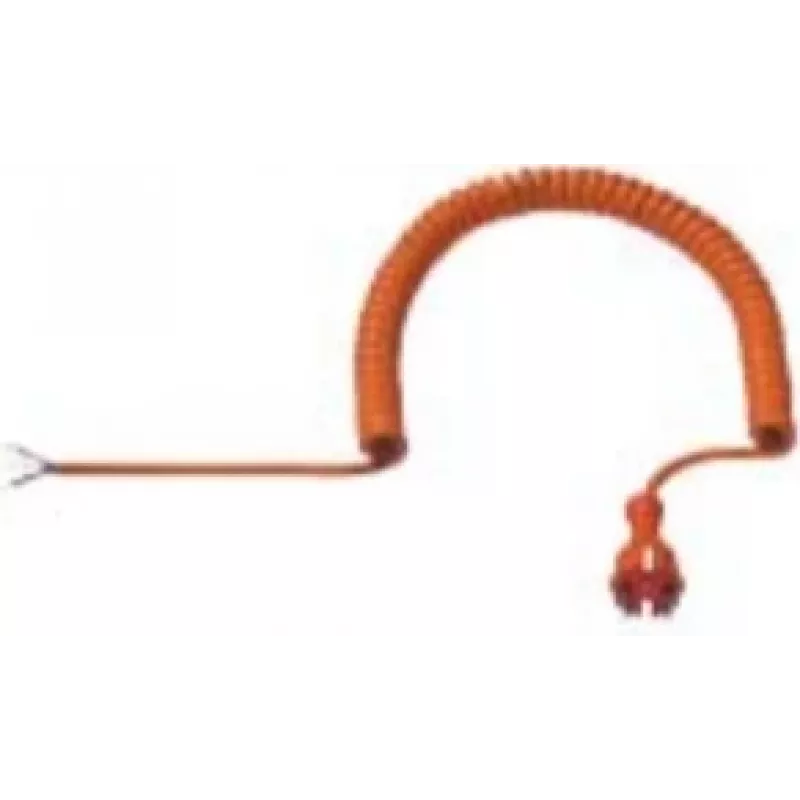

Power cable Bachmann 665.871 Orange 5 m with H07BQ-F conductor 3G 1.50 mm2, outer diameter approximately 9.5 mm, WID approx. 13 mm and WAD approx. 32 mm. One end is moulded with a 100 mm straight lead and a central plug featuring a dual earthing contact system. The other end has a 200 mm lead including 30 mm stripped conductors and fitted with end sleeves. The bright orange jacket improves visibility and identification.

Advantages

This Bachmann power cable provides a durable H07BQ-F rubber-insulated core suitable for flexible use. The moulded plug with dual earthing contacts ensures secure grounding, while the pre-stripped and sleeved conductors at the opposite end simplify safe connections. The 5 m length offers extended reach for desktop, workshop, or installation use.

Suitable for

• Powering desktop computers and peripherals
• Workshop equipment and machinery with matching plug requirements
• Temporary or permanent installations requiring a visible, orange cable

Key specifications

• Model: Bachmann 665.871
• Length: 5 m
• Cable type: H07BQ-F, 3G 1.50 mm2
• Outer diameter: approx. 9.5 mm
• WID: approx. 13 mm; WAD: approx. 32 mm
• End 1: 100 mm straight moulded lead with central plug and dual earthing contact
• End 2: 200 mm lead including 30 mm stripped conductors with end sleeves
• Colour: Orange
• MPN: 665.871; EAN: 4016514006533

How to use

Connect the moulded central plug (End 1) to a compatible mains inlet, ensuring the dual earthing contact engages correctly. Use the stripped and sleeved conductors (End 2) to terminate or connect to equipment terminals according to the device manufacturer’s wiring scheme and local electrical regulations. Verify connections are tight and insulated before applying power.

Recommendations

Inspect the cable and connectors before each use for damage to the jacket, exposed conductors, or loose sleeves. Use this cable only with equipment that matches the cable’s conductor size and earthing arrangement. Avoid routing the cable across sharp edges or heat sources; secure and protect the cable in permanent installations. For fixed wiring or installations requiring certification, have a qualified electrician perform the connection.
