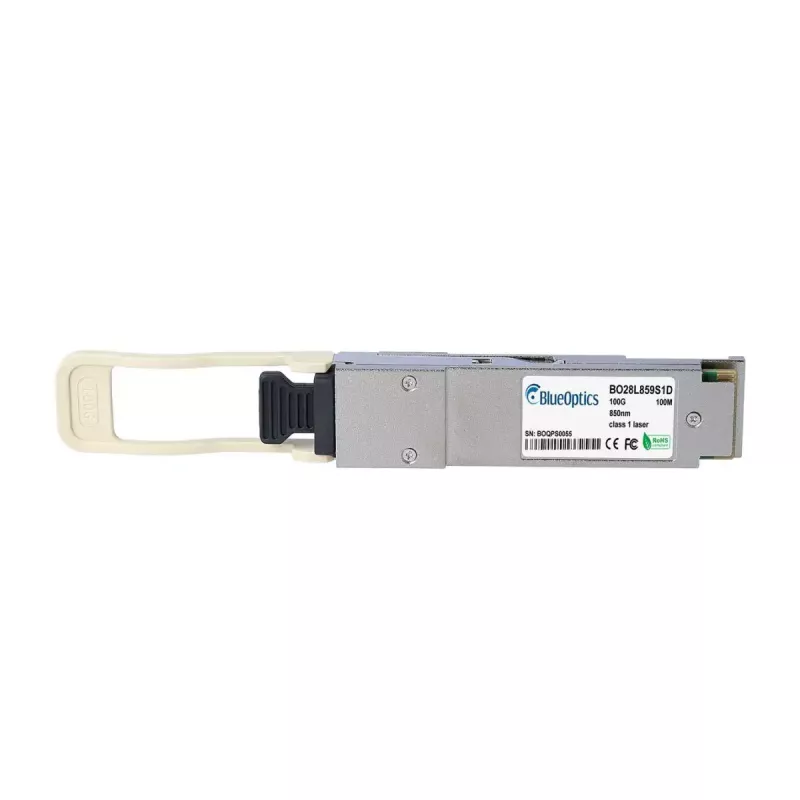

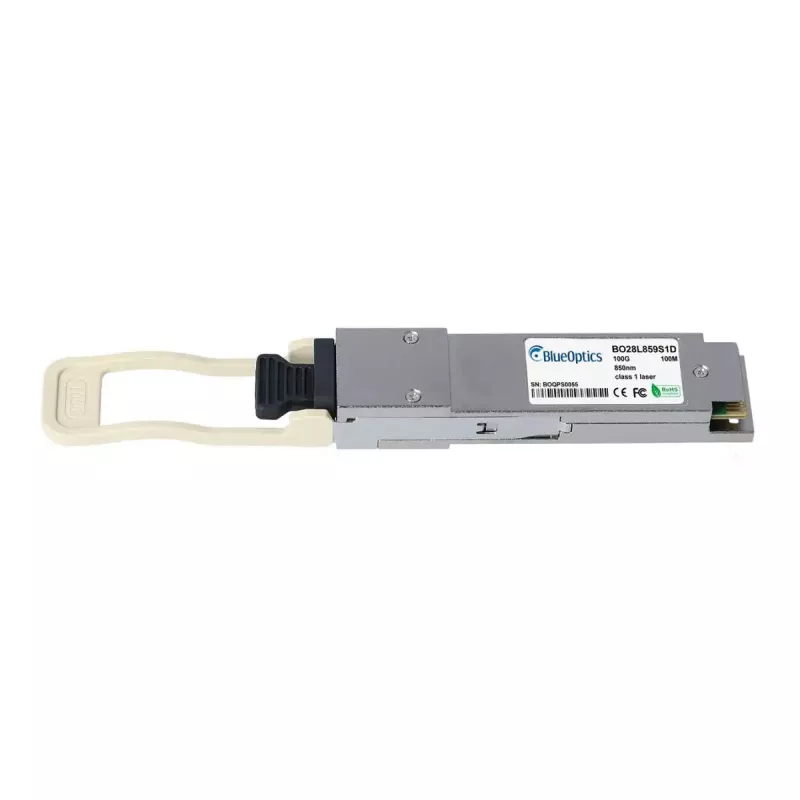

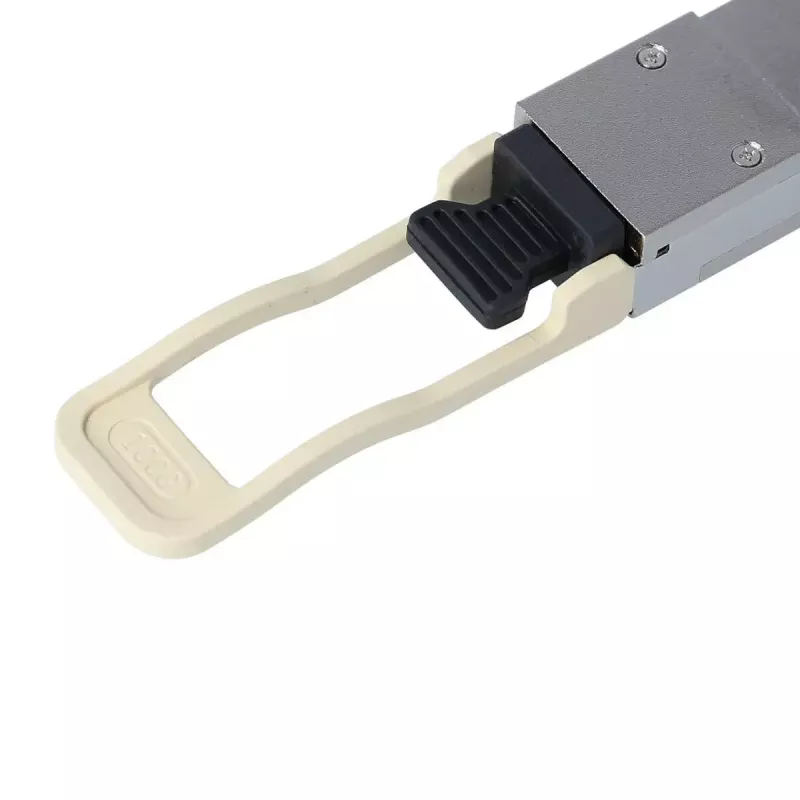

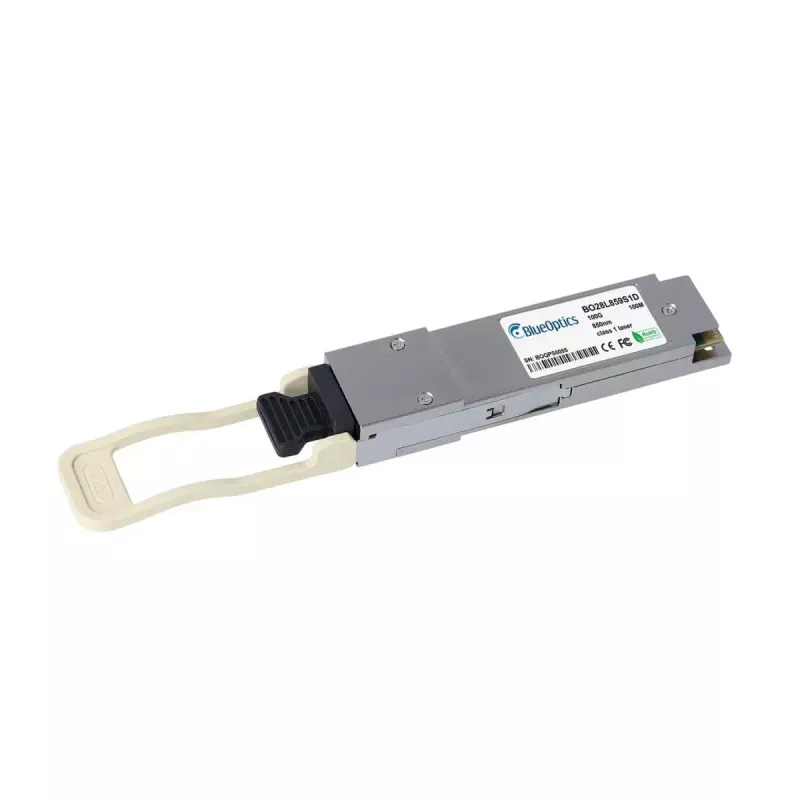

Netwerk-transceivermodule BlueOptics 3HE10551AA-BO glasvezel 100000 Mbit/s QSFP28

The BlueOptics 3HE10551AA-BO is a QSFP28 fiber optic transceiver module designed for 100000 Mbit/s (100G) links. Constructed with a metal housing in white and silver tones and weighing 40 g, it supports multi-mode fiber connections and uses an MPO/MTP interface compatible with QSFP28 ports. The module is built to industry MSA standards, offers Digital Diagnostics Monitoring (DDM) for real-time status information, and has a high mean time between failures (MTBF) for continuous operation.

Advantages

The transceiver provides high data throughput up to 100 Gbit/s over multimode fiber with 850 nm transmitter and receiver wavelengths, enabling short-reach high-speed connections. Compliance with QSFP28 MSA ensures electrical and mechanical interoperability across supporting hardware. Integrated digital diagnostics allow monitoring of supply voltage, laser bias, transmit/receive power and temperature, simplifying maintenance and troubleshooting. The metal housing improves durability while the lightweight design facilitates hot-swap installation.

Suitable for

• 100G Ethernet links in data center aggregation and spine switches
• High-speed connections between switches, routers and storage systems
• Short-reach multimode fiber links up to typical MPO/MTP-supported distances
• Network upgrades requiring QSFP28 form-factor transceivers

Key specifications

• Interface type: QSFP28 (MPO/MTP compatible)
• Maximum data rate: 100000 Mbit/s (100 Gbit/s)
• Optical wavelengths: 850 nm transmitter and receiver (multimode)
• Form factor: QSFP28 pluggable module
• Material and colour: metal housing, white and silver
• Weight: 0.04 kg
• Digital Diagnostics Monitoring (DDM/DOM) supported
• Designed to industry MSA standards for interoperability
• Typical short-reach multimode fiber application (MPO/MTP connector)

How to use

Install the BlueOptics QSFP28 module into a compatible QSFP28 port on a switch, router or other networking device while the host device supports QSFP28 optics and, if required, DDM. Connect the module to a multimode MPO/MTP fiber patch cord or a patch panel that supports MPO/MTP termination. The module supports hot-plug insertion; follow standard precautions for electrostatic discharge and ensure the device firmware or driver supports third-party transceivers if the host enforces vendor checks.

Recommendations

For optimal performance, pair the transceiver with quality multimode MPO/MTP patch cords and ensure connector cleanliness. Verify host compatibility and enable DDM monitoring in the network management system to track link health. Use within recommended short-reach multimode distances and follow manufacturer guidelines for installation and ESD protection.
