Netwerkantenne DeLOCK 12707

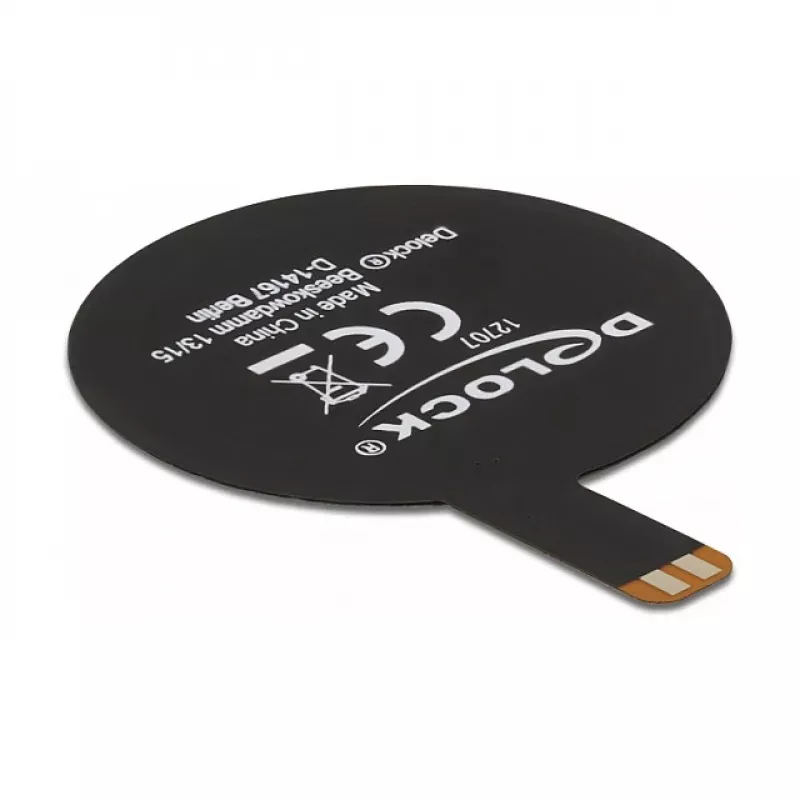

The DeLOCK 12707 network antenna is designed for internal use with NFC 13.56 MHz systems. With an impedance of 50 Ω and a compact, low-profile housing (40 mm × 54.5 mm × 0.27 mm), this black antenna is intended for integration into networking and NFC-enabled devices where space is limited. The product is supplied as a single unit in a polybag.

Advantages

The antenna supports the NFC 13.56 MHz frequency band and provides a stable 50 Ω impedance for compatibility with standard NFC front-ends. Its very slim form factor and small footprint make it suitable for tight installation spaces, while the black finish allows unobtrusive mounting within devices.

Suitable for

• Internal NFC modules and readers operating at 13.56 MHz
• Compact networking devices and embedded systems
• Devices requiring a low-profile, discreet antenna

Key specifications

• Frequency band: 0.01356 GHz (13.56 MHz)
• Impedance: 50 Ω
• Dimensions: 40 mm (W) × 54.5 mm (D) × 0.27 mm (H)
• Colour: Black
• Package: 1 unit in polybag
• Brand: DELOCK, MPN: 12707, EAN: 4043619127078

How to use

Install the antenna inside the device near the NFC module or reader following the device manufacturer’s mechanical and RF layout guidelines. Ensure a proper 50 Ω connection to the NFC front-end or matching network and avoid placing large metal objects directly adjacent to the antenna area to prevent detuning. Verify antenna performance through RF testing after installation.

Recommendations

For best results, position the antenna with a clear area around it and keep at least several millimetres distance from large conductive components. If integration issues occur, consult the device’s RF layout guidelines and perform impedance matching as required.
