Netwerkantenne DeLOCK 88982

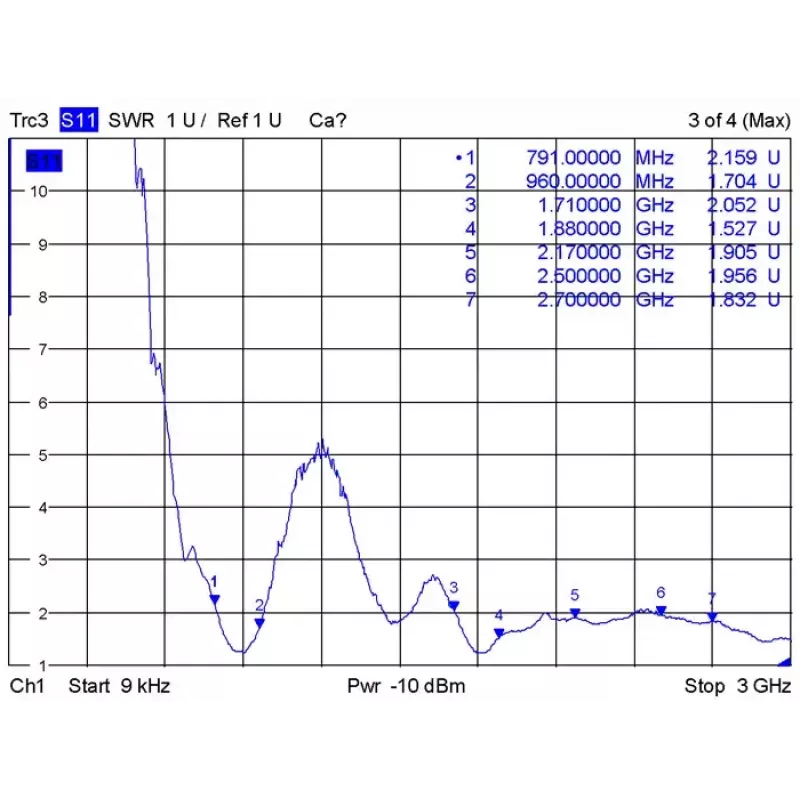

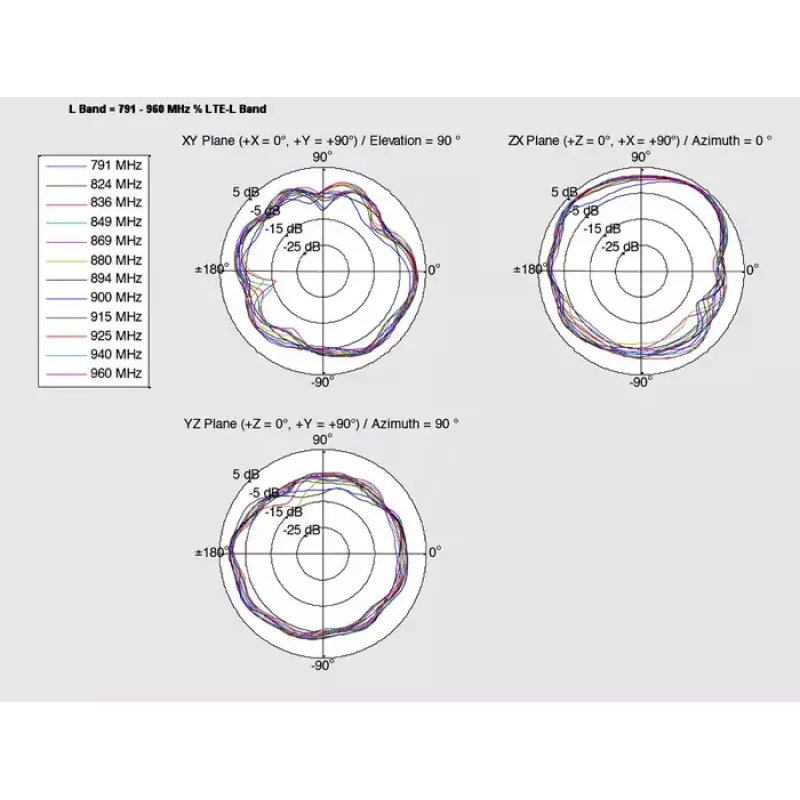

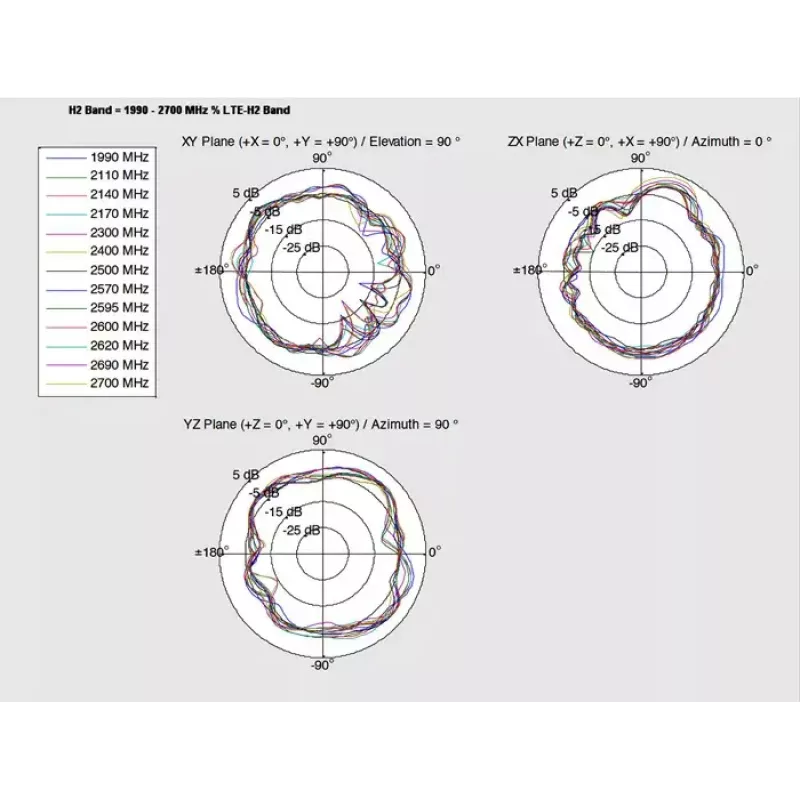

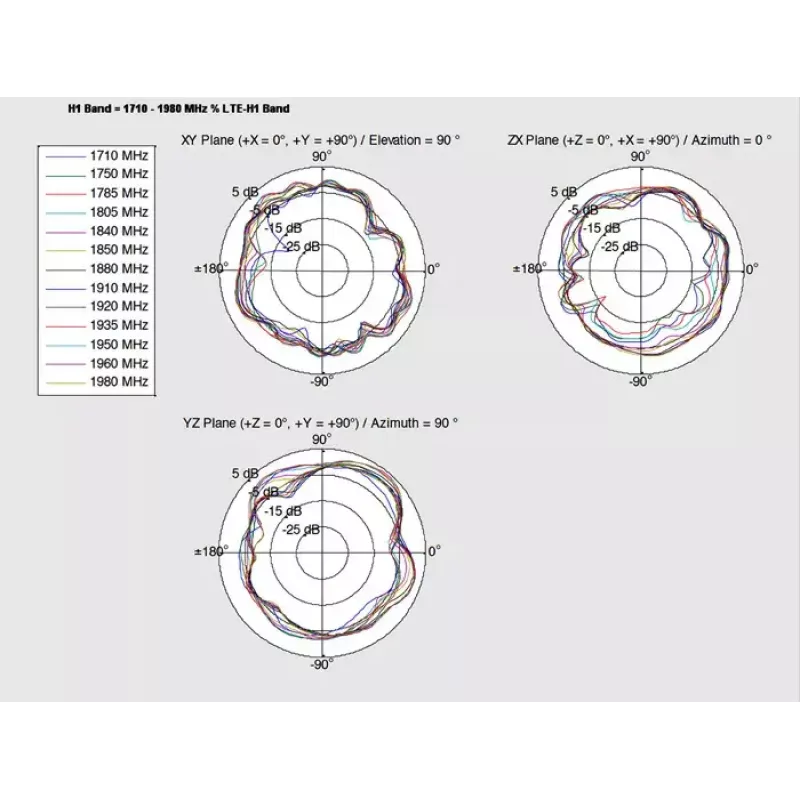

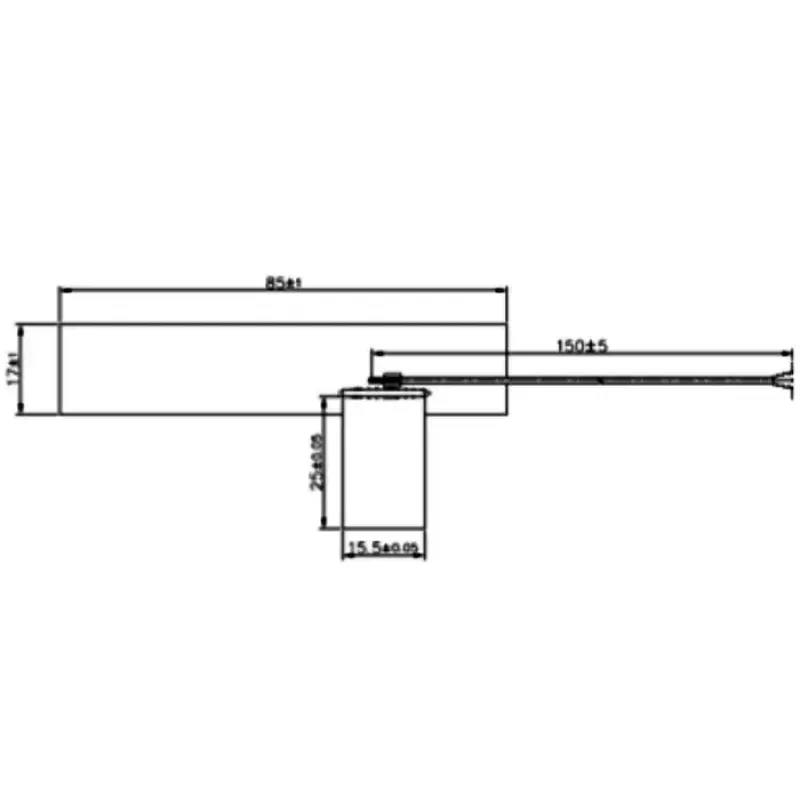

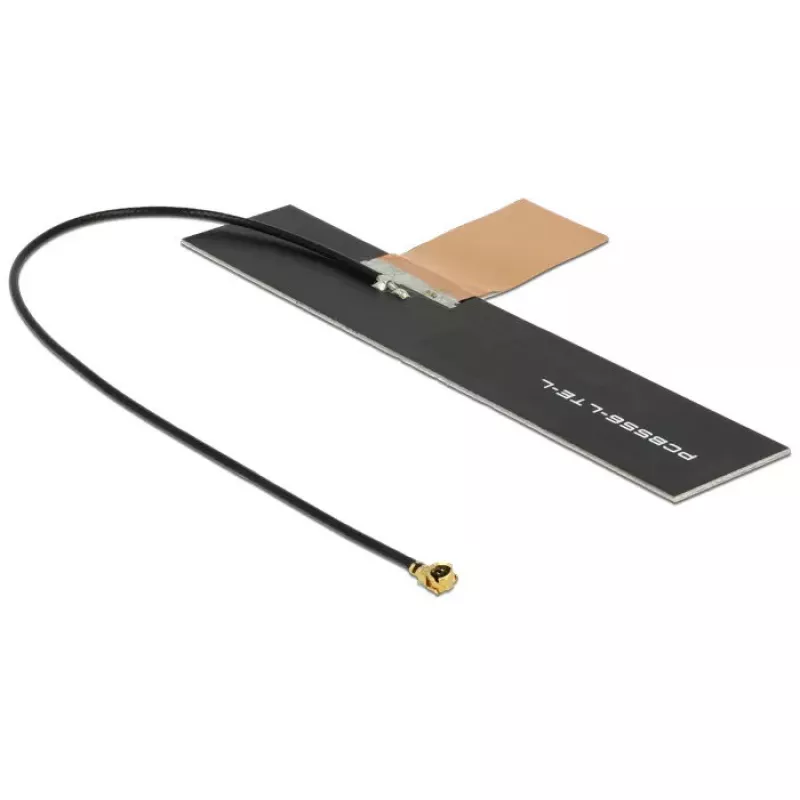

The Network Antenna DeLOCK 88982 is a compact LTE/Wi‑Fi antenna with an MHF / U.FL compatible connector for easy integration into devices that require a small board-level RF connection. It covers multiple frequency bands (0.791–0.96 GHz, 1.71–2.17 GHz and 2.5–2.7 GHz), provides up to 2 dBi gain and includes a 0.15 m cable for flexible placement. Its low-profile dimensions (85 × 17 × 0.8 mm) make it suitable for integration in space-constrained installations.

Advantages

The antenna’s multi-band design supports a range of LTE and wireless applications without requiring multiple antennas. A maximum gain of 2 dBi improves signal reception and transmission compared with an internal trace antenna, while the MHF / U.FL compatible connector ensures compatibility with many wireless modules. The short coaxial cable allows straightforward routing inside devices or enclosures.

Suitable for

Key specifications

How to use

Connect the antenna’s MHF / U.FL compatible plug to the matching socket on your wireless module or board. Route the 0.15 m cable and position the flat antenna panel where it has the least obstruction from metal and other RF‑blocking materials to maximise performance. Ensure the connector is fully seated and avoid sharp bends in the cable to prevent damage.

Recommendations

For best results, place the antenna with the broad face oriented toward the expected signal source and keep at least a few centimetres clearance from large metal parts. Verify module compatibility with an MHF / U.FL connector and ensure the operating frequency band matches your network provider or device requirements.
