Netwerkkabel EFB Elektronik K5535GR.30 RJ-45 Cat6a 30 m grijs

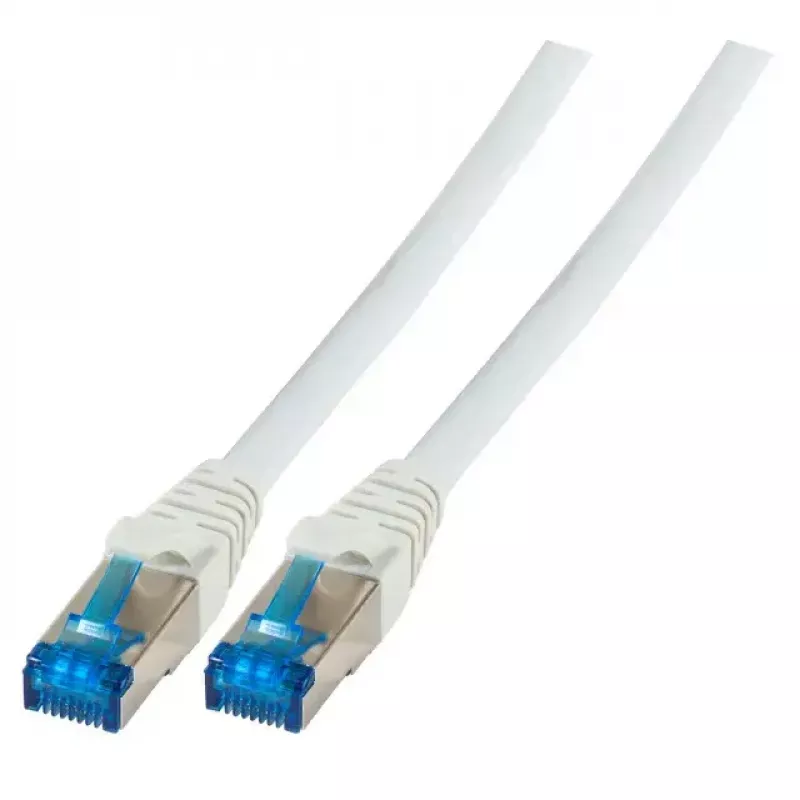

The EFB Elektronik K5535GR.30 is a 30 m Cat6a S/FTP networking patch cable designed for 10 Gigabit Ethernet. It features shielded RJ45 plugs with 50 μ" gold plating and meets IEC 60603-7-51 connector specifications. The cable construction is S/FTP (4 x 2 AWG26/7) with an overall PVC jacket and a diameter of approximately 6.5 mm. It is coded for TIA/EIA 568B wiring and tested for flame retardance to IEC 60332-1. Each cable is individually tested and supplied with a serial number marker and a measuring protocol for full traceability.

Advantages

The shielded S/FTP design reduces crosstalk and electromagnetic interference, supporting reliable 10GBase-T performance up to the Cat6a specification and a bandwidth of 500 MHz. Molded strain relief with latch protection improves connector durability and reduces the risk of damage at connection points. Individual testing with a serial number and measuring protocol ensures quality control and allows full traceability of each unit.

Suitable for

• 10 Gigabit Ethernet connections in data centers and server rooms
• High-speed wired LAN installations in offices and enterprise environments
• Structured cabling where TIA/EIA 568B termination is required
• Applications requiring shielding against EMI/RFI

Key specifications

• Length: 30 m
• Standard: Cat6a, Class EA, 500 MHz
• Connectors: 2 × RJ45 shielded, IEC 60603-7-51
• Contacts: 50 μ" gold plated
• Cabling: S/FTP 4 × 2 × AWG26/7, PVC jacket, Ø ≈ 6.5 mm
• Wiring: TIA/EIA 568B coded
• Flame retardance: IEC 60332-1
• Compliance: Individual test with serial number and measuring protocol

How to use

Install the EFB Elektronik K5535GR.30 by plugging the RJ45 connectors into the corresponding Ethernet ports on network devices, switches or patch panels. Ensure the molded strain relief and latch are fully engaged to secure the connection. Route the cable to avoid sharp bends and keep it away from high-power electrical cables to minimize interference. Terminate both ends following TIA/EIA 568B for compatibility with structured cabling installations.

Recommendations

For optimal performance, use this Cat6a S/FTP cable in environments that require 10GBase-T speeds and shielding against EMI. Maintain bend radius recommendations (typically 4× cable diameter) and avoid prolonged exposure to direct sunlight or extreme temperatures. Refer to your network equipment specifications to confirm supported data rates and connector requirements.
