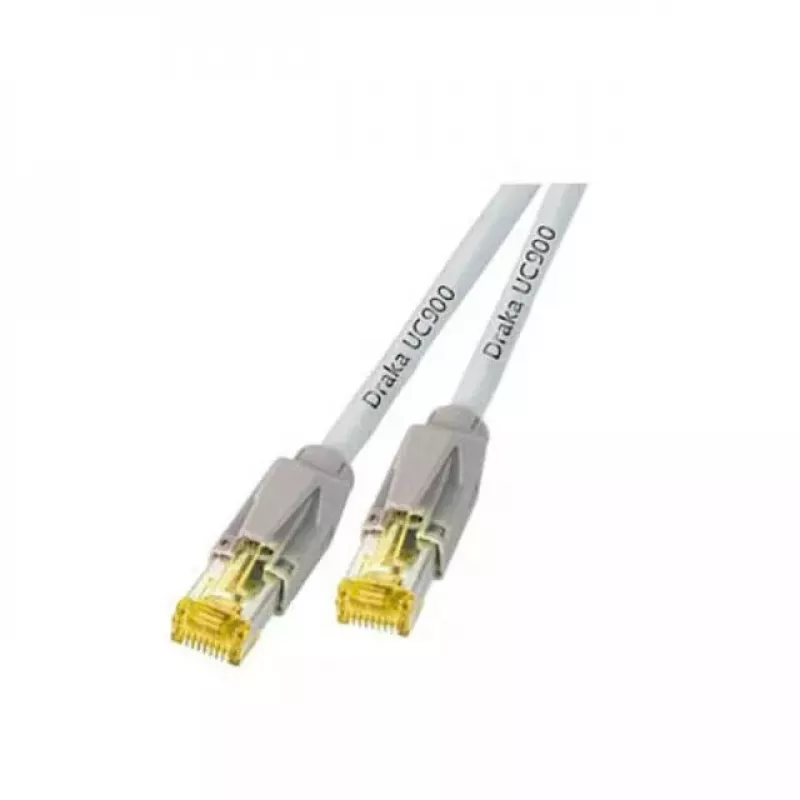

Netwerkkabel EFB Elektronik K8560WS.30 RJ-45 Cat6a 30 m wit

The EFB Elektronik K8560WS.30 is a 30 m white Cat6a networking cable designed for high-speed 10 Gigabit Ethernet connections. It uses S/FTP construction with individually foil-shielded pairs and an overall braid, supports frequencies up to 500 MHz and is terminated with two shielded Hirose TM31 RJ45 plugs compliant with IEC 60603-7-51. The cable conforms to TIA/EIA 568B wiring and features low-smoke, halogen-free materials with flame retardant properties.

Advantages

This Cat6a cable provides stable 10GBase-T performance with reduced crosstalk and electromagnetic interference due to its S/FTP PiMF shielding and AWG27/7 stranded conductors. The shielded Hirose TM31 RJ45 plugs ensure reliable, grounded connections and the mounted strain relief boots with latch protection improve connector durability during installation and use. Compliance with IEC and TIA/EIA standards ensures predictable behaviour in professional network environments.

Suitable for

• 10 Gigabit Ethernet uplinks and switches
• Data centers, server rooms and network cabinets
• High-bandwidth workstations and media streaming
• Structured cabling installations following TIA/EIA 568B

Key specifications

• Length: 30 m
• Category: Cat6a, 500 MHz
• Connector type: 2 x Hirose TM31 RJ45 shielded (IEC 60603-7-51)
• Construction: S/FTP (4 x 2 x AWG27/7, PiMF), Ø = 5.9 mm
• Wiring: TIA/EIA 568B coded
• Data rate: up to 10000 Mbit/s (10GBase-T)
• Fire and smoke: IEC 60332-1 flame retardant, IEC 60754-2 halogen-free, IEC 61034 low smoke
• Colour: White

How to use

Connect the RJ45 plugs to the corresponding ports on your networking devices, ensuring that shielded ports or properly grounded patch panels are used to maintain the effectiveness of the cable shielding. Route the cable avoiding sharp bends and excessive tension; the mounted strain relief boot helps protect the connector during handling. For structured cabling, follow TIA/EIA 568B termination and testing procedures to verify performance.

Recommendations

Use this cable for short to medium runs up to 30 m in professional and home network environments where 10GBase-T performance and minimized interference are required; ensure shielding is grounded at least at one end for optimal EMI protection.
