Netwerkkabel EQUIP 404563 Cat7a S/FTP (S-STP) 1000 m, geel, 10GBase-T

The EQUIP 404563 Cat7a S/FTP (S-STP) network cable is a 1000 m yellow installation cable designed for high-performance networking and 10GBase-T deployments. With robust S/FTP shielding and LSZH materials, it delivers high data throughput, reduced interference and increased safety in installations that require long cable runs and reliable connectivity.

Advantages

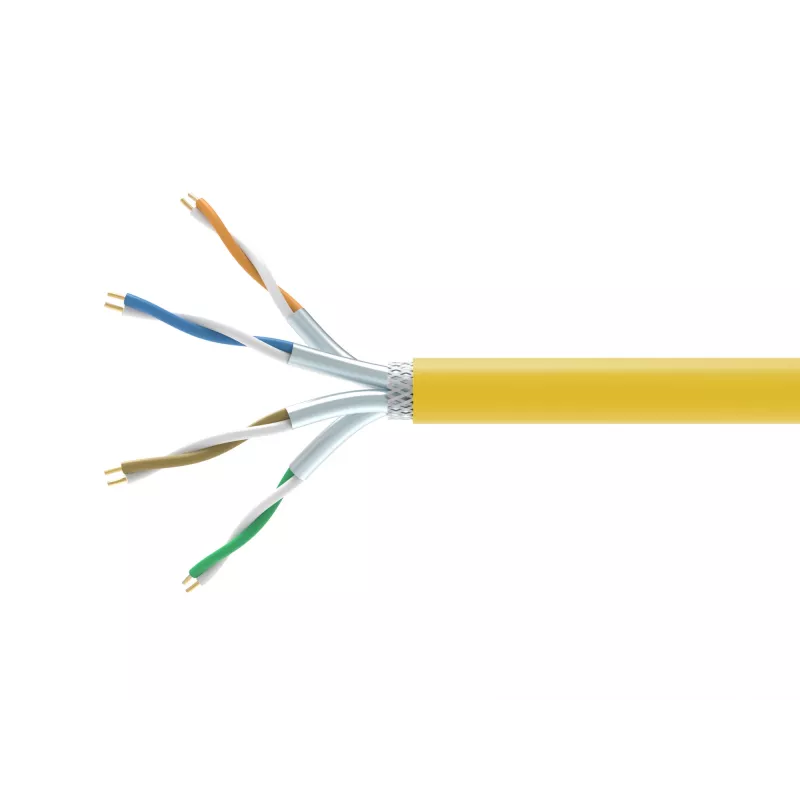

The S/FTP (Shielded Foiled Twisted Pair) construction provides superior protection against crosstalk and external electromagnetic interference (EMI). LSZH (Low Smoke Zero Halogen) insulation minimizes smoke and hazardous gases in case of fire, and the cable meets CPR Dca fire-resistance classification. Support for 10 Gbit/s transmission and Power over Ethernet (PoE) makes the cable suitable for modern structured cabling needs.

Suitable for

• Structured cabling in data centres and server rooms
• Office and commercial network installations with long cable runs
• 10GBase-T high-speed Ethernet networks
• Environments requiring reduced EMI/RFI and higher fire safety

Key specifications

• Length: 1000 m
• Cable category: Cat7a S/FTP (S-STP)
• Conductor: solid bare copper, AWG 22/1
• Transmission frequency: up to 1500 MHz
• Data rate: up to 10 GBit/s (10GBase-T)
• Insulation: LSZH (Low Smoke Zero Halogen)
• CPR classification: Dca-s2,d2,a1
• PoE (Power over Ethernet) support
• Colour: yellow (RAL1021)

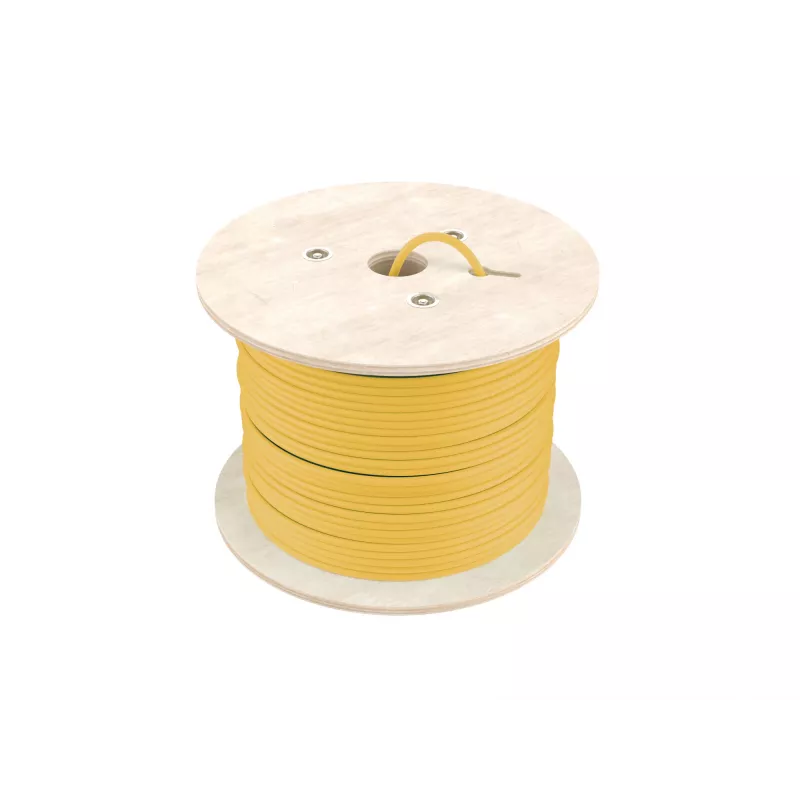

• Packaging: wooden drum
• Weight (approx.): 70 kg

How to use

Install the EQUIP Cat7a S/FTP cable as part of structured cabling runs for network racks, patch panels and outlet terminations. Strip and terminate the cable using appropriate Cat7a-compatible keystone jacks or shielded connectors, ensuring the foil and overall shield are properly grounded to maintain shielding effectiveness. The cable is supplied without connectors and is intended for permanent installation on a wooden drum.

Recommendations

For optimal performance, avoid sharp bends and excessive pulling tension during installation. Maintain recommended bend radius and follow local electrical and fire-safety regulations. Use certified Cat7a termination components and ensure proper grounding of the shield for best EMI protection.
