Netwerkkabel Lanberg LCF6-30CU-0305-BK RJ45 Cat6 305 m zwart

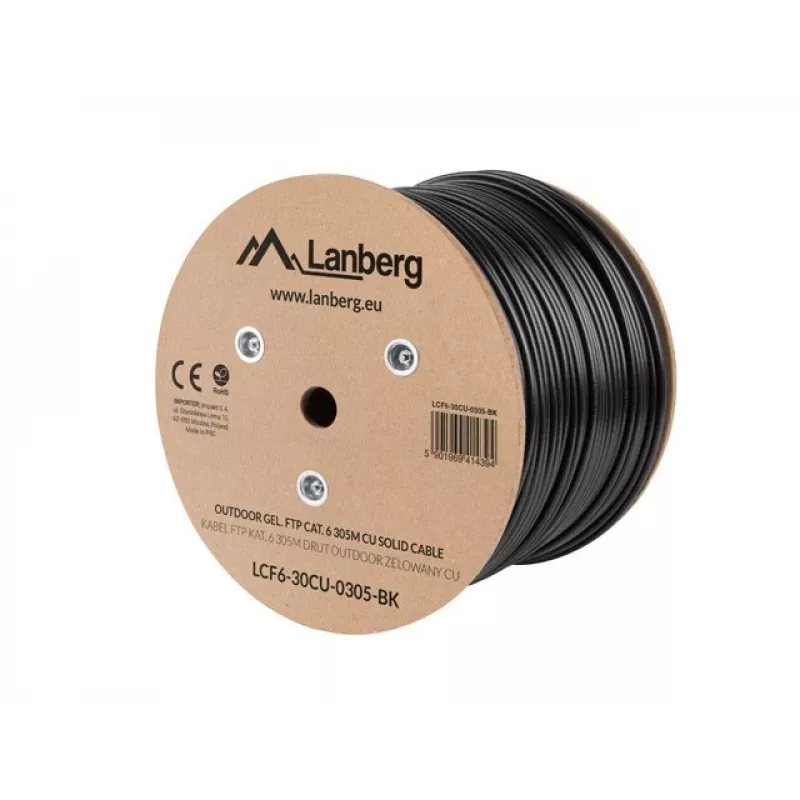

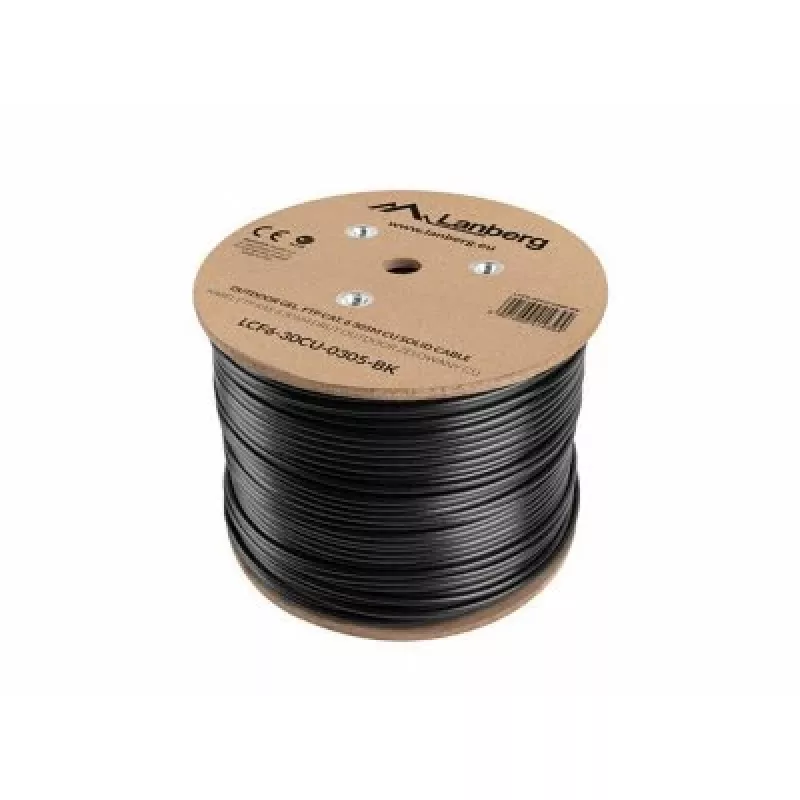

The Lanberg LCF6-30CU-0305-BK is a Cat6 FTP (shielded) gel-filled outdoor LAN cable with a length of 305 m. It uses 100% bare copper conductors (AWG 23, 4*2*0.57 mm) with solid single-wire stranding, HDPE conductor insulation and an outer PE jacket in black (RAL9004). The cable includes a printed metre counter along its length and is specified for operation up to 250 MHz.

Advantages

This shielded Cat6 cable provides improved protection against electromagnetic interference thanks to FTP shielding and gel filling for outdoor use. Solid 100% copper conductors ensure low resistance and reliable signal transmission, while the printed metre markings simplify installation. The cable’s outer PE jacket and temperature ratings make it suitable for outdoor installation and longer working distances.

Suitable for

• Outdoor and indoor Ethernet installations requiring Cat6 performance
• Data networks, structured cabling for offices and homes
• Applications sensitive to interference where shielding is needed

Key specifications

• Type: Cat6 FTP (shielded), gelled outdoor
• Length: 305 m
• Conductor: CU 100% bare copper, AWG 23 (4*2*0.57 mm), solid single-wire
• Conductor insulation: HDPE, 0.93 mm
• Outer jacket: PE, diameter 7.21 mm, color Black (RAL9004)
• Frequency rating: up to 250 MHz
• Conductor resistance (20°C, max): 20–36 Ω / 305 m
• Pair-to-ground capacitance: < 330 pF / 100 m
• Characteristic impedance: 100 Ω (±15)
• Temperature range: storage/transport 0–60 °C, operating -20–70 °C
• Working distance: 180 m

How to use

Run the cable along the planned route, observing local regulations for outdoor cabling and avoiding sharp bends. Use appropriate outdoor-rated connectors and glands when terminating the FTP cable to maintain shielding and weather protection. Cut and strip the cable carefully to preserve the conductor insulation and shielding; follow standard RJ45 termination procedures for Cat6 to achieve expected performance up to 250 MHz.

Recommendations

The cable is intended for outdoor and indoor installations where Cat6 performance and shielding are required. For best results, keep cable runs within the specified working distance, install surge protection where appropriate, and ensure correct termination to preserve shielding and signal integrity.
