Netwerkkabelhaspel InLine Harting Cat.6A RJ-45 50m zwart

IP67 connections with HARTING PushPull technology:The robust RJ45 metal connectors at both cable ends ensure reliable network connections in damp, dusty or harsh environments.
Industrial-grade protection thanks to PUR jacket:Resists abrasion, UV radiation, bending and pulling; ideal for outdoor use at events, machines or mobile workstations.
Gigabit data transmission with EMC protection:Cat.6A S/FTP cabling with 23AWG copper conductors and Fluke test up to 10GBase-T offers the highest transmission quality even with electromagnetic interference.
PoE++-capable for maximum power supply:Supports modern end devices such as IP cameras, LED systems or industrial sensors - power and data via a single cable.

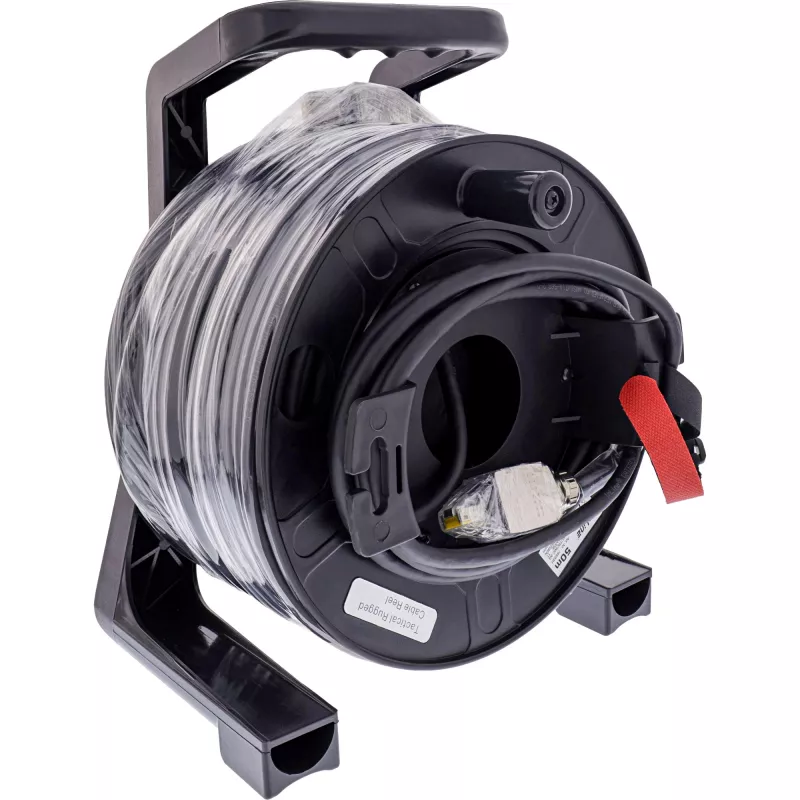

Reliable use with IP67 coil:The pre-assembled cable reel provides mechanical and electrical protection – for efficient and fast installation on the move or on site.

The InLine® Cat.6A network cable reel with HARTING PushPull RJ45 connectors has been specially developed for outdoor use and industrial applications. The cable reel offers robust network connections under high loads, difficult environmental conditions and maximum security. Thanks to push-pull metal connectors (V14, IP67) on both sides with an integrated locking mechanism, connections can be realised reliably and quickly even in confined environments.
The double-shielded Cat.6A S/FTP cable with 23AWG copper conductors is PUR-coated, abrasion-resistant, UV-resistant and can withstand even heavy loads such as bending or pulling. It supports PoE, PoE+ and PoE++ as well as data rates up to 10GBase-T (Fluke Channel tested) - ideal for supplying power and data to modern outdoor components.
The IP67 cable reel is lightweight, portable and pre-installed – suitable for industrial maintenance, mobile networks, security applications, event technology or emergency communications. Developed for system houses, IT service providers, network technicians and event organisers who rely on reliable network connections under the toughest conditions.

Category: Cat.6A S/FTP
Conductor material: Pure copper, 4x2x23AWG
Sheath material: PUR, UV & abrasion resistant
Outlet diameter: 7.8 ± 0.20 mm

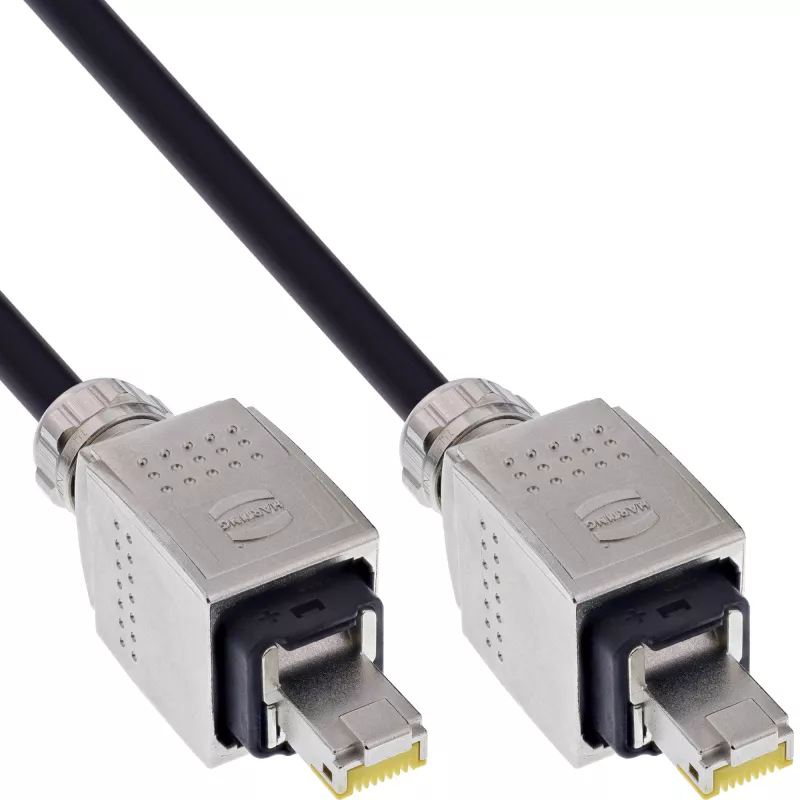

Connector: RJ45 HARTING PushPull (V14), metal, on both sides
Protection class: IP67 for cable, plug and reel
&Transmission: Up to 10GBase-T, Fluke Channel tested
PoE support: PoE, PoE+, PoE++
Nominal voltage: 30 V
Colour: black

InLine Network cable reel IP67 Outdoor PUR Harting, Cat.6A S/FTP, 50m. Cable length: 50 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Black

How to use

Unwind the required length of cable from the reel and connect the RJ-45 connectors to the corresponding network ports. Ensure the HARTING PushPull connectors are fully engaged until the locking mechanism is secured to maintain IP67 protection. Route the cable to avoid sharp edges and excessive tension; if used outdoors, check that connector seals are clean and properly seated before exposure to water or dust.

Recommendations

For long-term outdoor or industrial installations, mount or secure the reel to prevent uncontrolled unwinding and protect the cable path from extreme mechanical abrasion. When using PoE or higher power classes, verify connected equipment compatibility and follow standard site safety procedures.
